Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.7 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.4 Removing the Chassis Cover.
Step 6 Press the latches on both sides of the fan module, and slowly lift it out of the slot. See Figure
3-10.

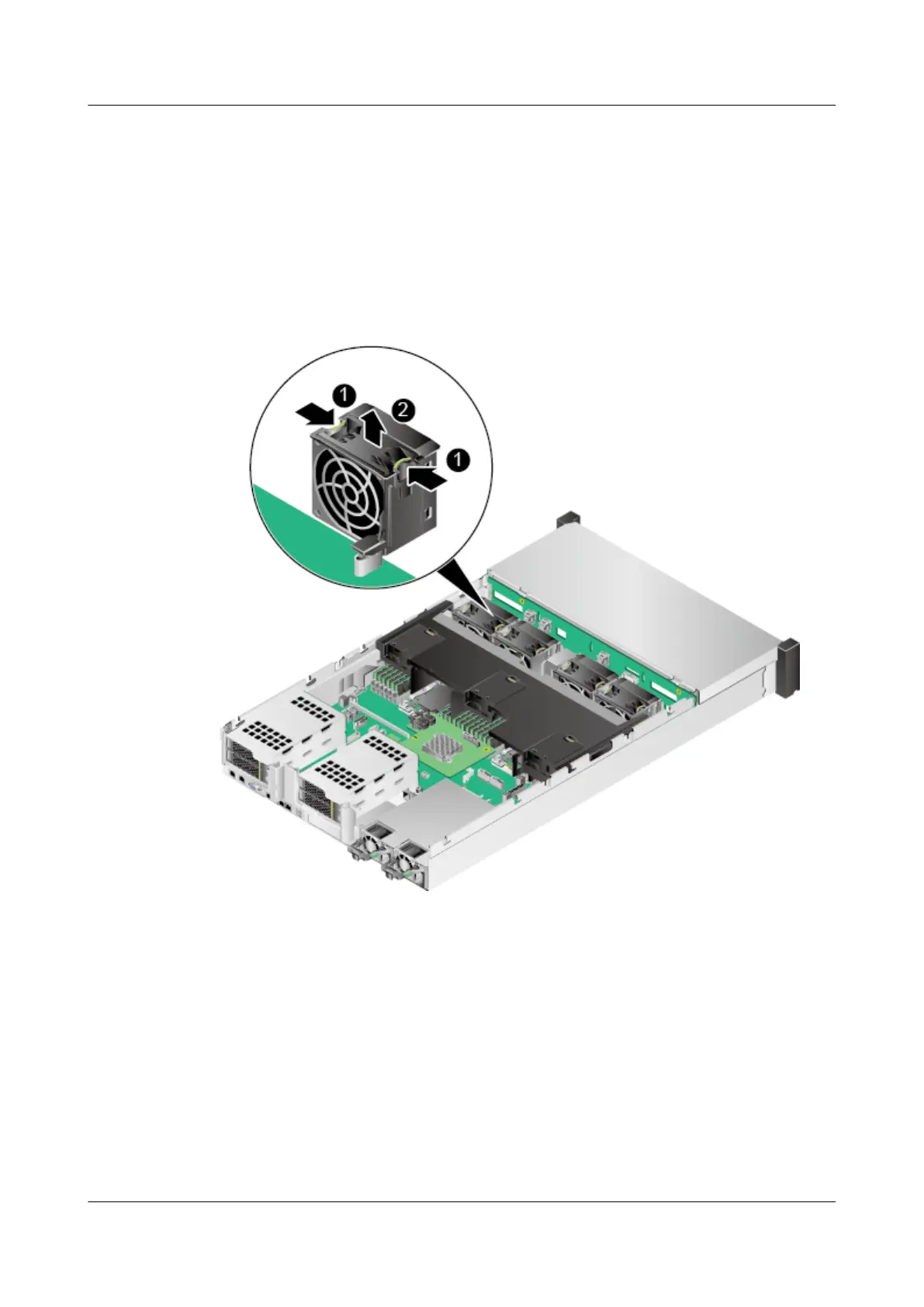

Figure 3-10 Removing a fan module
Step 7 Place the removed fan module in an ESD bag.
----End
3.7 Removing Cables from a PSU
Removing a Power Cable from an AC PSU
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 If only one PSU is configured, power off the server. For details, see 3.2 Powering Off the
Server.
2288H V5 Server
User Guide
3 Basic Operations
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 52
