Huawei 2288H V5 User Manual

NVMe SSD Adapter Signal Cabling

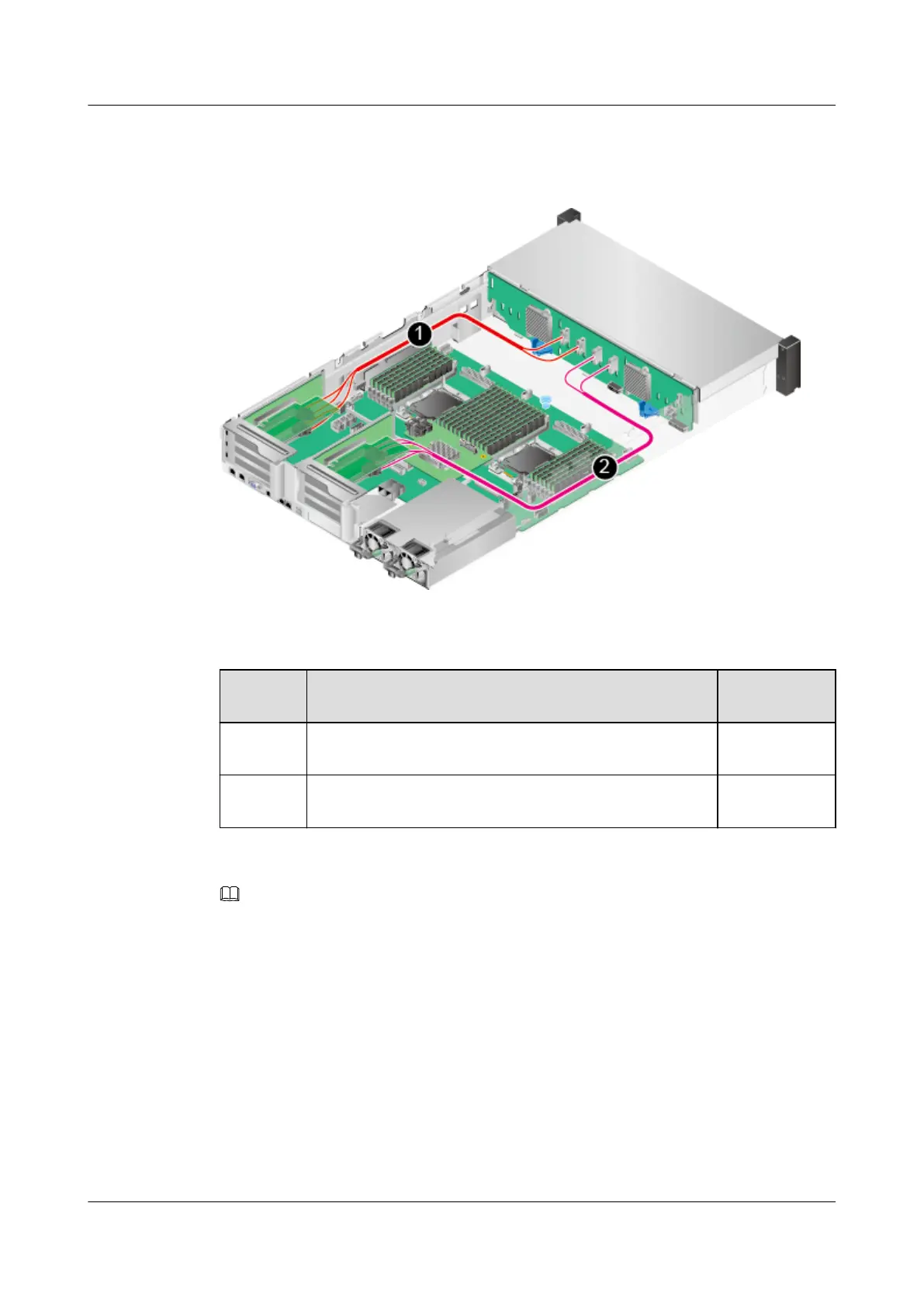

Figure 7-46 NVMe SSD adapter signal cabling
Table 7-46 NVMe SSD adapter signal cabling
No.
Description Huawei Part
Number
1 Signal cable for connecting Slimline A/Slimline B (J6/J5)
of the front drive backplane to NVMe SSD adapter 1
04052105
2 Signal cable for connecting Slimline C/Slimline D (J7/J8)
of the front drive backplane to NVMe SSD adapter 2
04052105-001
NOTE
l Connect cables according to port labels on cables and silkscreens on the adapter and drive
backplane. For example, connect the cable labeled PORT 0 to port 0 on the adapter, and connect the
cable labeled PORT A to port A on the drive backplane.
l When connecting a Slimline cable, connect the cable with a shorter length, and then connect the
cable with a longer length.
l To facilitate operations, remove the backplane before removing the power cables.
2288H V5 Server
User Guide
7 Internal Cabling
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 220

Huawei 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
