Huawei 2288H V5 User Manual

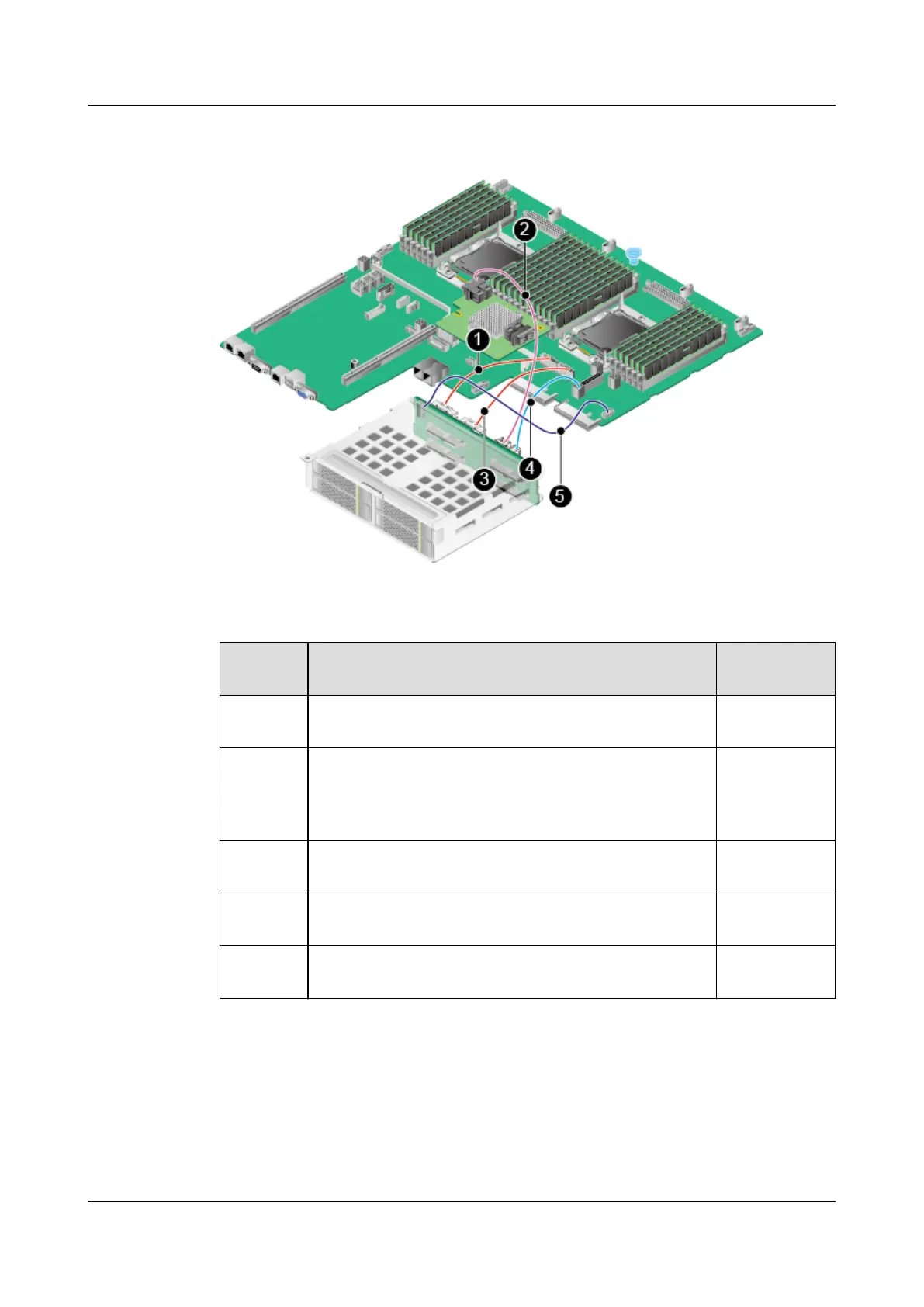

Figure 7-57 Internal cabling for the drive backplane of I/O module 3 (server with a screw-in
RAID controller card)
Table 7-57 Internal cabling for the drive backplane of I/O module 3
No.
Description Huawei Part
Number
1 Signal cable for connecting slimline B (J9) of the rear drive
backplane to slimline B (J139) on the mainboard
04051931
2 SAS cable for connecting the rear drive backplane (J2) to
port D of the RAID controller card
NOTE
This cable is not required if only NVMe SSDs are required.
04051059-002
3 Signal cable for connecting slimline A (J8) of the rear drive
backplane to slimline A (J140) on the mainboard
04051931
4 Power cable for connecting the rear drive backplane (J22)
to the mainboard (J172)
04150448-001
5 Indicator signal cable for connecting the rear drive
backplane (J23) to the mainboard (J164)
04051122
2288H V5 Server
User Guide
7 Internal Cabling
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 231

Huawei 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
