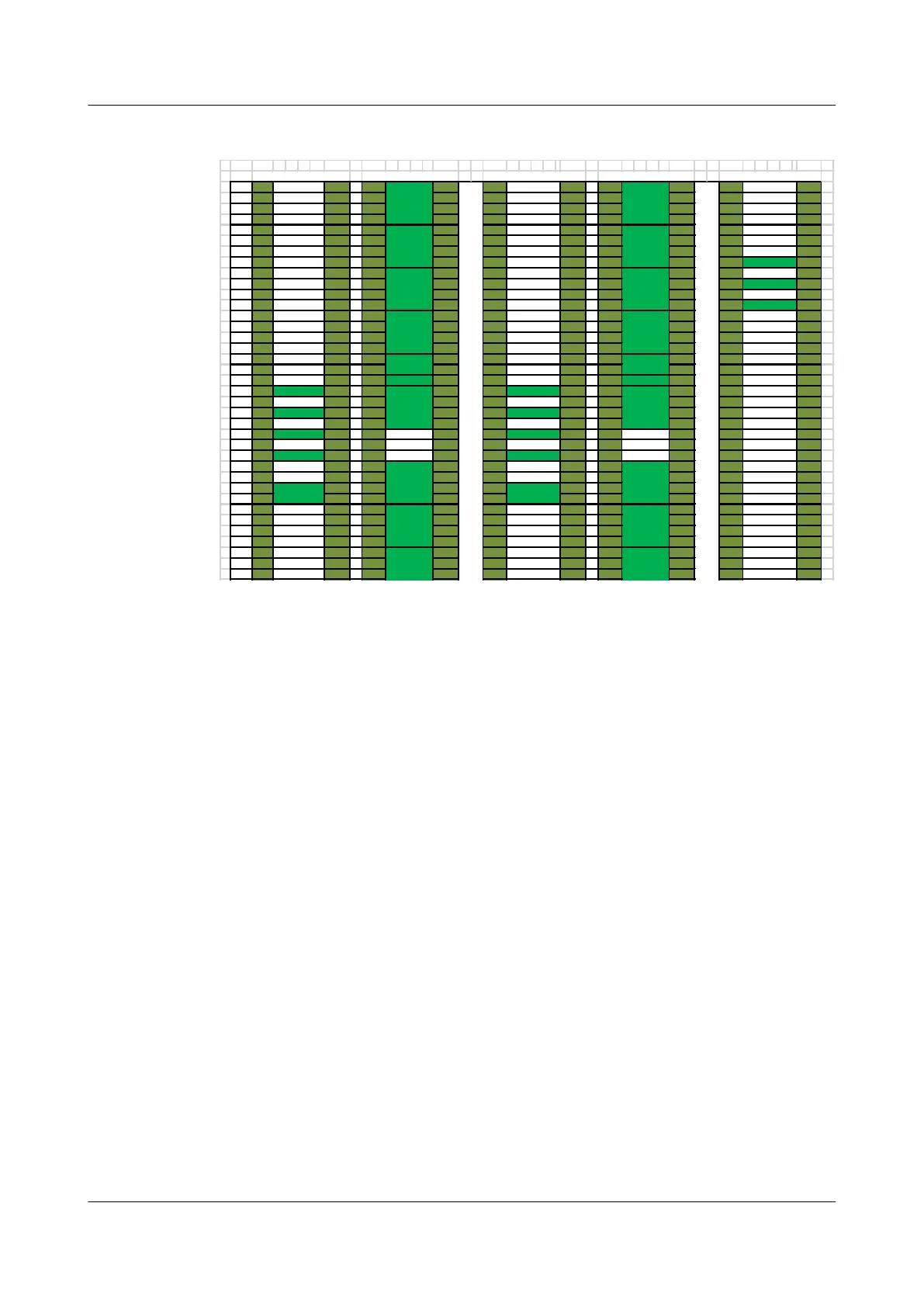

Figure 3-3 Device layout (6 U storage device)
42 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
41 1U 0U 1U 1U 1U 1U 1U 1U 1U 1U
40 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
39 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
38 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
37 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
36 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
35 1U 1U 1U 1U 1U 1U 1U 1U 1U
34 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
33 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
32 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
31 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
30 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
29 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
28 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
27 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
26 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
25 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
24 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
23 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
22 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
21 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
20 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
19 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
18 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
17 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
16 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
15 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
14 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
13 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
12 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
11 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
10 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
9 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
8 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
7 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
6 1U 1U 1U 1U 1U 1U 1U 1U 1U 1U
Disk
enclosure
Filler panel
Filler panel Filler panel
Filler panel Filler panel
Disk
enclosure
Filler panel
Filler panel Filler panel
Sevice host Sevice host
Filler panel
Filler panel
Filler panel
Disk
enclosure
Filler panel
Disk
enclosure
Filler panel
Filler panel Filler panel Filler panel
Filler panel Filler panel Filler panel
Filler panel Filler panel
Filler panel
Disk
enclosure
Filler panel
Filler panel Filler panel
Filler panel Filler panel Filler panel Filler panel Filler panel
CE5800 Filler panel CE5800 Filler panel Filler panel
CE5800 Filler panel CE5800
Engine
Filler panel
Filler panel Filler panel Filler panel
SNS2248 SNS2248 Filler panel
Filler panel Filler panel
Engine
SNS2248
KVM
Filler panel
Filler panel Filler panel
Filler panel SVP Filler panel SVP Filler panel
KVM
Filler panel
CE5800
Disk
enclosure
Filler panel
Disk
enclosure
Filler panel
Filler panel CE5800
Filler panel Filler panel
Filler panel
Disk
enclosure
Filler panel
Disk
enclosure
Filler panel Filler panel
Filler panel Filler panel
Filler panel Filler panel
RH 1288V3
Filler panel
Data center 2 Third-place quorum site
Filler panel
Disk
enclosure
Filler panel
Disk
enclosure
Filler panel
Filler panel Filler panel Filler panel
Filler panel Filler panel
Filler panel Filler panel
Disk
enclosure
Filler panel
Disk
enclosure
Filler panel
Filler panel Filler panel
Filler panel Filler panel
Filler panel
Filler panel
Filler panel
SNS2248
Data center 1 Data center 1 Data center 2
Filler panel
Filler panel
Filler panel
Filler panel
Disk
enclosure
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
Filler panel
l Storage device layout
– To conveniently maintain and operate a controller enclosure, install it in the middle
of the cabinet (15 U to 25 U).
– Reserve 2 U space above and below the controller enclosure to install the cable tray
(also to facilitate the operation of removing and inserting the modules in the
controller enclosure).
– Symmetrically install disk enclosures above and below the controller enclosure.
– Do not stack disk enclosures. Enable five disk enclosures to form a group. In a
cabinet, reserve at least 1 U space between disk enclosure groups for easier
management and minimum vibration transfer.
– Reserve 2 U space at the bottom of the cabinet to facilitate cabling, ventilation and
heat dissipation, and maintenance of the devices in the lower part of the cabinet.
l Switch layout
– Install two SNS2248 switches into two cabinets respectively or the same cabinet in
a data center. Use different power supplies to provide power for them.
– Reserve 1 U space below each switch for cabling.
3.4 Cable Connection
HyperMetro cable connection involves the network between hosts and storage arrays,
HyperMetro replication network, same-city data center network, and quorum network.
Figure 3-4, Figure 3-5 and Figure 3-6 show how switches, controller enclosures, and service
hosts are connected using cables in and across data centers.
OceanStor V3 Series
HyperMetro Feature Guide for File
3 Installation
Issue 05 (2018-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
