Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the air duct to be replaced. For details, see 7.13 Removing the Air Duct.
Step 3 Take the spare air duct out of its ESD bag.
Step 4 Align the positioning pins on the air duct with the fixing holes by following instructions on
the chassis and place the air duct downwards so that the pins on four corners of the air duct fit
into the dents on the chassis. See Figure 7-25.

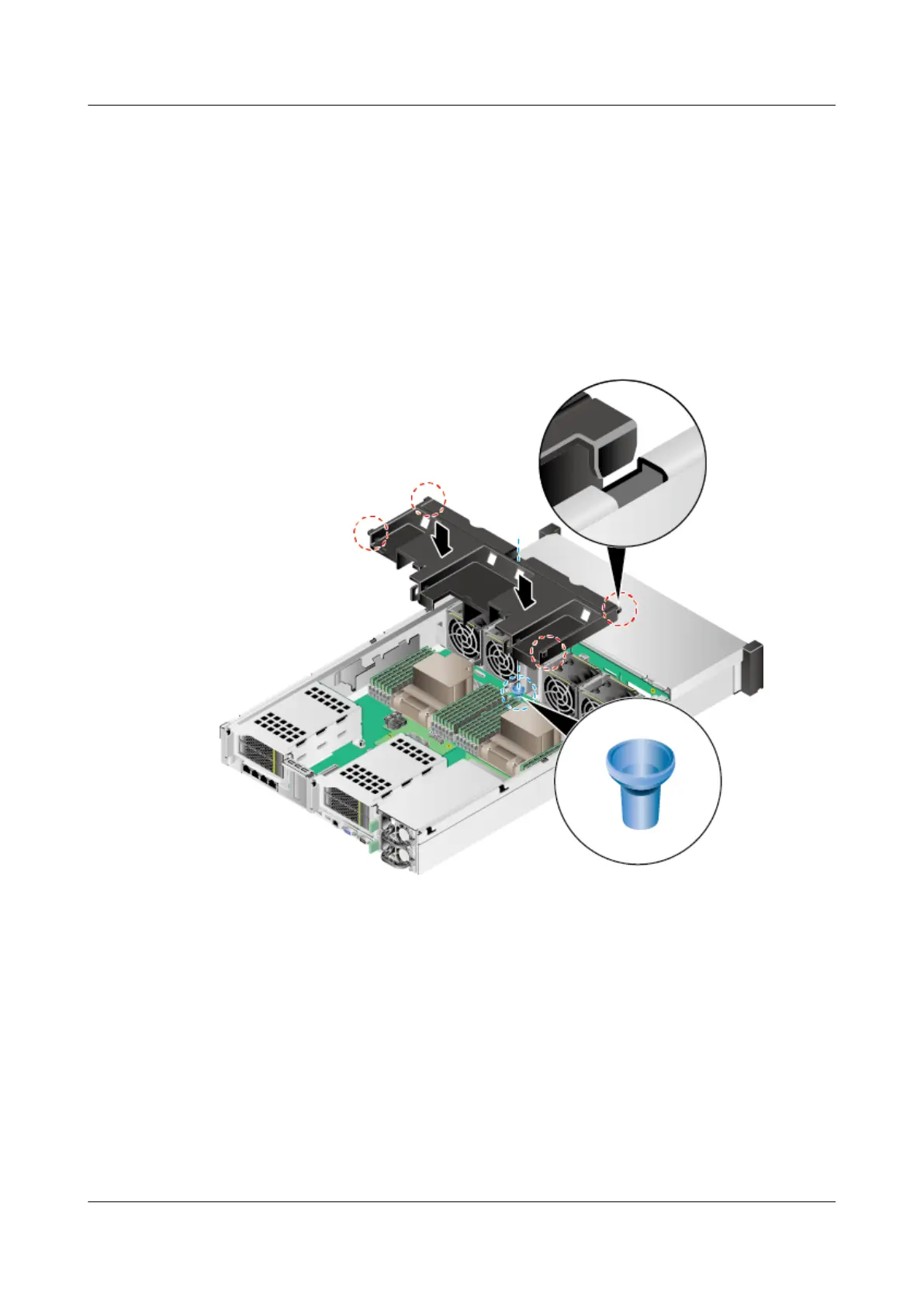

Figure 7-25 Installing the air duct
Step 5 (Optional) Install the supercapacitor tray on the air duct in the arrow direction. See Figure
7-26.
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 151
