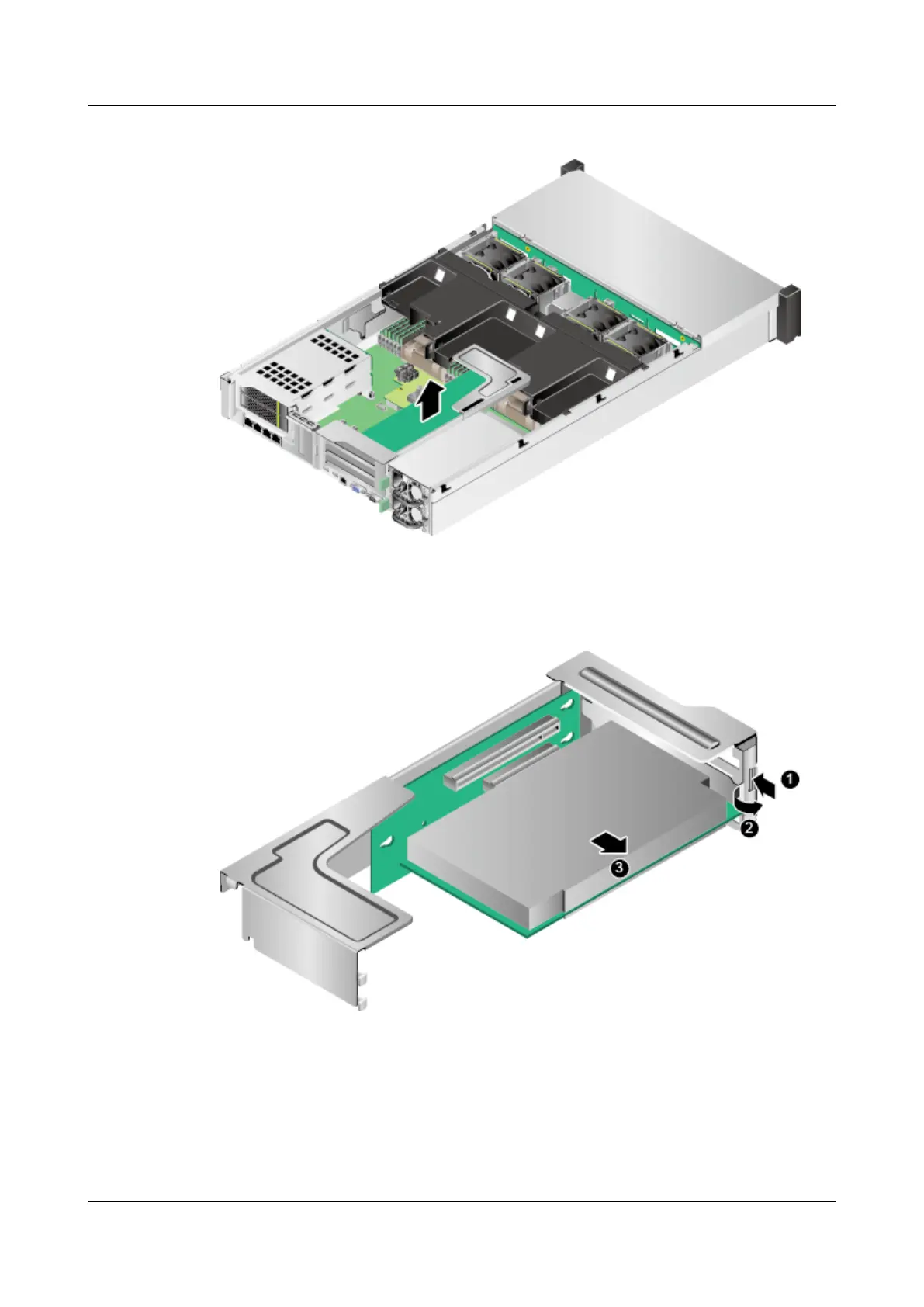

Figure 7-38 Removing a riser card tray
Step 9 Horizontally push the PCIe card latch outwards to release it. See step (1) in Figure 7-39.
Figure 7-39 Removing a PCIe card from a riser card
Step 10 Open the PCIe card latch. See step (2) in Figure 7-39.
Step 11 Remove the PCIe card. See step (3) in Figure 7-39.
Step 12 Place the removed PCIe card in an ESD bag.
----End
