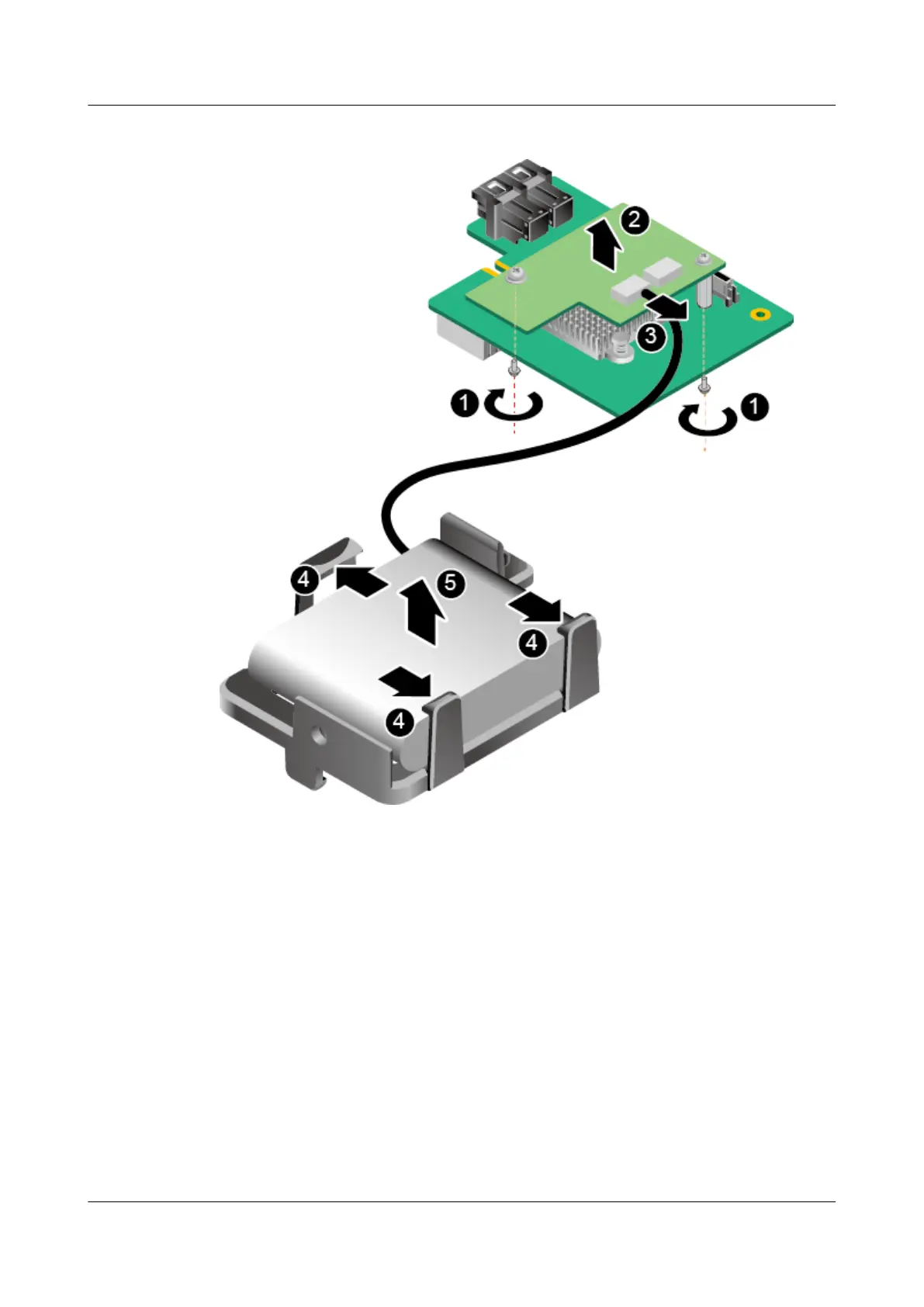

Figure 7-63 Removing the supercapacitor
Step 10 Vertically lift the TFM out of the RAID controller card. See step (2) in Figure 7-63.
Step 11 Remove the cable between the supercapacitor and the TFM. See step (3) in Figure 7-63.
Step 12 Horizontally open the plastic latches that secure the supercapacitor. See step (4) in Figure
7-63.
Step 13 Exert even force to lift the supercapacitor out of the server. See step (5) in Figure 7-63.
Step 14 Place the removed supercapacitor in an ESD bag.
----End
