An M.2 SSD riser card can be configured with two M.2 SATA SSD cards. The replacement
method is the same for the two M.2 SATA SSD cards.
This section uses the M.2 SATA SSD card corresponding to SATA1 port as an example.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the M.2 SATA SSD card to be replaced. For details, see 7.63 Removing an M.2
SATA SSD Card.
Step 3 Take the spare M.2 SATA SSD card out of its ESD bag.
Step 4 Insert the M.2 SATA SSD card into the M.2 SSD riser at a 20° to 30° angle and press down it
horizontally. See step (1) in Figure 7-149.

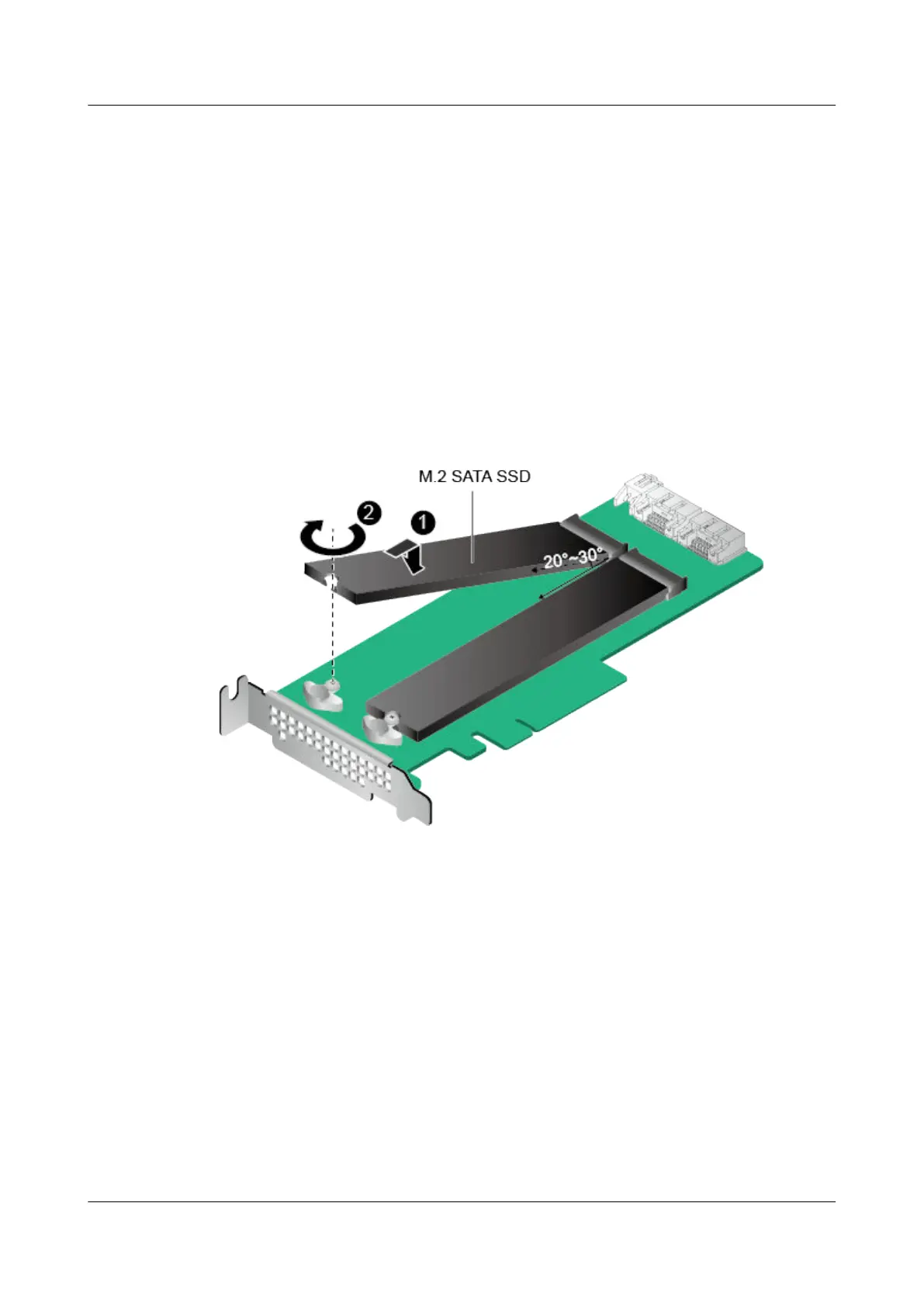

Figure 7-149 Installing an M.2 SATA SSD card
Step 5 Tighten the screw on the M.2 SATA SSD card. See step (2) in Figure 7-149.
Step 6 Install the M.2 SSD riser card.
l For details about how to install an M.2 SSD riser card on the mainboard, see 7.22.2
Installing a PCIe Card on the Mainboard.
l For details about how to install an M.2 SSD riser card on a riser card, see 7.22.1
Installing a PCIe Card on the Riser Card.
Step 7 Connect the cable to the M.2 SSD riser card. For details, see 2.7.1 Internal Cabling for an
M.2 SSD Riser Card.
Step 8 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 9 Install the RH2288 V3. For details, see 3.4 Installing the Server.
Step 10 Connect all external cables such as power and network cables. For details, see 3.5
Connecting External Cables.
