IBM 3270 Operator's Guide

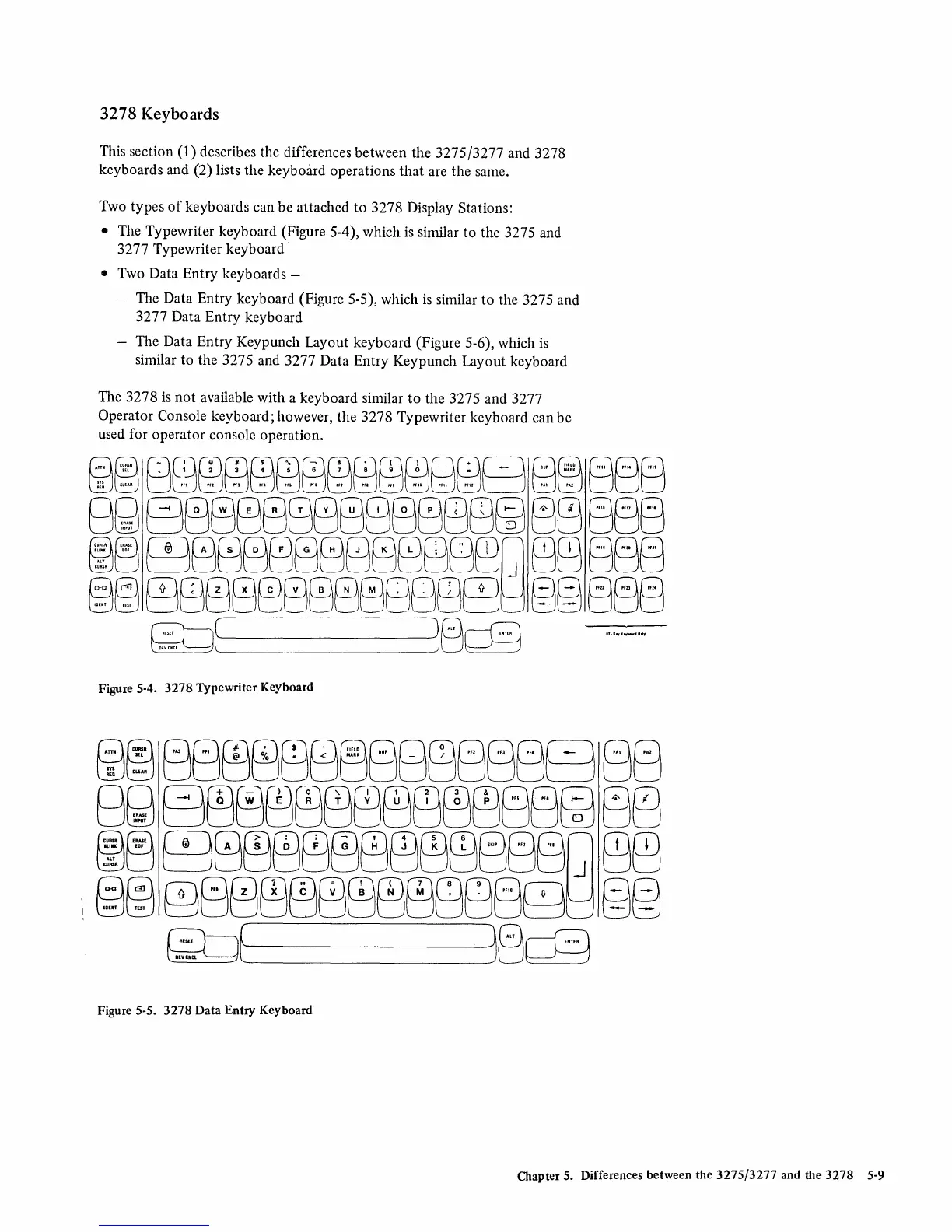

3278 Keyboards
This section (1) describes the differences between the 3275/3277 and 3278
keyboards and (2) lists the keyboard operations
that are the same.
Two types
of keyboards can be attached to 3278 Display Stations:
• The Typewriter keyboard (Figure 5-4), which is similar to the 3275 and
3277 Typewriter keyboard
• Two Data Entry keyboards -
The Data Entry keyboard (Figure 5-5), which
is similar to the 3275 and
3277 Data Entry keyboard
The Data Entry Keypunch Layout keyboard (Figure 5-6), which
is
similar to the 3275 and 3277 Data Entry Keypunch Layout keyboard
The 3278
is not available with a keyboard similar to the 3275 and 3277
Operator Console keyboard; however, the 3278 Typewriter keyboard can be
used for operator console operation.
Figure 5-4. 3278 Typewriter Keyboard
Figure 5-5. 3278 Data Entry Keyboard
Chapter 5. Differences between the 3275/3277 and the 3278 5-9
