Restriction: The 1 Gb Ethernet ports do not support data rates of 10 Mbps (megabits per second).
The adapter is SR-IOV (Single Root I/O Virtualization) capable. The adapter can function as a boot
adapter. The adapter supports all Fibre Channel and Ethernet topologies.
Specifications
Item Description
Adapter FRU number
00E3501 (Designed to comply with RoHS requirement)
Low-profile bracket part number 00ND496
Wrap plug FRU number
12R9314 (for Fibre LC connector)
10N7405 (for RJ45 connector)
I/O bus architecture
PCIe2 x8
Slot requirement
For details about slot priorities and placement rules, see the PCI adapter placement topic
collection for your system.
Cables
SR SFP+ Copper Twinax and Cat5 Ethernet cables
Voltage
3.3 V, 12 V
Form factor
Short, low-profile
Maximum number
For the maximum adapters supported, see the PCI adapter placement topic collection for your
system.

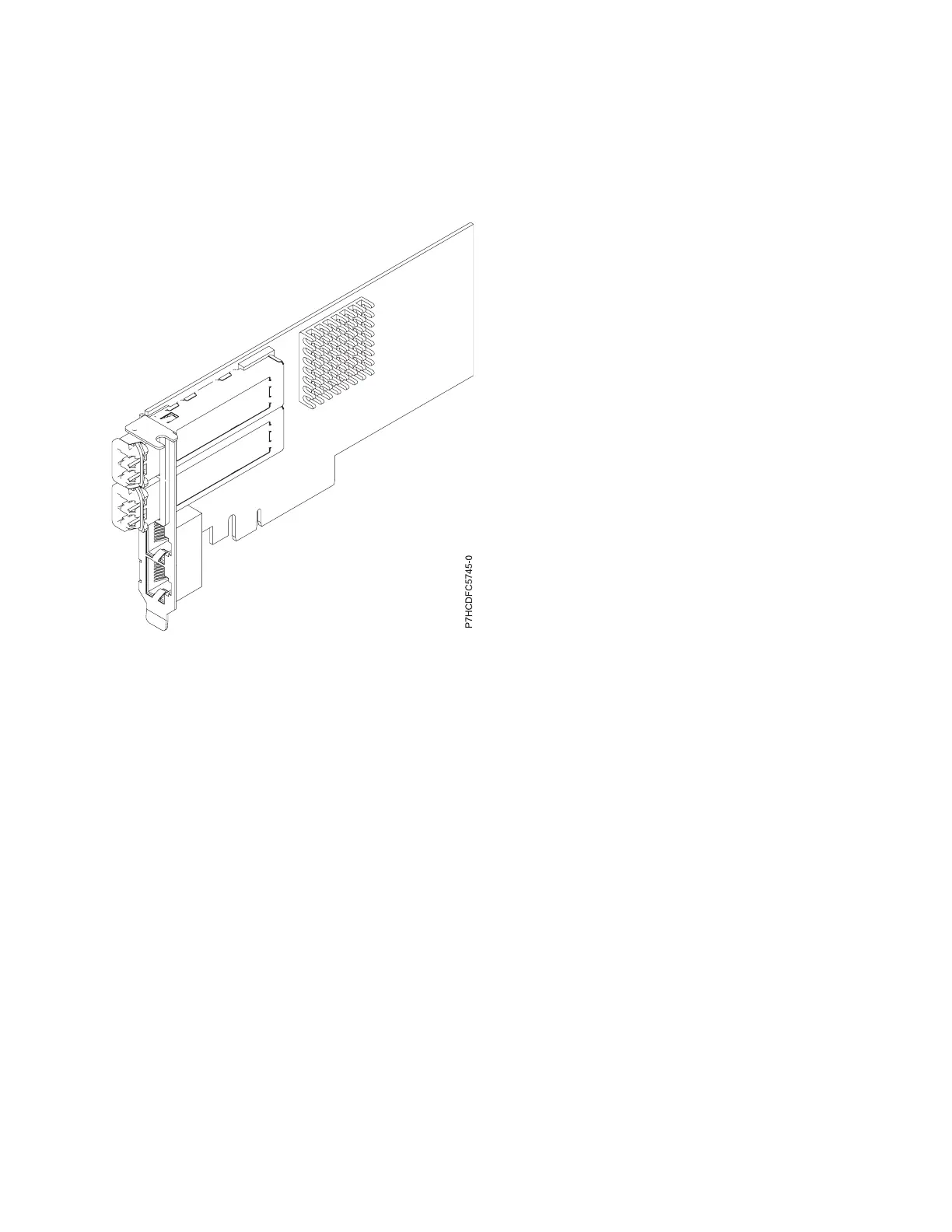

Figure 51. FC EN0L adapter
Managing PCI adapters 155
