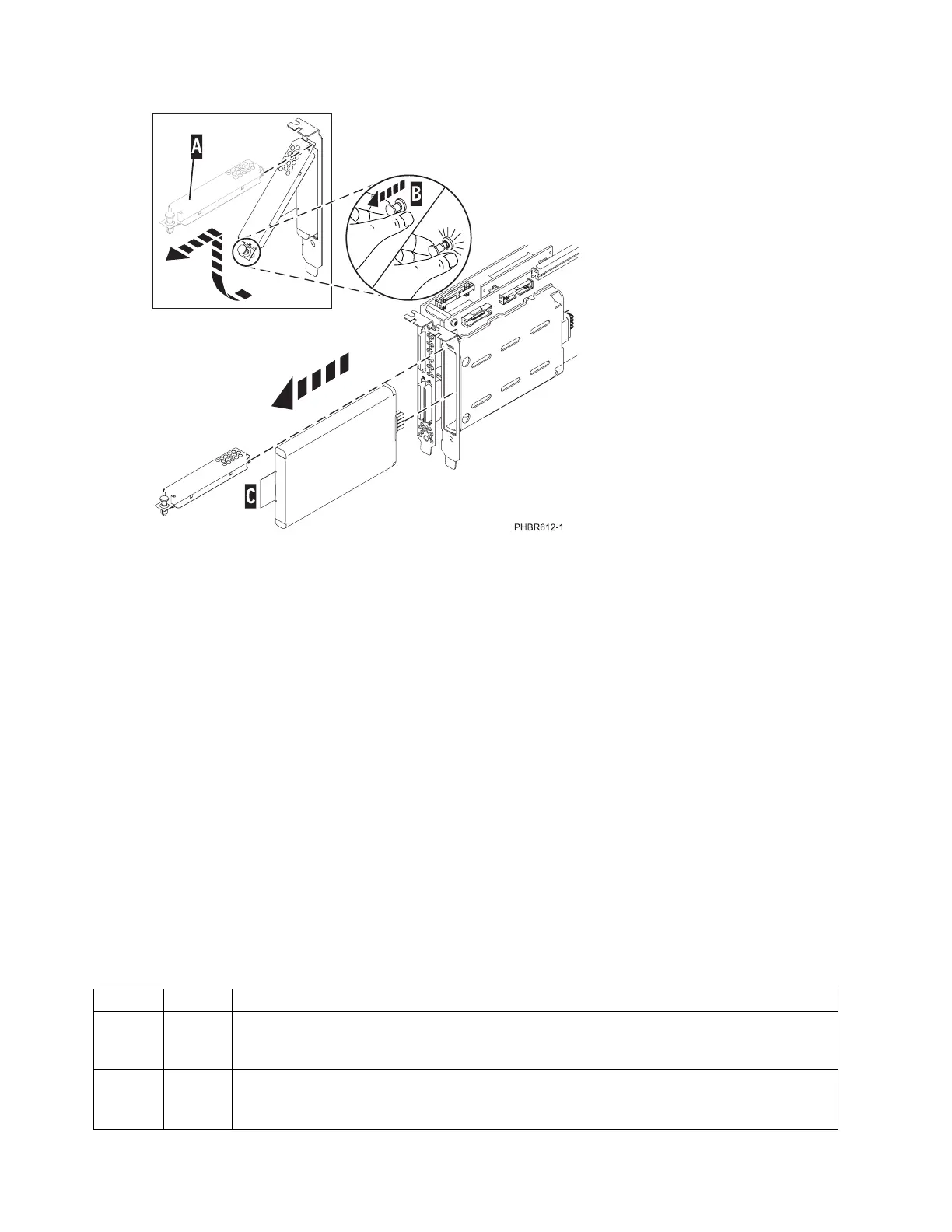

6. Remove the cache battery pack by grasping the tab C and removing the battery from the adapter.
7. Install the new cache battery pack into the adapter, ensuring that the cache battery pack is seated
correctly in its socket.
8. Replace metal cover A and push in on the push rivet B to secure the cover.
9. Does the system or partition have IBM i Version 5 Release 4, or later?
v Yes: Continue with the next step.
v No: Go to step 12.
10. Return to the Work with Resources containing Cache Battery Packs display and select the Start IOA
cache. Press Enter.
11. Verify the Cache was started message is received. This ends the procedure.
12. Return to the Specify Advanced Analysis Options display and type -START -IOA xxxx where xxxx is
the card resource name that you are working with.
13. Ensure that you get the message Cache started on IOA.
Replacing the cache battery pack on the 571E, 574F, 2780, or 5708
adapters
Learn how to replace the cache battery pack.
This procedure describes how to replace the cache battery pack on the adapters listed in the following
table
Feature CCIN Description
5582
5583
571E
574F
PCI-X DDR Quad Channel Ultra 320 SCSI RAID adapter with an auxiliary-write cache IOA
0627
2780
2780 PCI-X Ultra4 RAID disk-controller
214 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
