4-port Async EIA-232 PCIe Adapter (FC 5785; CCIN 57D2)
Learn about the features, operating system requirements, and installation procedures for the feature code
(FC) 5785 adapters.
Overview
The FC 5785 is the is full-height adapter similar to FC 5277 (PCIe LP 4-port Async EIA-232 adapter),
which is the low-profile adapter.
The 4-port Async EIA-232 PCIe Adapter provides connections for four asynchronous EIA-232 devices
using a 4-port DB-9F DTE fan-out cable. Ports are programmable to support EIA-232 protocols at a line
speed of 128 Kbps.
The following figures show the adapter and cable.

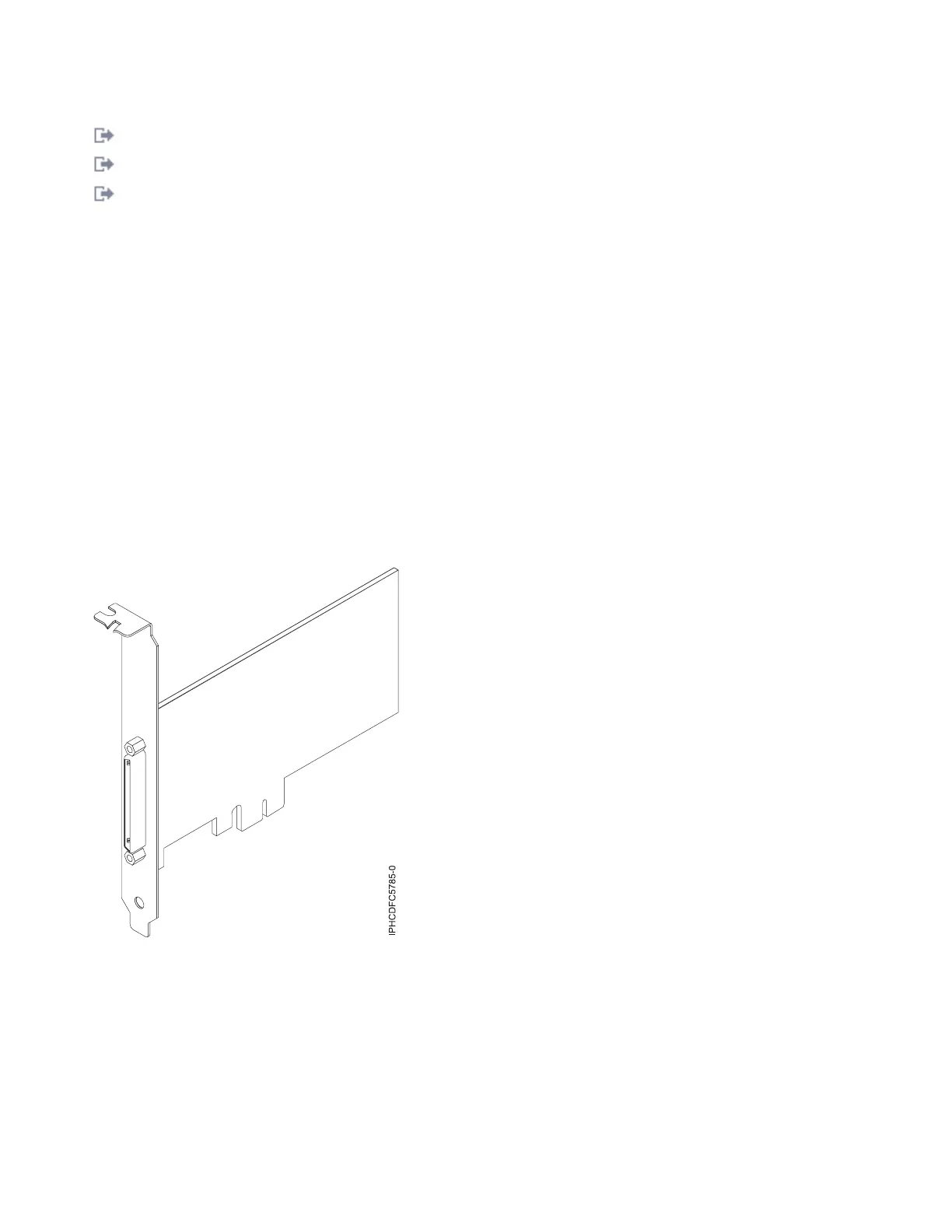

Figure 4. Adapter
12 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
