supports RAID and non-RAID DASD, tape, and optical devices. This adapter supports the multi-initiator
and high availability configurations in AIX and Linux. IBM i does not support feature 5901 in
multi-initiator and high availability configurations.
Important: See the SAS RAID controllers for AIX, SAS RAID controllers for Linux, or SAS RAID
controllers for IBM i topics for more information and important considerations for multi-initiator and
high availability or dual storage IOA configurations
The 5901 supports SAS SFF disk drives located in a PCIe 12X I/O Drawer or SAS disk drives located in
an EXP 12S Disk Drawer or SAS disk drives located in a supported POWER system unit (split disk
backplane).
Specifications
Item Description
Adapter FRU number
44V4852 (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe
Slot requirement
One available PCIe x8 slot
Cables
SAS device attachment requires specific cables that are provided with the subsystem or device
features being attached. Special cabling is required for multi-initiator and high availability
configurations. See Serial attached SCSI cable planning.
Voltage
3.3 V
Form factor
Short, low-profile
Maximum number
For the maximum adapters supported, see the PCI adapter placement topic collection for your
system.
Attributes

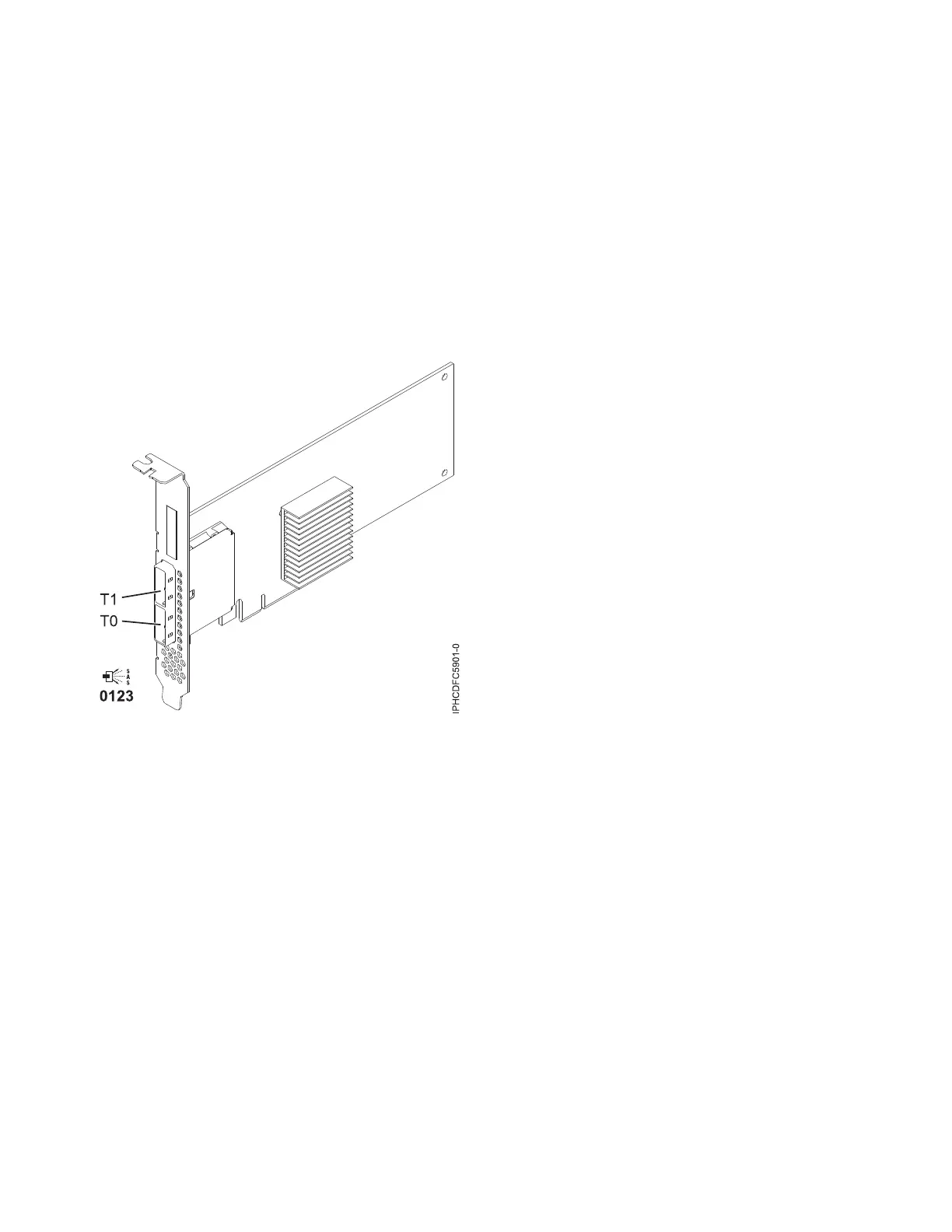

Figure 60. PCIe Dual - x4 SAS adapter
178 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
