Chapter 4 Running and Commissioning IS620P User Manual
- 82 -
Function
Code
Parameter Name
Setting
Range
Unit Default Effective Time Property
Control
Mode
H05 17
Encoder frequency-
division pulses
35–32767 P/Rev 2500 Power-on again At stop -

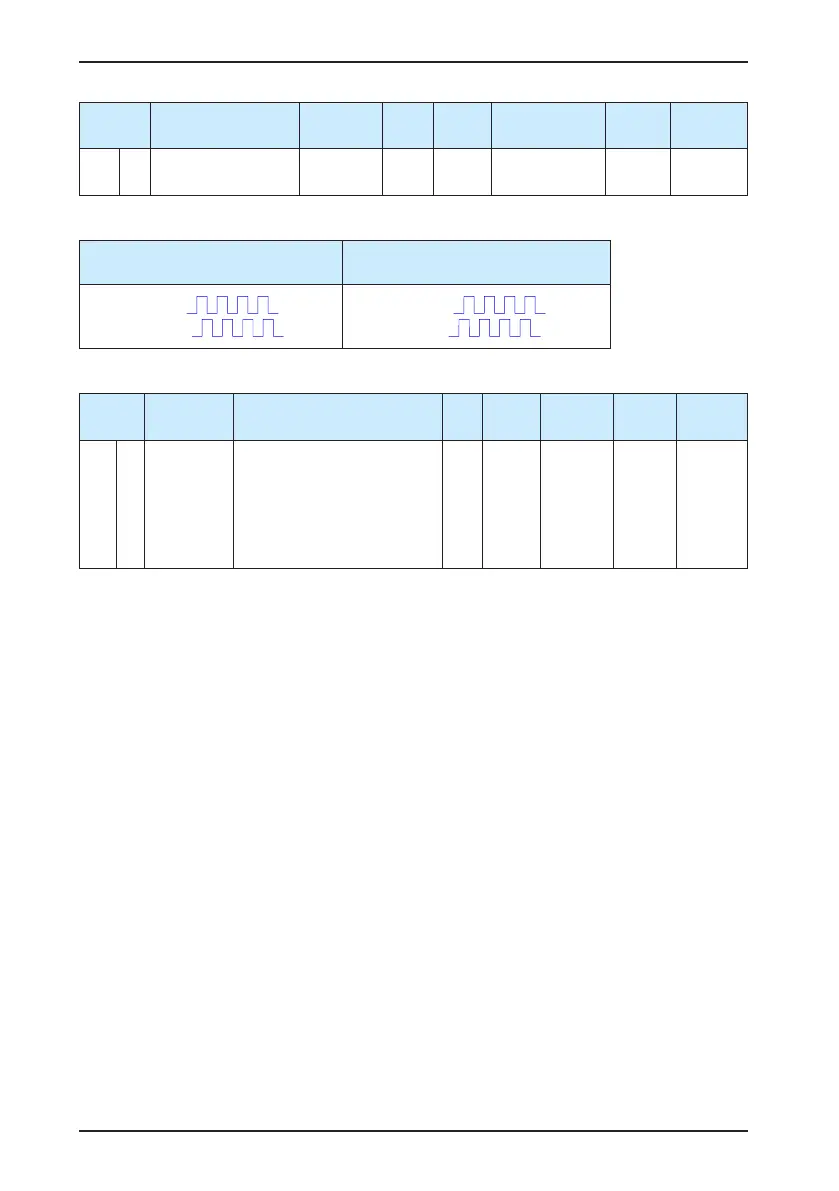

Table 4-3 Output phase pattern
Forward Rotation
(Phase A Advancing Phase B by 90°)
Reverse Rotation
(Phase B Advancing Phase A by 90°)
PAO
PBO
PAO
PBO
The phase pattern of output pulse feedback can be modied in H02-23.
Function
Code
Parameter
Name
Setting Range Unit Default
Effective
Time
Property
Control
Mode
H02 03
Output pulse
phase
0: CCW direction as the
forward direction (phase A
advancing phase B)
1: CW direction as the forward
direction (reverse rotation
mode, phase A lagging phase
B)
- 0
Power-on
again
At stop PST
