INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Basic operation instruction
162
Function
code
Name
Detailed instruction of parameters
Default
value
P06.25
The corresponding AO2
output of upper limit
0.00V–10.00V
10.00V
P06.26
AO2 output filter time
0.000s–10.000s
0.000s
P06.27
Lower output limit of HDO
-100.0%–P06.29
0.00%
P06.28
Corresponding HDO
output of lower limit
0.00–50.00kHz
0.0kHz
P06.29
Upper output limit of HDO
P06.27–100.0%
100.0%
P06.30
Corresponding HDO
output of upper limit
0.00–50.00kHz
50.00kHz
P06.31
HDO output filter time
0.000s–10.000s
0.000s

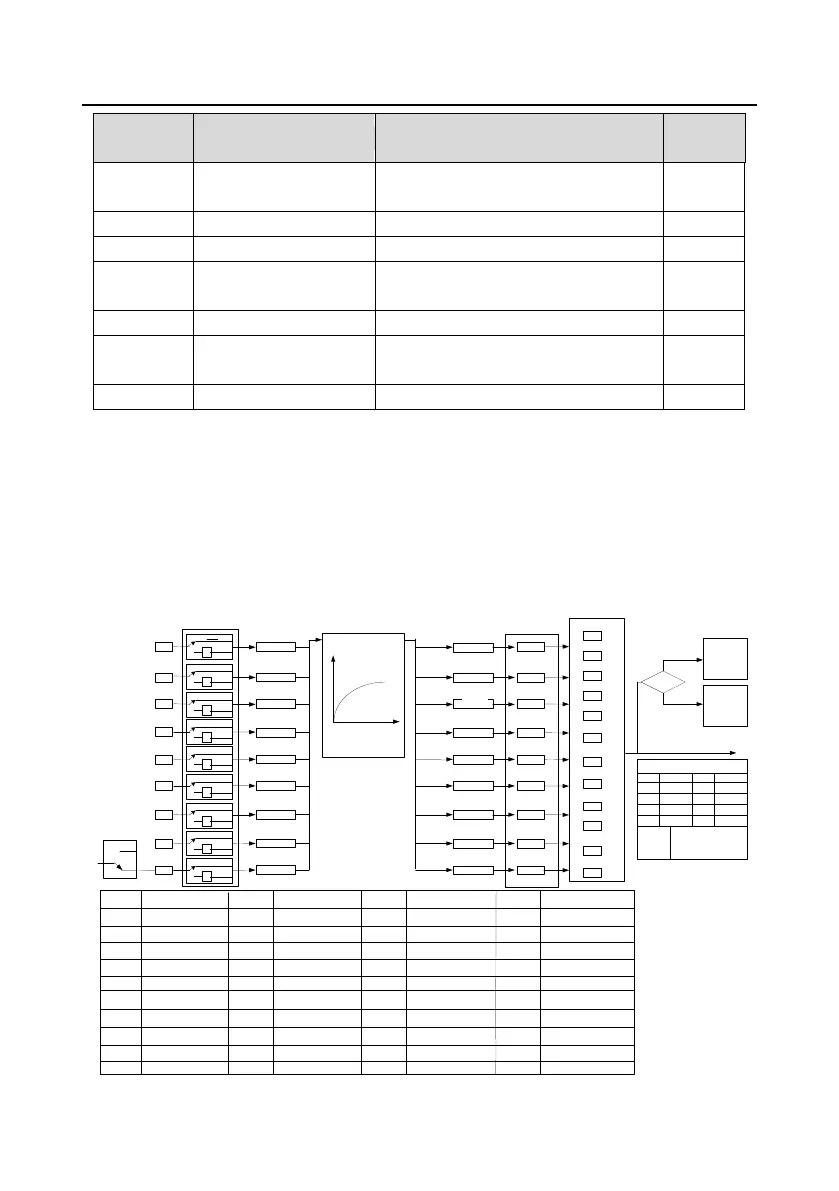

7.11 Digital input
Goodrive300 series VFDs have 8 programmable digital input terminals and 1 open circuit electrode
output terminal in the standard configuration. All functions of the digital input terminals are
programmable by the function codes. Open collector input can be selected into high speed pulse
input terminal or common switch input terminal by function code. When selected into HDI, the user
can select HDI high speed pulse input as frequency given, counting input or length pulse input by
setting.
S1
S2
S3
S4
S5
S6
S7
S8
HD1
P05.10
P05.01
P05.02
P05.03
P05.04
P05.05
P05.06
P05.07
P05.08
P05.09
T delay
T delay
T delay
T delay
T delay
T delay
T delay
T delay
T delay
P05.15
P05.17
P05.19
P05.21
P05.23
P05.25
P05.27
P05.29
P05.31
0
1
2
3
4
5
.
.
.
.
29
30
P05.11
(default value is 1)
(default value is 4)
(default value is 7)
(default value is 0)
(default value is 0)
(default value is 0)
(default value is 0)
(default value is 0)
(default value is 0)
P05.00
0
1
0
1
-1
0
1
-1
0
1
-1
0
1
-1
0
1
-1
0
1
-1
0
1
-1
0
1
-1
0
1
-1
P17.11
Switch input
terminal state
0 No function 1 Forward running
4 Forward jogging 5 Reverse jogging
8 Running pause 9 External fault input
12
Frequency increase/decrease
setting clear
13
Shifting between A frequency
and B frequency
16 Multi-stage speed terminal 1 17 Multi-stage speed terminal 2
20 Multi-stage speed pause 21 ACC/DEC time selection 1
2 Reverse running
6 Coast to stop
10
Frequency setting increasing
(UP)
14
Shifting between combination
setting and A frequency
18 Multi-stage speed terminal 3
22 ACC/DEC time selection 2
23 Simple PLC pause 25 PID control pause
28 Counter reset 29 Torque control disabling
26
Traverse pause (stop at the
current frequency)
30 ACC/DEC disabling
32 Length reset 33
Frequency increase/decrease
setting clear
34 DC braking
3 3-wire running control
7 Fault reset
11
Frequency setting decreasing
(DOWN)
15
Shifting between combination
setting and B frequency
19 Multi-stage speed terminal 4
23 Simple PLC stopping reset
27
Traverse reset (stop at the
middle frequency)
31 Counter trigging
35 Shift from motor 1 to motor 2
36
Shift the command to the
keypad
37
Shift the command to the
terminal
38
Shift the command to the
communication
39 Pre-exciting command
40 Power consumption clear 41 Power consumption keeping 42~63 Reserved
P07.37
The current
fault switch
input terminal
state
Fault?
S1 BIT0 S2 BIT1
S3 BIT2 S4 BIT3
S5 BIT4 S6 BIT5
S7 BIT6 S8 BIT7
HDI BIT8
P05.10, P17.11, P07.37 display
P05.00
0: HDI is high speed
pulse input
1: HDI is switch input
Fault
Switch function selection
T delay
T delay
T delay
T delay
T delay
T delay
T delay
T delay
T delay
P05.14
P05.16
P05.18
P05.20
P05.22
P05.24
P05.26
P05.28
P05.30
