INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Keypad operation procedure
36

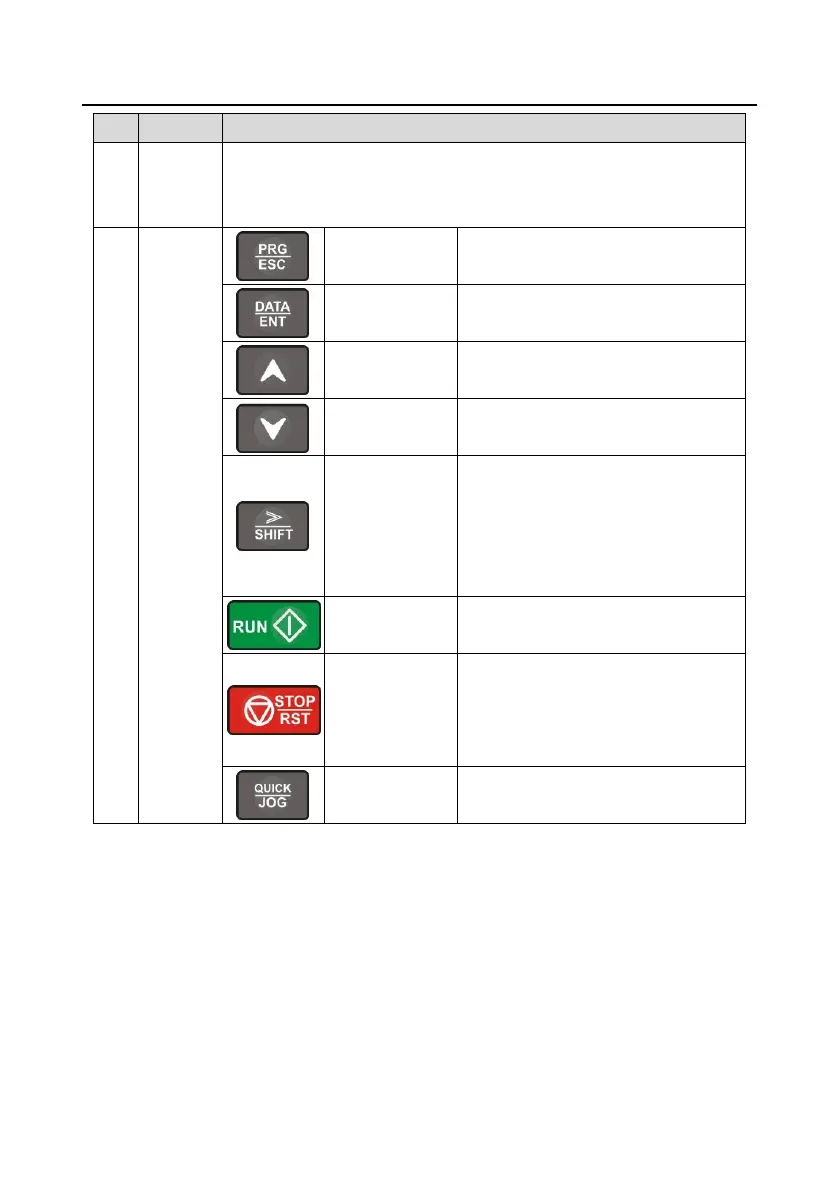

No.
Name
Description
4
Digital
potentiom
eter
Tuning frequency. Please refer to P08.41.
5
Buttons
Programming key
Enter or escape from the first level menu
and remove the parameter quickly.
Entry key
Enter the menu step-by-step
Confirm parameters.
UP key
Increase data or function code
progressively.
DOWN key
Decrease data or function code
progressively.
Right-shift key
Move right to select the displaying
parameter circularly in stopping and
running mode.
Select the parameter modifying digit
during the parameter modification.
Run key
This key is used to operate on the VFD in
key operation mode.
Stop/
Reset key
This key is used to stop in running state
and it is limited by function code P07.04
This key is used to reset all control modes
in the fault alarm state.
Quick key
The function of this key is confirmed by
function code P07.02.
5.3 Keypad displaying
The keypad displaying state of Goodrive300 series VFDs is divided into stopping state parameter,
running state parameter, function code parameter editing state and fault alarm state and so on.
5.3.1 Displayed state of stopping parameter
When the VFD is in the stopping state, the keypad will display stopping parameters which is shown in
figure 5-2.
In the stopping state, various kinds of parameters can be displayed. Select the parameters to be
displayed or not by P07.07. See the instructions of P07.07 for the detailed definition of each bit.
In the stopping state, there are 14 stopping parameters can be selected to be displayed or not. They
