INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Basic operation instruction
184
Count value
>P08.26？
0
Count value
>P08.25？
Run
0
Digital output 19
Specified count value
reached
Digital output 18
Set count value
reached
P05.00
(HDI input type selection)
P05.49
（HDI input function selection）
Terminal function 28
Counter reset
P08.26
Specified count value
P08.25
Set count value
0
1
2
0
1
Valid
Invalid
Y、HDO、RO1、RO2
Y、HDO、RO1、RO2
Y
N
Y
N
P17.18
Count value
Counter stop
Count value
>P08.26？
0
Count value
>P08.25？
Run
0
Digital output 19
Specified count value
reached
Digital output 18
Set count value
reeached
Terminal
function 31
Counter
triggering
Terminal function 28
Counter reset
P08.26
Specified count value
P08.25
Set count value
0
1
Valid
Invalid
Y
N
Y
N
P17.18
Count value
Output when the specified
count value is reached.
Output when the set count
value is reached
Function
code
Name
Detailed instruction of parameters
Default
value
P05.00
HDI input selection
0: High-speed pulse input.
1: Digital input.
0
P05.49
HDI high-speed pulse
input function
selection
0: Frequency setting input
1: Counter input
2: Length counting input
0
P05.01–
P05.09
Digital input function
selection
28:Counter reset
31:Counter trigger
P06.01–
P06.04
Digital output function
selection
18: Set count value reached
19: Specified count value reached
P08.25
Set count value
P08.26–65535
0
P08.26
Specified count value
0–P08.25
0
P17.18
Count value
0–65535
0

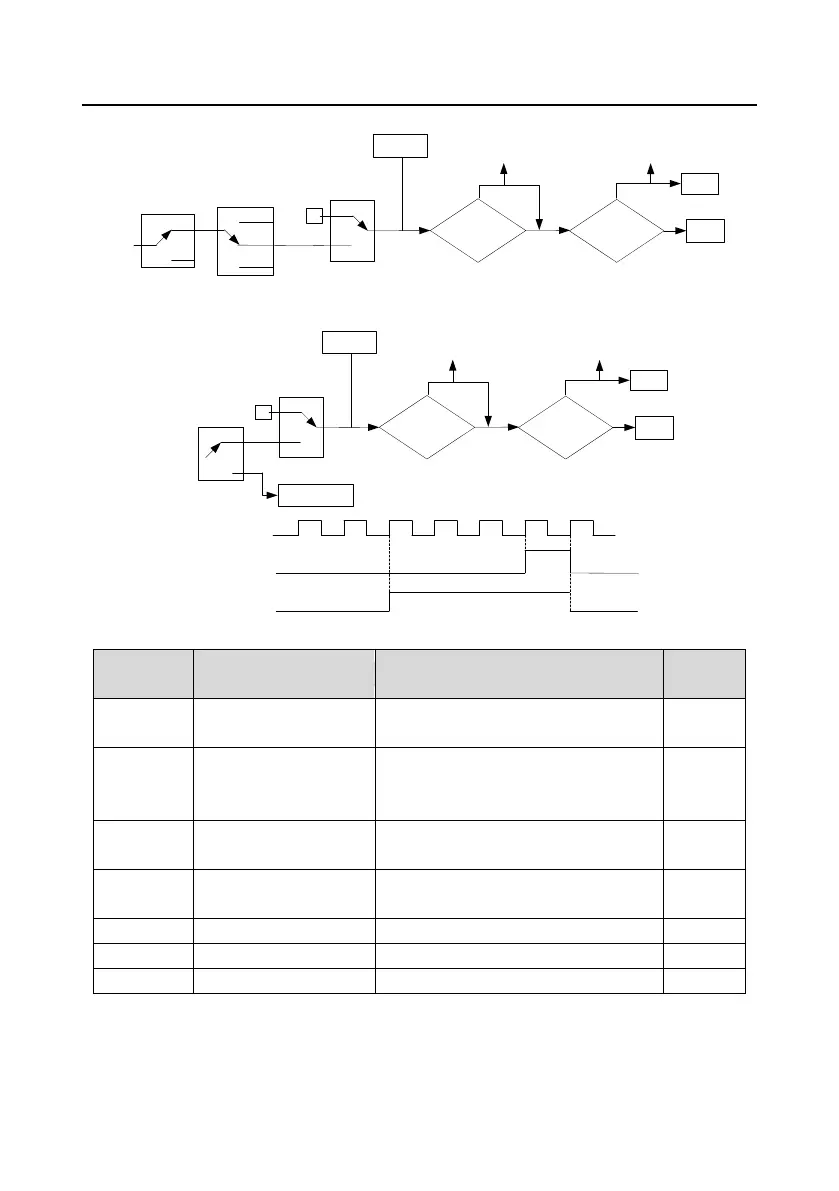

7.18 Fixed-length control
Goodrive300 series VFDs support fixed-length control function which can input length counting pulse
through HDI, and then count the actual length according to the internal counting formula. If the actual
