INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Peripherial options and parts
261
Appendix D Peripherial options and parts
D.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive300 series.

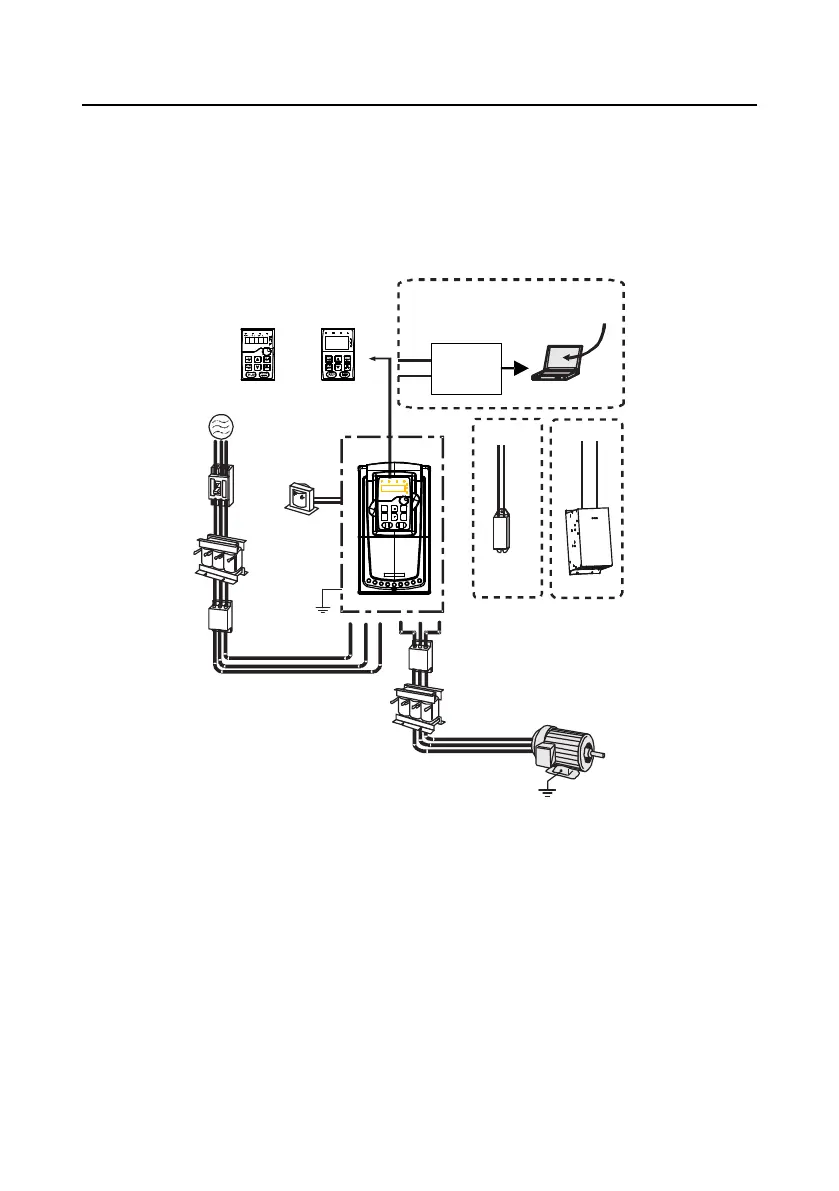

D.2 Peripherial wiring
Below is the peripherial wiring of Goodrive300 series VFDs.
Breaker
Input filter
Input reactor
Earth
DC reactor
LED
LCD
Standard
P1
+
+
-
PB
Brake
resistor
Brake
unit
PC
RS485
RS232 to
receiver
Output filter
Output reactor
motor
Earth
+
Upper PC
485 +
485 -
Power supply
Optional
Note:
1. The VFD of 380V (≤30kW) are embedded with braking unit.
2. The VFDs of 380V (≥37kW) and of 660V have P1 terminal and are connected with external DC
reators.
3. The VFD of 500V (≤18.5kW) are embedded with braking unit.
4. The VFDs of 500V (≥22kW) have P1 terminal and are connected with external DC reators.
5. The VFDs of 660V have P1 terminal and are connected with external DC reators.
6. The braking units apply standard braking units. Refer to the instruction of DBU for detailed
information.
