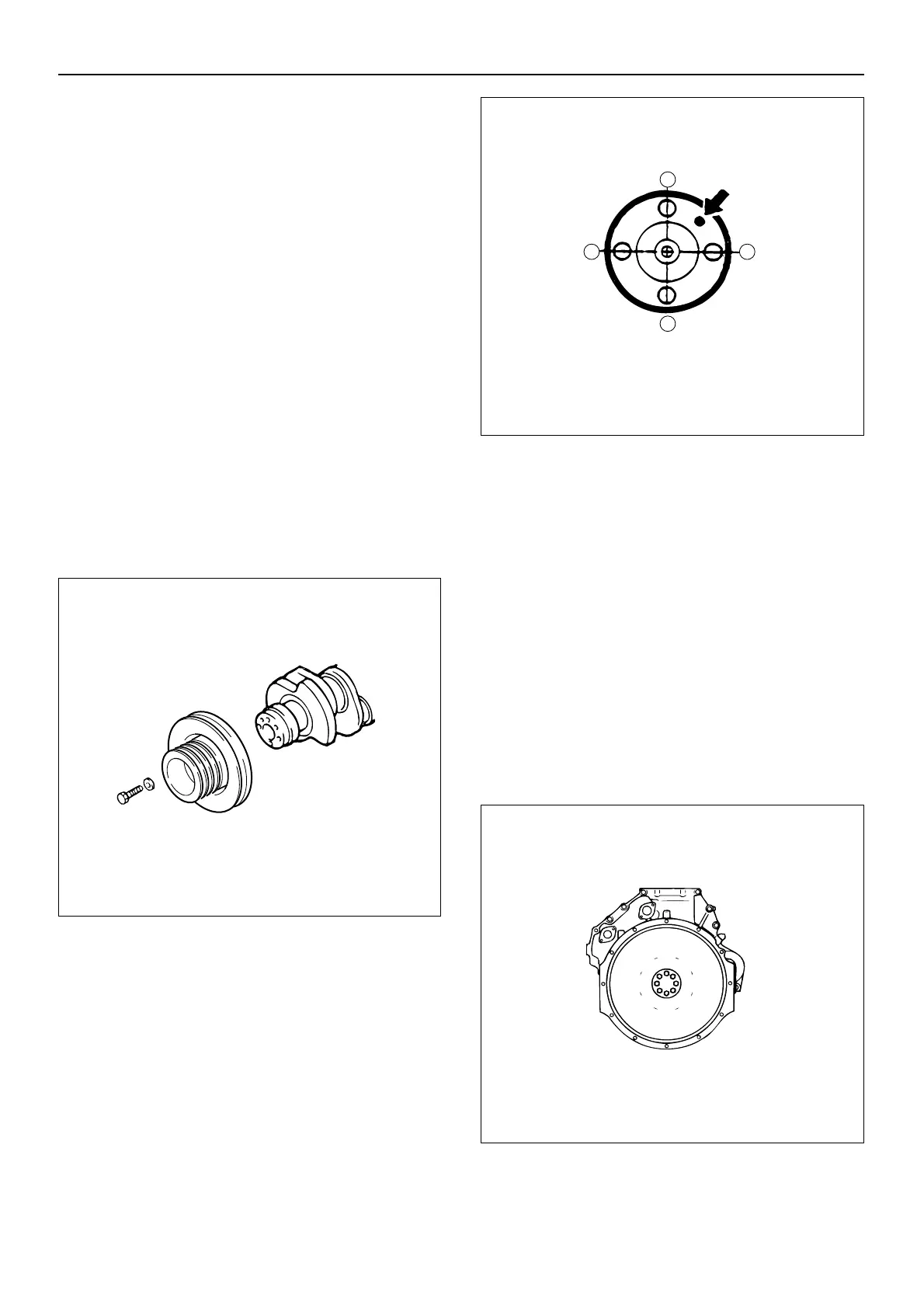

ENGINE MECHANICAL 6A–63
1. Remove the cooling fan.
2. Remove the fan belts.
3. Remove the crankshaft damper pulley from the
crankshaft.
• Block the crankshaft with a piece of hard wood to
prevent the damper pulley from turning.
• Diagonally loosen the damper pulley bolts.
4. Remove the flywheel from the crankshaft.
Installation
1. Install the crankshaft damper pulley to the
crankshaft.
1. Apply engine oil to the threads and setting faces of
the crankshaft damper pulley bolts.
2. Block the crankshaft with a piece of hard wood to
prevent the damper pulley from turning.
3. Install the crankshaft damper pulley. Use the
locating dowel pin.
4. Tighten the crankshaft damper pulley bolts to the
specified torque a little at a time in the numerical
order shown in the illustration.
Torque: 200 N·m (20.4 kgm/148 lbft)
2. Install the flywheel and washer to the crankshaft.
1. Block the crankshaft with a piece of hard wood to
prevent the flywheel from turning.
2. Apply molybdenum disulfide grease to the
flywheel bolt threads.
3. Install the flywheel. Use the locating pin.
4. Tighten the fixing bolts to the specified torque in
three steps.
Follow the numerical order shown in the
illustration.
Torque :
1st step : 78 N·m (8.0 kgm/58 lbft)
2nd step : 60 deg.
3rd step : 60 – 90 deg.
NOTE : The flywheel housing bolts can be reused 6
times.
015EY00006
