ENGINE MECHANICAL 6A–7
Intake Cover
Removal
1. Remove the fuel pipes.
2. Remove the booster air pipe.
3. Remove the injection pipes.
4. Remove the fuel filter and bracket.
5. Remove the intake pipe.
6. Remove the intake cover.
7. Clean the sealing surfaces of the intake cover.

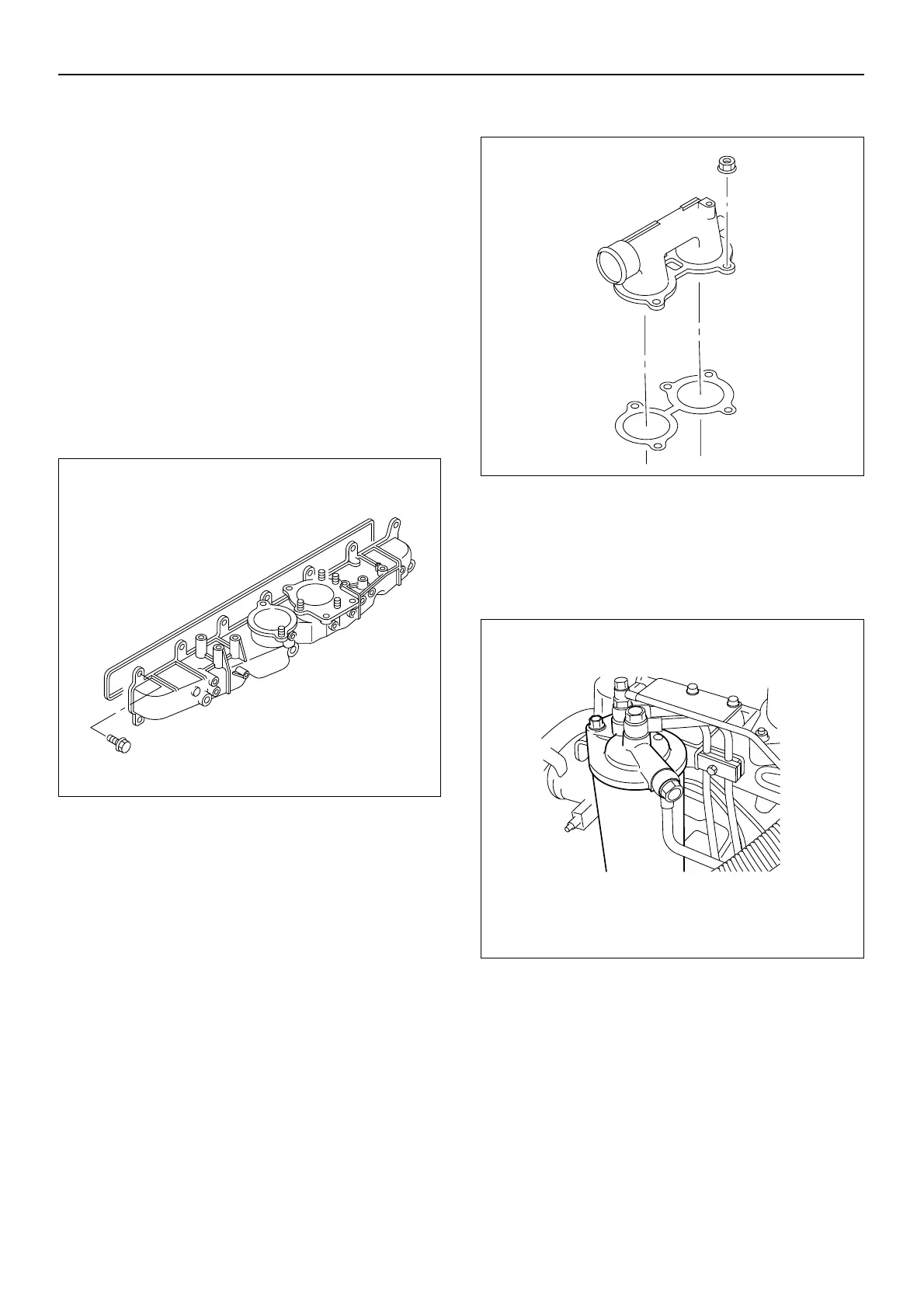

Installation
1. Install the intake cover with new gaskets.
• Tighten the bolts to the specified torque.
Torque: 15 N·m (1.5 kgm/11 lbft)
2. Install the intake pipe with new gasket.
Tighten the fixing nuts to the specified torque.
Torque: 20 N·m (2.0 kgm/14 lbft)
3. Install the fuel filter and bracket to the intake cover.
Tighten the fixing bolts to the specified torque.
Torque:
Fuel Filter: 39 N·m (4.0 kgm/29 lbft)
Bracket : 20 N·m (2.0 kgm/14 lbft)
025EY00017
041EY00003
025EY00016
To Next Page
