ENGINE MECHANICAL 6A–45

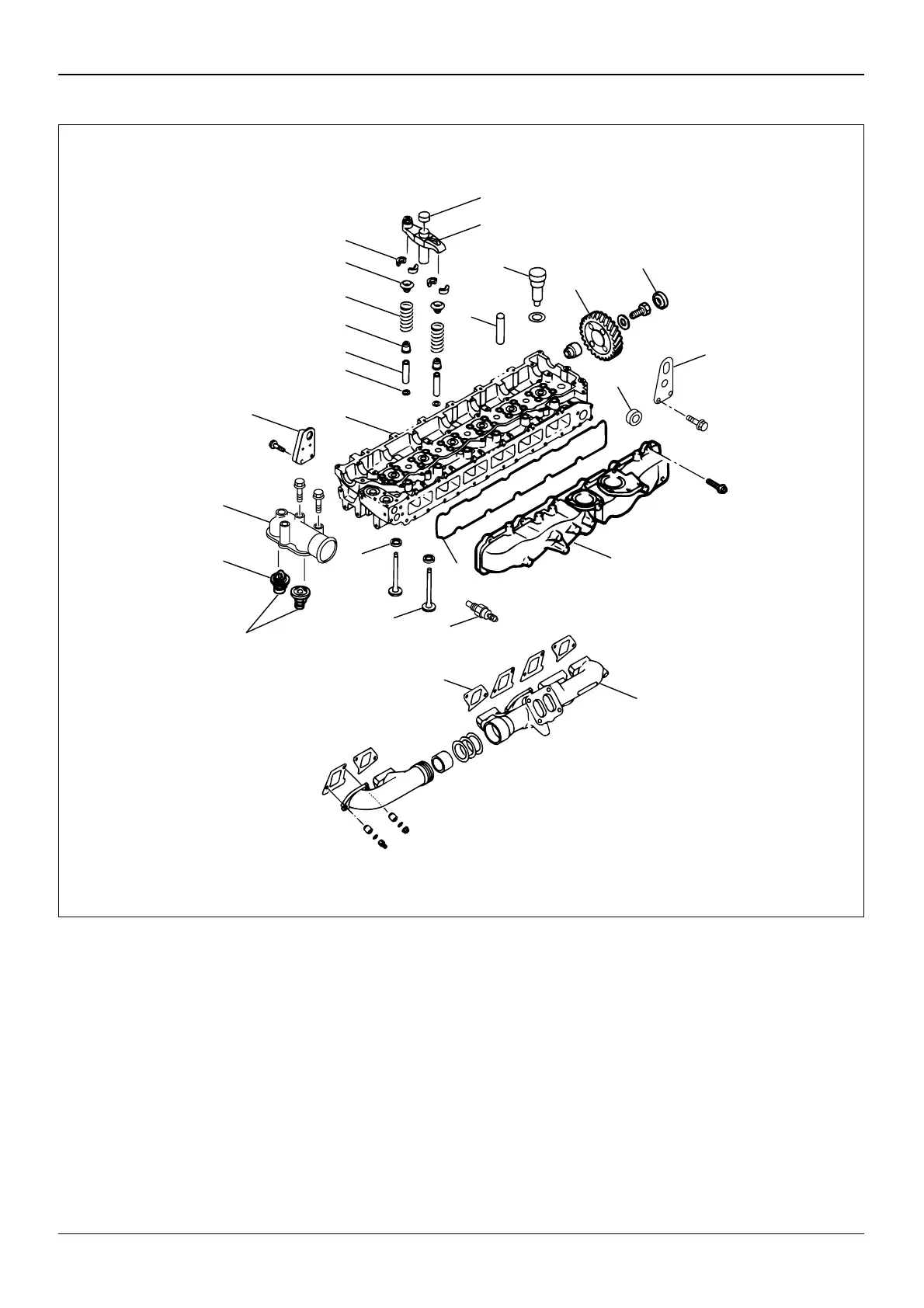

Disassembly
12
25
11
3
4
13
2
23
21
22
14
19
24
10
8
6
7
1
19
20
17
5
15
16
9
18
011EY00062
Legend
(1) Cylinder head cover
(2) Oil seal
(3) Bridge guide
(4) Nozzle sleeve
(5) Valve seat insert
(6) Valve guide
(7) Lower spring seat
(8) Valve stem seal
(9) Valve
(10) Valve spring
(11) Upper spring seat
(12) Split collar
(13) Idler gear C
(14) Idler gear cover
(15) Gasket
(16) Thermostat
(17) Water outlet pipe
(18) Overheat warning switch
(19) Hanger
(20) Gasket
(21) Exhaust manifold
(22) Gasket
(23) Inlet cover
(24) Bridge
(25) Bridge cap
