6A–16 ENGINE MECHANICAL
Installation

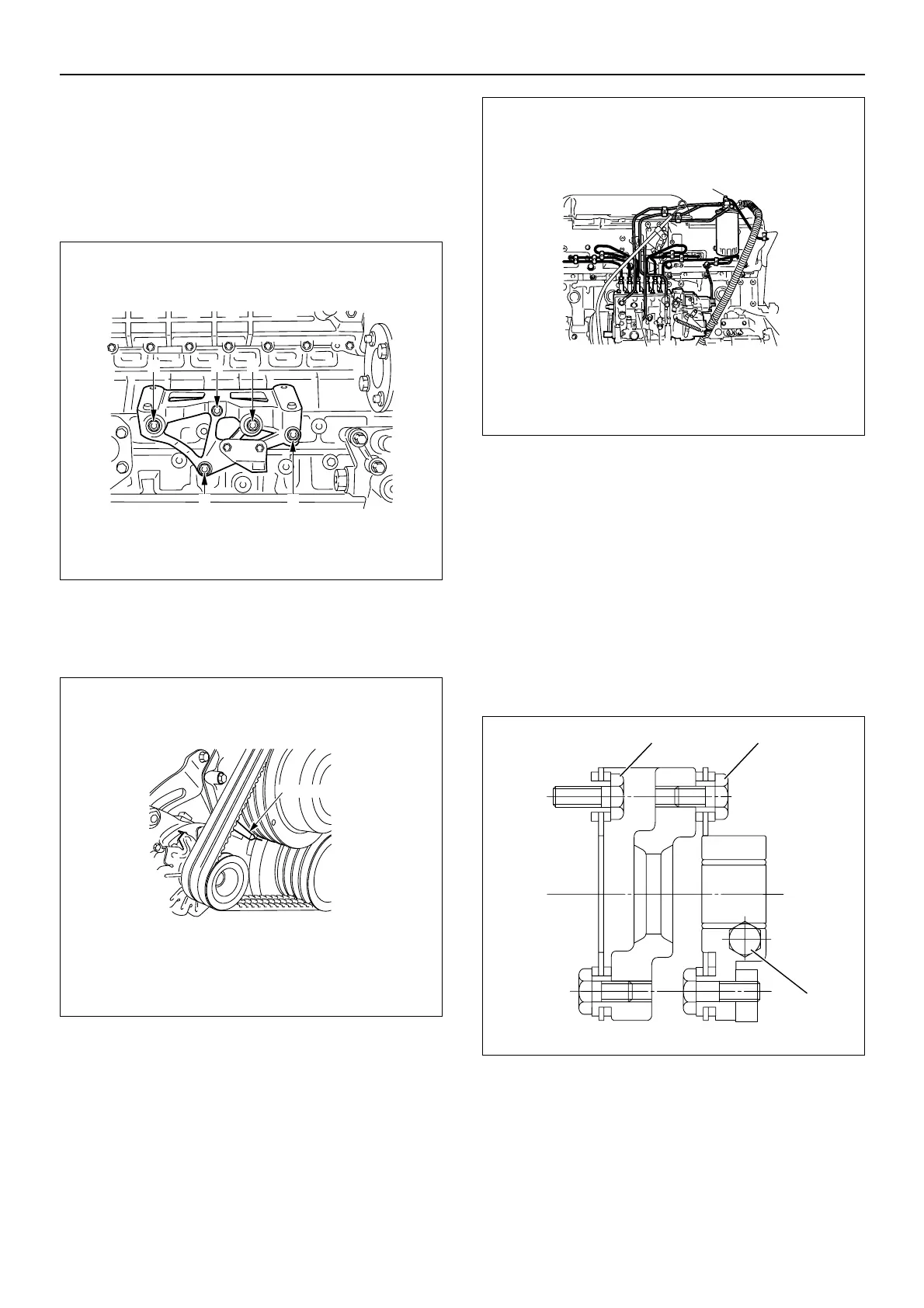

1. Install the injection pump bracket to the cylinder
block. Use the locating pin.
• Tighten the fixing bolts in the numerical order
shown in the illustration.
Torque: 50 N·m (5.1 kgm/37 lbft)
2. Align the injection timing mark on the damper with
the pointer on the front cover.
Injection Timing : 9° BTDC
3. Install the injection pump .
• Bring No. 1 cylinder to top dead center on the
compression stroke.
• Align the injection timing mark on the timing
advancer with the injection pump body pointer.
• Install the injection pump to the injection pump
bracket. Use the locating dowel pin.
• Tighten the injection pump fixing bolts to the
specified torque.
Torque : 44 N·m (4.5 kgm/33 lbft)
4. Loosen the adjusting bolt (2) and fasten the coupling
bolt (3) to the timing advancer.
Tighten the adjusting bolt (2) and fixing bolt (1).
Torque : 88 N·m (9.0 kgm/65 lbft)
• Verify that the injection timing is correct by turning
the crankshaft two turns in the normal direction of
engine rotation.
