6A–72 ENGINE MECHANICAL
1. Remove the oil pan.
Refer to “Oil Pan Removal” in this manual.

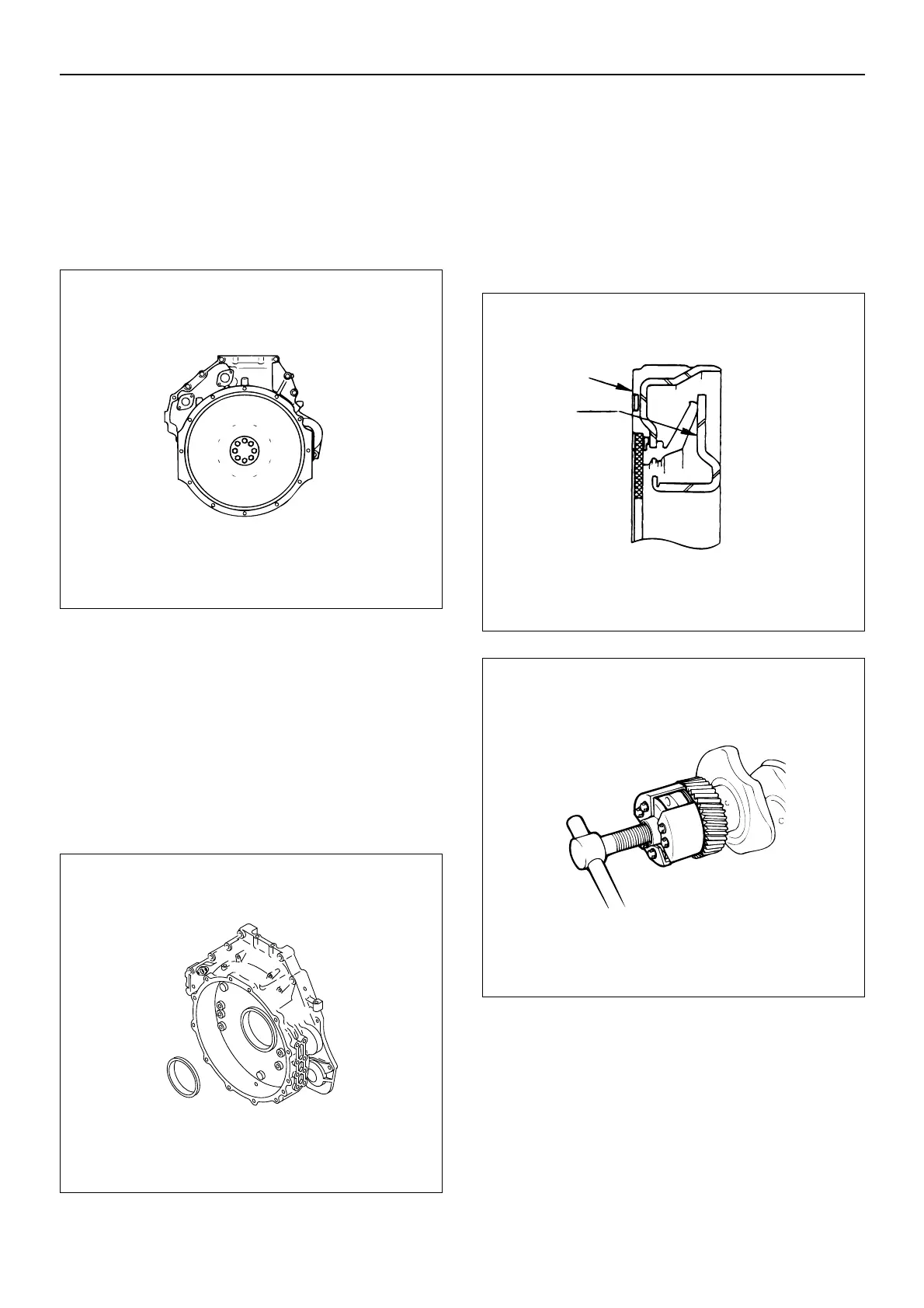

2. Loosen the flywheel fixing bolts to remove the
flywheel.
1. Block the crankshaft with a piece of hard wood to
prevent the flywheel from turning.
2. Loosen the flywheel bolts a little at a time in the
numerical order shown in the illustration.
3. Remove the cover for the idler gear D and the
gasket.
Discard the gasket
4. Loosen the idler gear shaft bolt.
5. Remove the idler gear and shaft.
Inspect the idler gear for damage or wear.
6. Remove the idler gear shaft supporting bolts.
7. Loosen the flywheel housing fixing bolts to remove
the flywheel housing.
8. Remove the rear oil seal.
9. Use the slinger remover 894396-8580 to remove the
slinger.
Take care not to damage the crankshaft.
CAUTION : Be careful not to damage the crankshaft
oil seal contact surface during the removal
procedure.
NOTE : If the oil seal has been removed, both the oil
seal and slinger must be replaced as a set.
Installation
1 Install the flywheel housing to the cylinder block.
1. Apply ThreeBond No. TB1201 or TB1207C or
equivalent to the flywheel housing fitting faces
and the area marked with an arrow in the
illustration.
2. Tighten the flywheel housing bolts to the specified
torque.
To Next Page
