6A–14 ENGINE MECHANICAL
Injection Pump
Removal

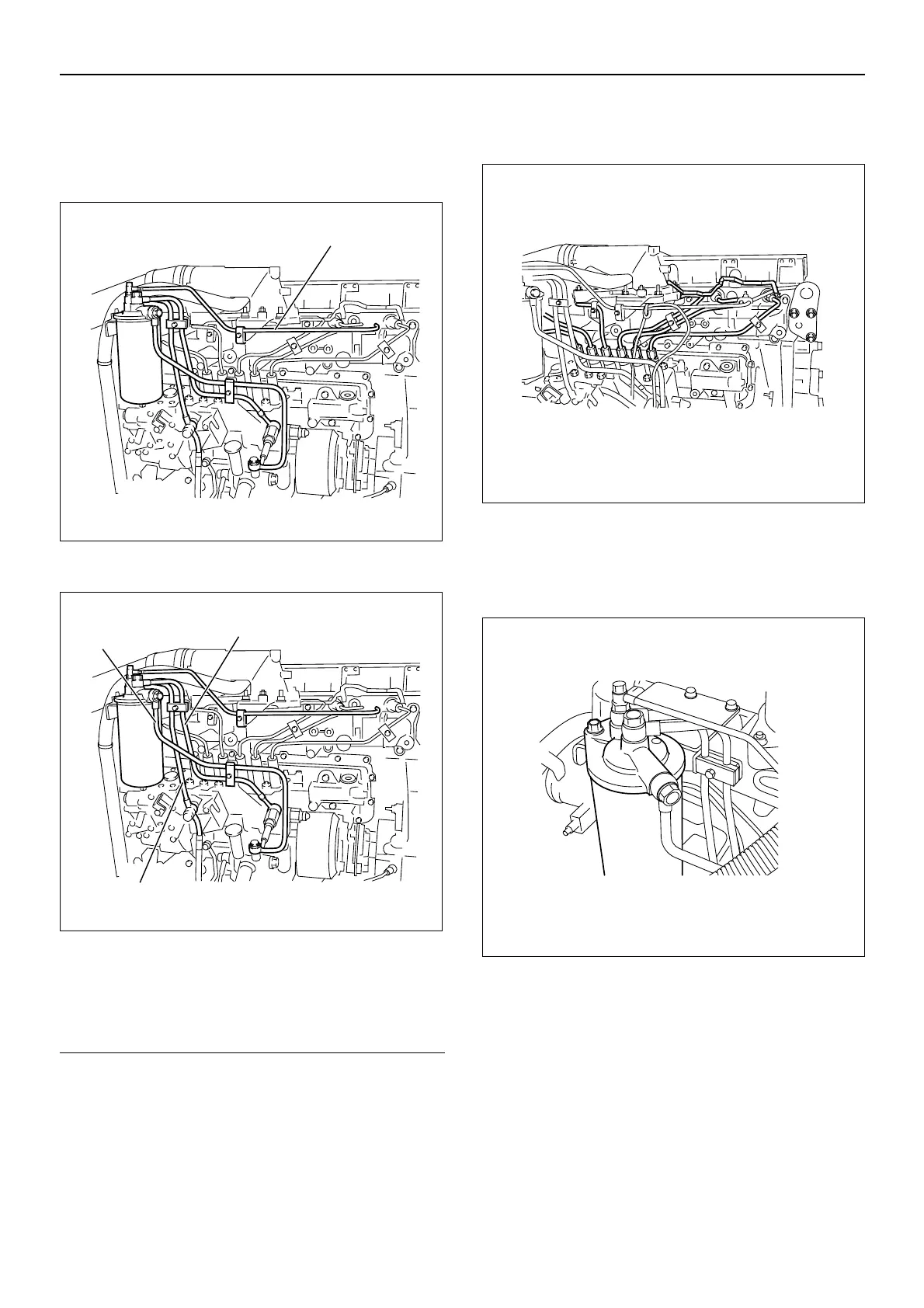

1. Remove the leak off pipe (1).
2. Remove the fuel pipes (1), (2) and (3).
Legend
(1) Fuel Pipe: Feed Pump to filter
(2) Fuel Pipe: Filter to Injection Pump
(3) Fuel Pipe: Return
3. Remove the injection pipe.
NOTE: Protect the joint openings of the injection pipe to
prevent the entry of foreign material.
4. Remove the fuel filter.
