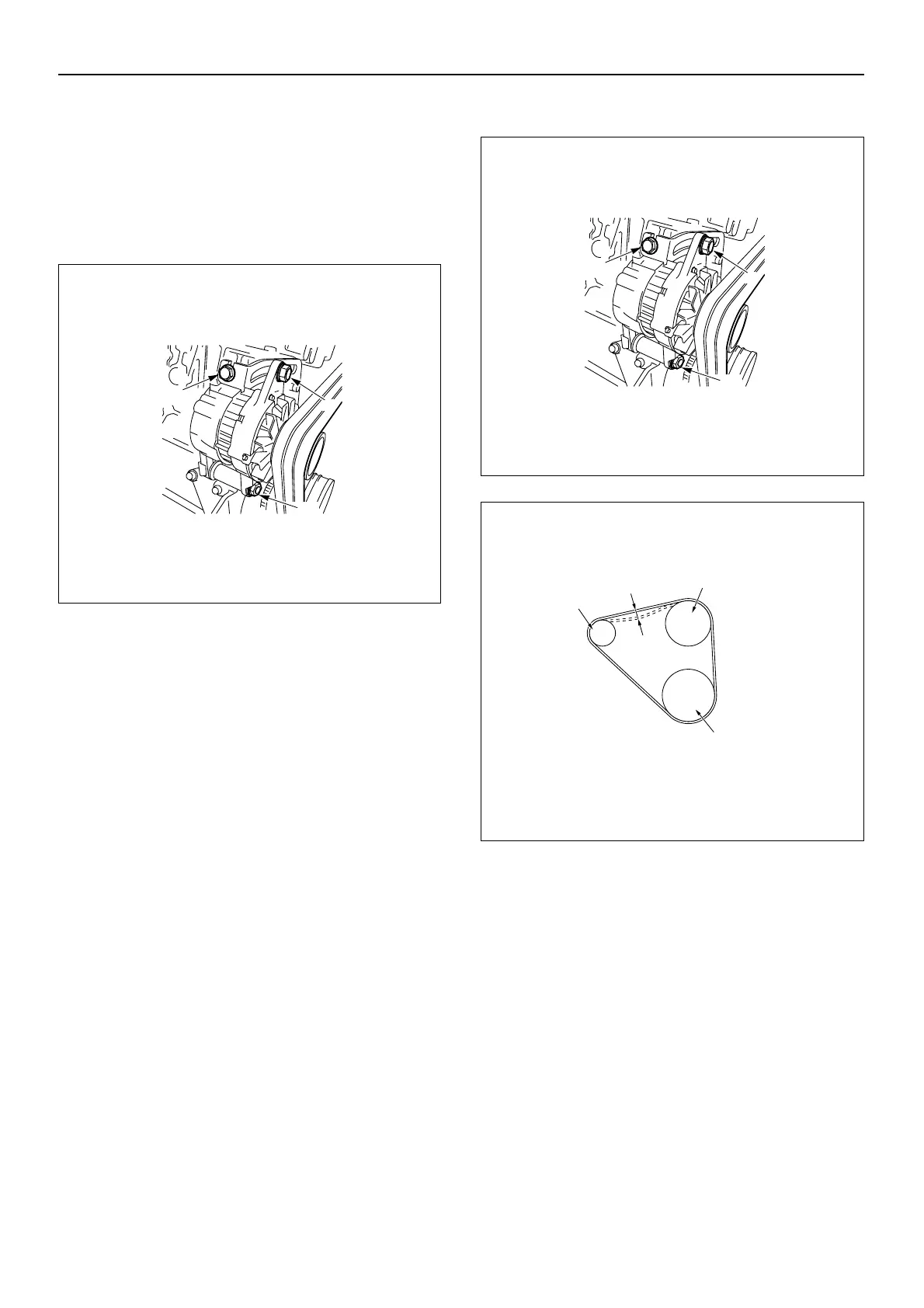

ENGINE MECHANICAL 6A–13
Alternator
Removal
1. Remove the sliding piece nut (1).
2. Remove the alternator mounting bolt (2).
3. Remove the fan belt.
4. Remove the alternator.
Installation
1. Install the alternator.
2. Install the adjusting plate.
3. Install the fan belt.
4. Adjust the belt tension by turning bolt (3).
• Depress the fan belt midway between the
alternator and the water pump.
Belt Deflection: 8 – 11 mm (0.31 – 0.43 in)
5. Tighten the adjusting plate fixing bolts to the
specified torque.
Torque: 49 N·m (5.0 kgm/36 lbft)
6. Tighten the alternator mounting bolt (2) to the
specified torque.
Torque: 127 N·m (12.9 kgm/93 lbft)
7. Tighten the slide piece nut (1) to the specified torque.
Torque: 76 N·m (7.7 kgm/56 lbft)
