6A–4 ENGINE MECHANICAL

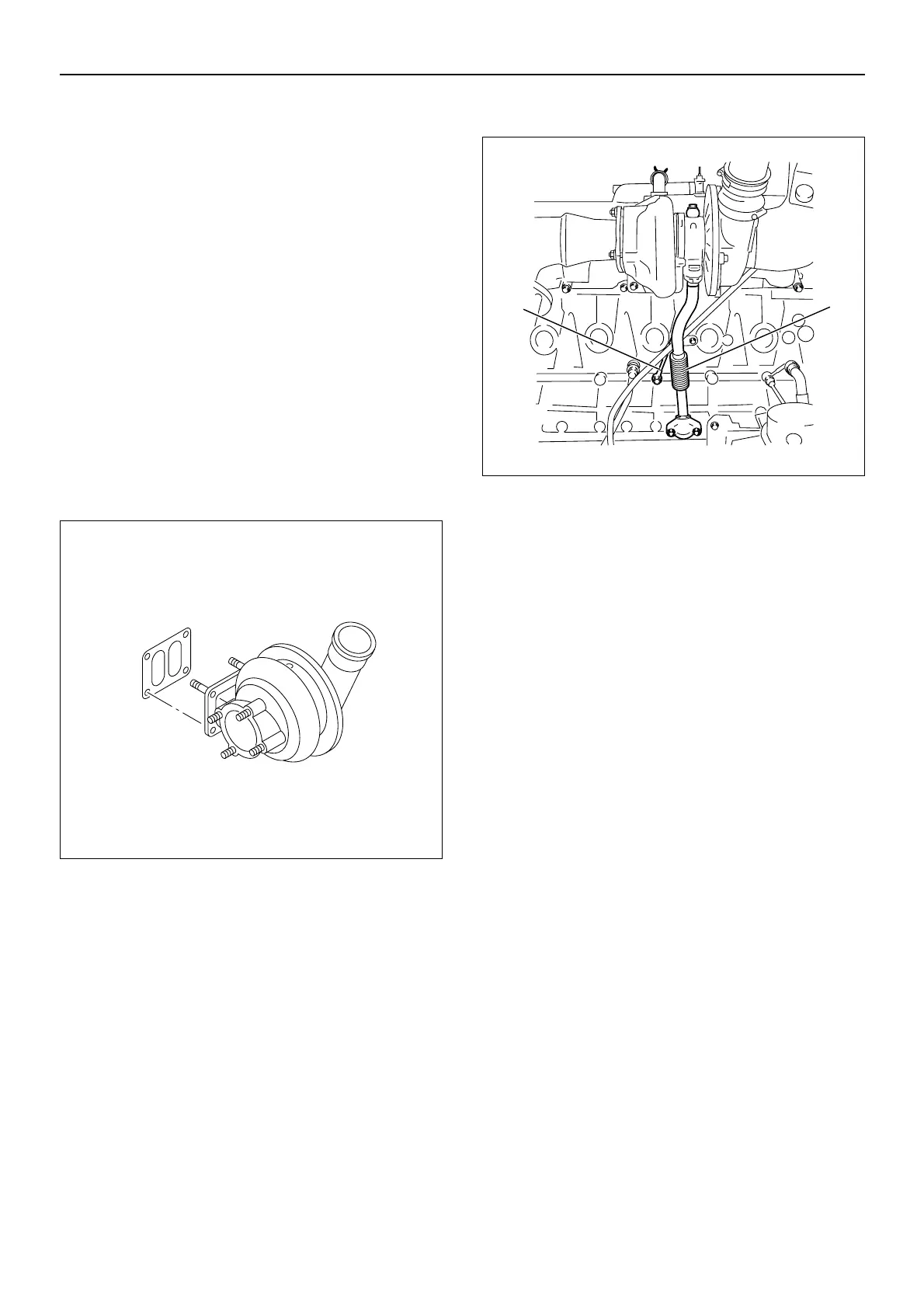

Turbocharger
Removal
1. Remove the oil feed pipe.
• Discard the gaskets.
2. Remove the oil drain pipe.
• Discard the gaskets.
3. Remove the turbocharger.
NOTE: Plug the turbocharger body oil ports and
openings to prevent the entry of foreign material.
Installation
1. Install the turbocharger assembly with the new
gasket to the exhaust manifold and tighten the nuts
to the specified torque.
Torque: 52 N·m (5.3 kgm/38 lbft)
NOTE: Lubricate the turbine shaft. Pour oil into the oil
feed hole while rotating the turbine wheel with your
hand.
2. Install the oil drain pipe (2) to the turbocharger and
tighten the bolts to the specified torque.
Torque: 34 N·m (3.5 kgm/25 lbft)
3. Install the oil feed pipe (1) to the turbocharger and
tighten the bolts to the specified torque.
Torque: 34 N·m (3.5 kgm/25 lbft)
036EY00002
