ENGINE MECHANICAL 6A–77

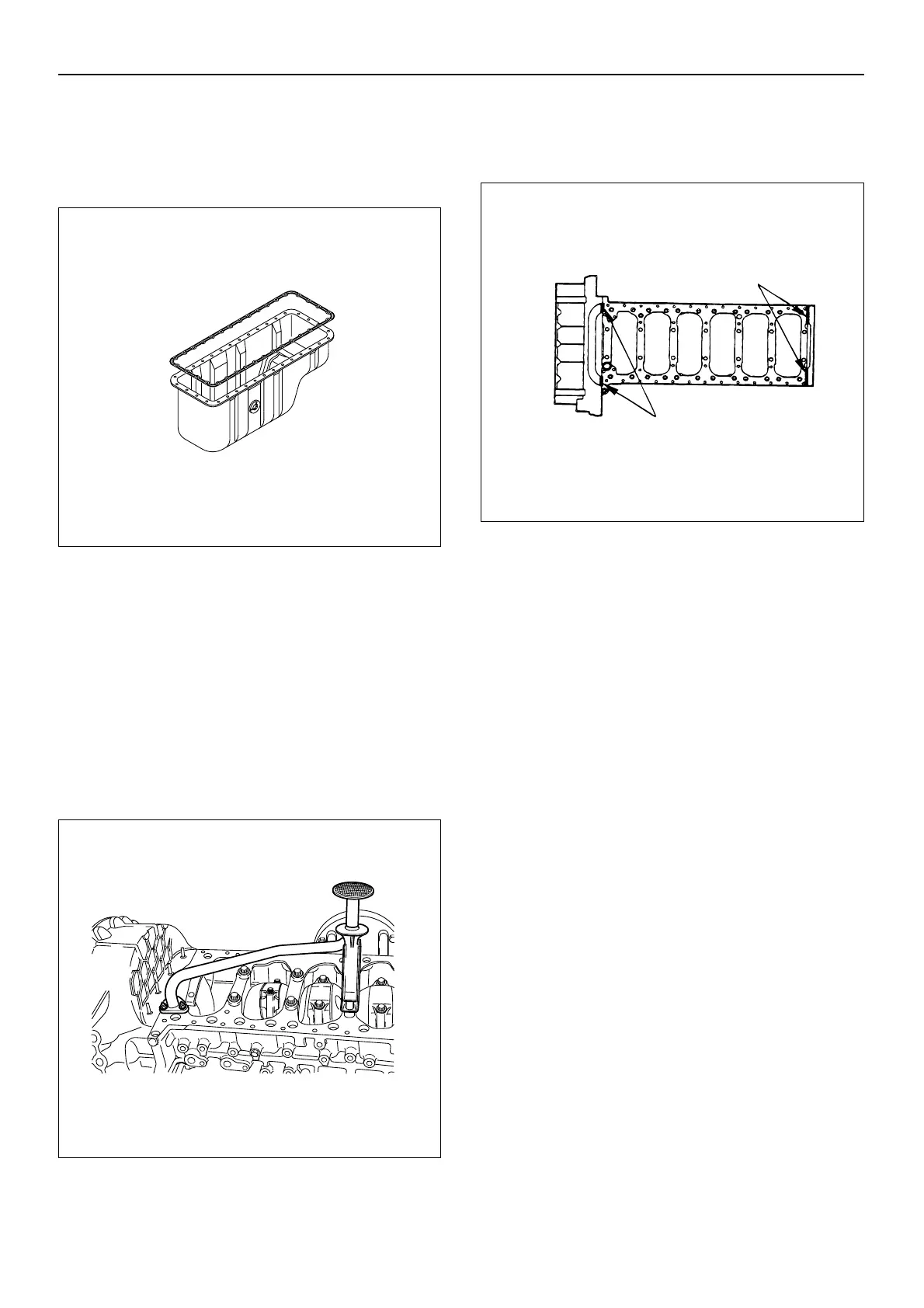

1. Remove the breather hose clip.
2. Loosen the fixing nuts and bolts to remove the oil
pan and gasket.
• Clean the lower cylinder block surfaces and
remove the sealant residue.
3. Discard the oil pan gasket.
4. Remove the oil strainer from the cylinder block.
Clean the oil strainer.
Installation
1. Install the oil strainer with new gasket.
• Tighten the fixing bolts to the specified torque.
Torque:
M8 Bolt : 24 N·m (2.4 kgm/17 lbft)
M10 Bolt: 48 N·m (4.9 kgm/35 lbft)
2. Apply a 3 mm bead of sealant (Three Bond
No.1207C or equivalent) to the cylinder block and
flywheel housing fitting faces (1) and the crankcase
fitting faces (2).
NOTE: Do not damage the oil pan gasket as it is coated
with rubber.
3. Install the oil pan with new gasket to the cylinder
block.
• Tighten the oil pan nuts and bolts to the specified
torque.
Torque : 25 N·m (2.5 kgm/18 lbft)
013EY00002
013EY00039
