3 - 9
Section E Hydraulics
9803/6020
Section E
3 - 9
Issue 1
Schematics

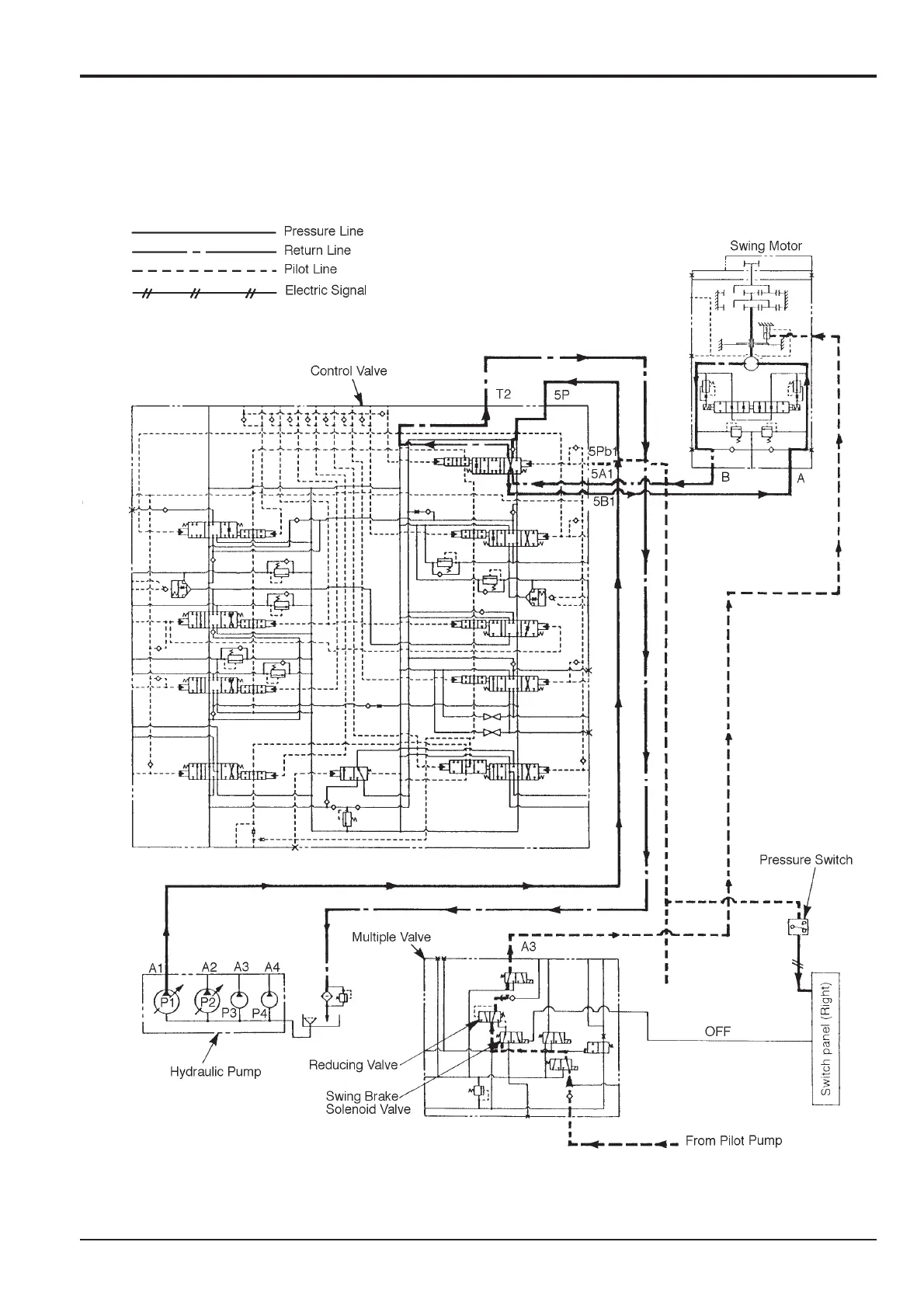

Swing Operation (0% Swing Brake)
289440
A
B
C
D
E
F
N
M
L
K
H
J
G
P1
P
