jcb JS70 Service Manual

2 - 1
Section C Electrics
9803/6020
Section C
2 - 1
Issue 1
Technical Data
Circuit Protection;
Fuse rating and circuit names
! CAUTION
Fuses
Always replace fuses with ones of correct ampere rating
to avoid electrical system damage.
8-3-3-5
Fuses

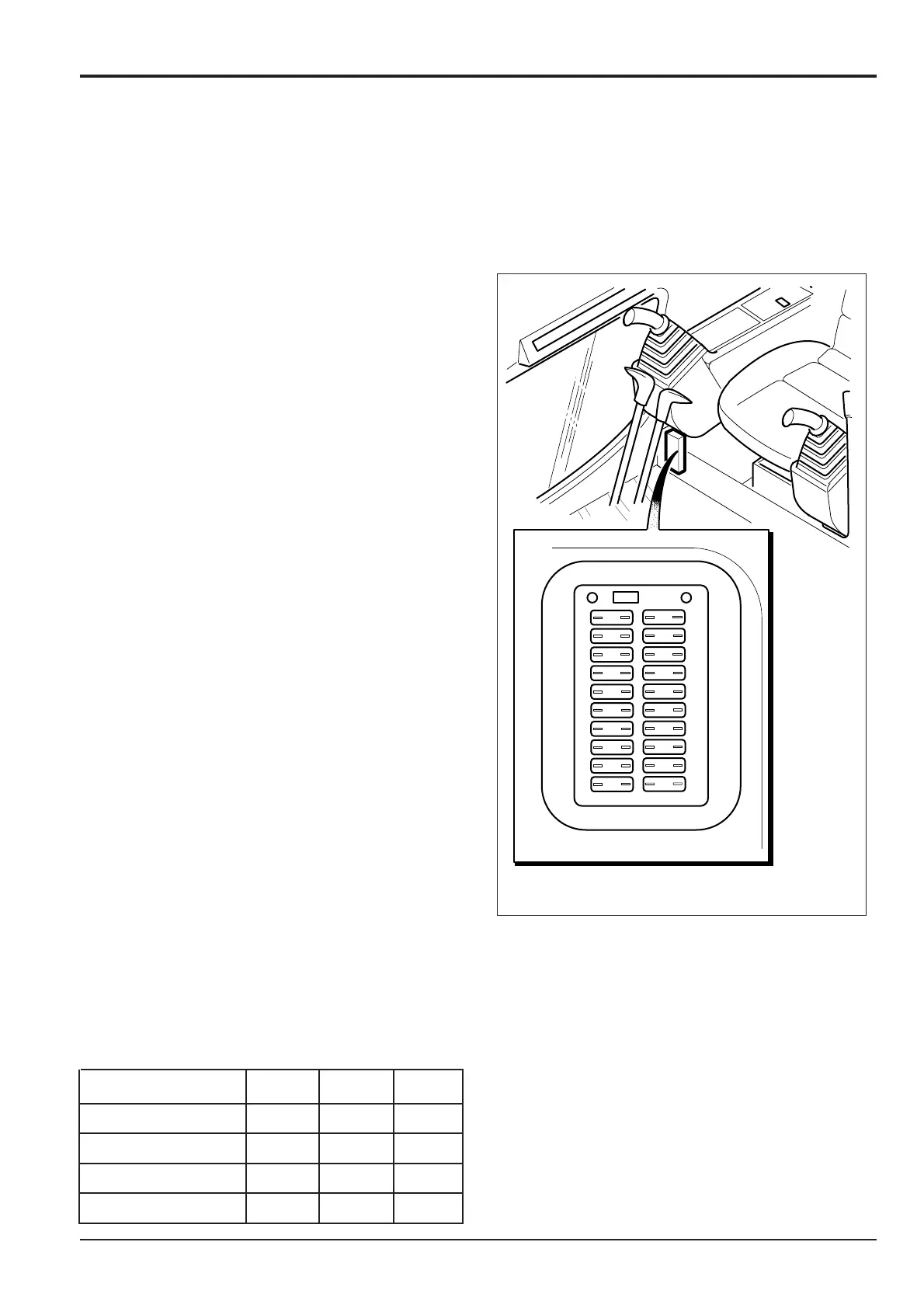

The electrical circuits are protected by fuses located in fuse
box A on the front face of the right console (below the Right
Excavator Joystick).
If a fuse blows, find out why before fitting a new one.
Fuse Box A
Fuse No. Circuit(s) Protected Rating
1 Emergency Back-up Switch 10 A
2 Ignition Switch 10 A
3 Air Conditioning Blower (if fitted) 20 A
Heater
4 Working Lights 15 A
5 Spare 15 A
6 Working Lights (Optional) 15 A
7 Spare 15 A
8 Windscreen Wiper/Washer 10 A
9 Horn 10 A
Cab Light
10 Radio 10 A
Cigar Lighter
11 Computer (Power) 15 A
12 Computer (Control) 10 A
13 Emergency Engine Stop Switch 15 A
14 Servo Isolation 10 A
15 Spare 10 A
16 Flashing Beacon 10 A
17 Re-fuelling Pump 20 A
18 Air Conditioning Condenser (if fitted) 15 A
19 Spare 10 A
20 Spare 10 A
JS08750
10
10
20
15
15
15
15
10
10
10
15
10
15
10
10
10
20
15
10
10
1
2
3
4
5
6
7
8
9
0
!
@
£
$
%
^
&
*
(
)
A
Lighting and Horn
Voltage Wattage No. off
Working light Tank 24 V 70 W 1
Boom 24 V 70 W 1
Roof light Cab 24 V 10 W 1
Horn 24 V 2
