13 - 3
Dismantling (cont’d)

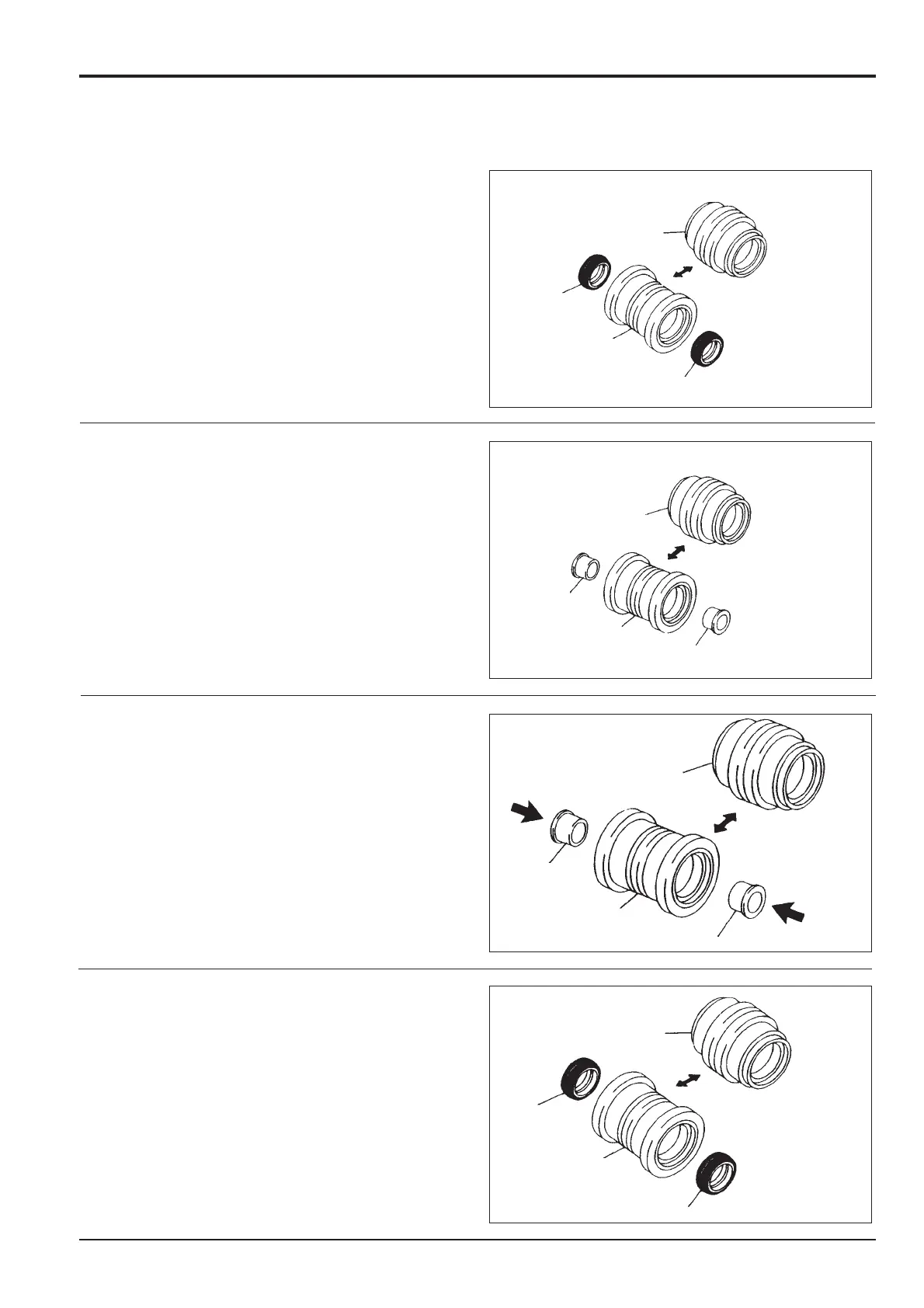

5 Remove floating seals F from roller H or J using a pry
bar.
6 If badly worn or damaged, remove and discard bushes
K from roller H or J, using a press or puller. Otherwise
do not disturb.
Protect parts from moisture and dust if left dismantled
for some time.
Assembly
1 Clean all parts thoroughly in a suitable solvent. Dry
shaft and bore of roller using compressed air in a place
free of dust and moisture.
Check components for wear. Polish out scratches and
roughness using an oil stone. Then apply a coat of
engine oil to all parts.
If being replaced, install bushes K into roller H or J,
using a dolly and hammer.
2 Install new floating seals F into roller H or J.
Section J Track and Running Gear
9803/6020
Section J
13 - 3
Issue 1
Bottom Roller
J
F
H
F
J
K
H
K
J
K
H
K
J
F
H
F
