4 - 2

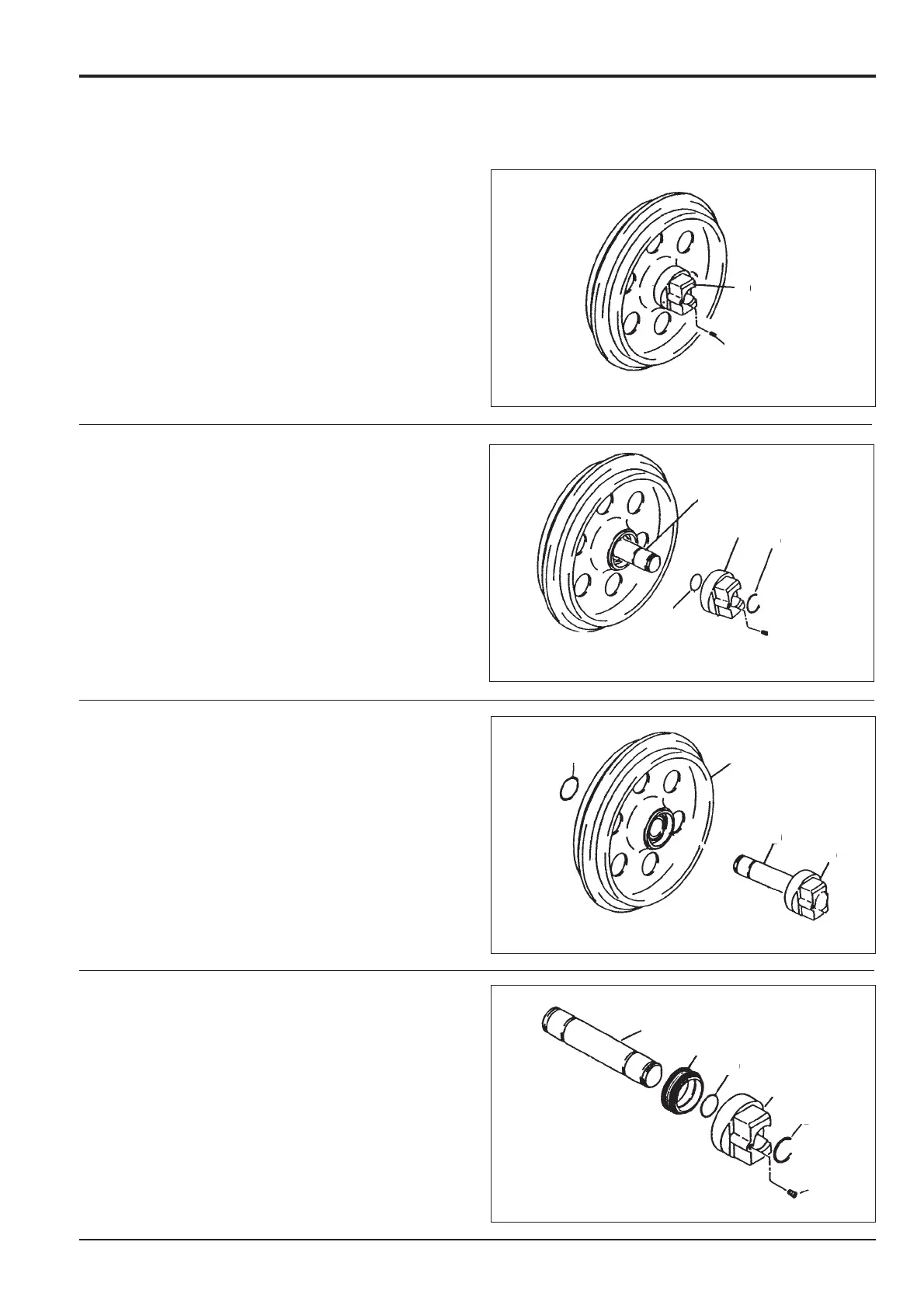

Dismantling
1 Carry out steps 1 to 4 of Idler Wheel and Recoil Unit,
Removal.
Clean the idler wheel with a suitable solvent. Remove
the plug H from hub C and drain the oil.
2 On the rear side of the unit only, remove the wire clip G
and separate the hub C from shaft B. Discard the wire
clip.
3 Remove the rear side 'O'-ring F from shaft B. Pull out
the shaft B from the idler wheel A. Discard the ‘O’ ring.
4 Remove the wire clip G and separate hub C from shaft
2. Remove 'O'-ring F from shaft B. Discard the wire
clip and the ‘O’ ring
.
Section J Track and Running Gear
9803/6020
Section J
4 - 2
Issue 1
Idler Wheel
284250
284260
284270
284290
C
H
B
C
G
H
F
A
B
C
B
E
F
C
G
B
F
