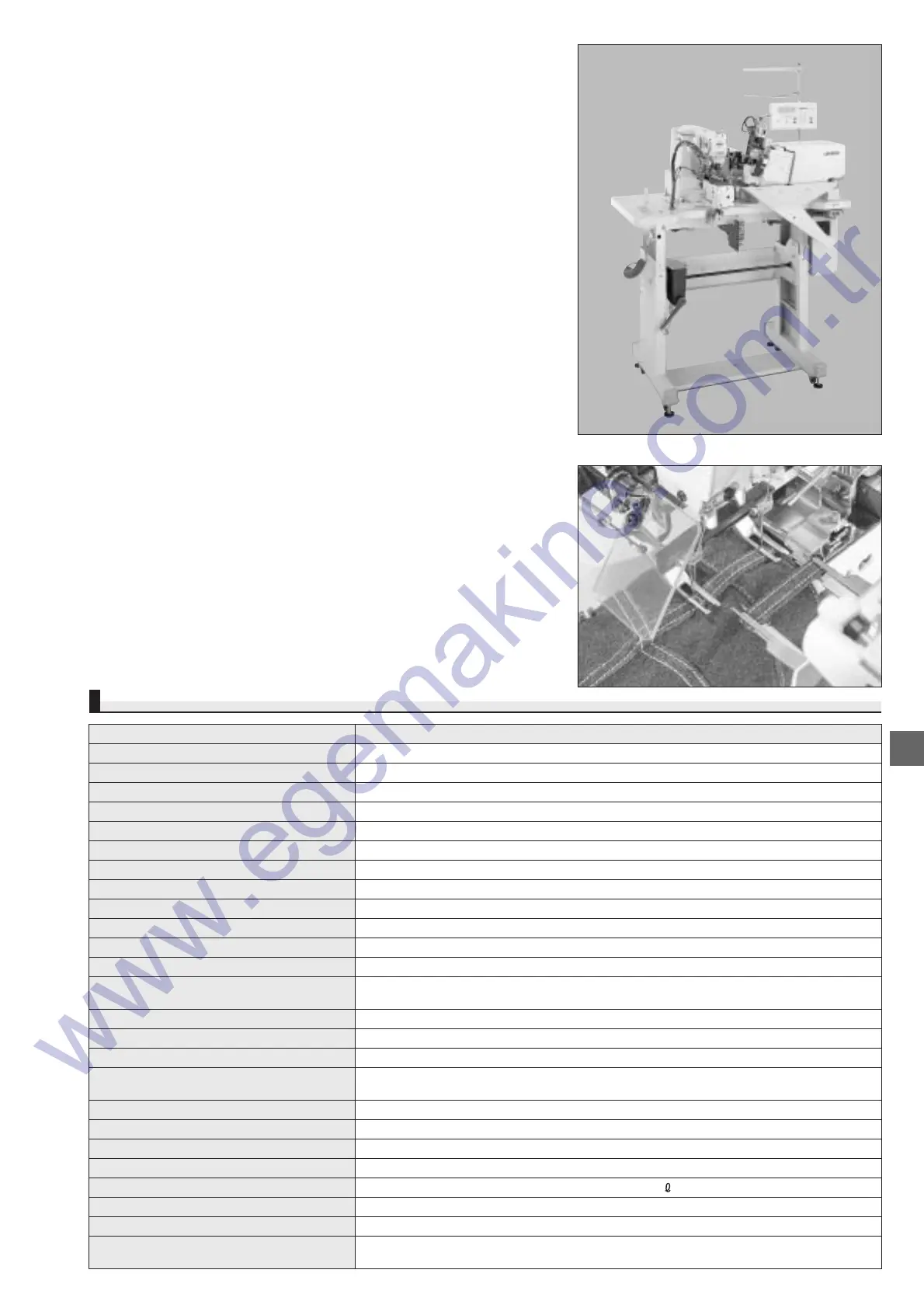

MOL-254 (September, 2003) 1/2
MOL-254
● The new machine head specifically developed for belt-loop attaching
machines runs at a maximum sewing speed of 2,500rpm and is equipped
with a direct-drive system that improves start up performance and
shortens sewing time.
● The belt-loop feeding device is now provided with a halfway standby
capability for subsequent belt-loops, and its faster belt-loop supply action
shortens the time required for supplying belt-loops and helps speed up
the machine time to 1.2 seconds per belt-loop (with 28 stitches).
● Belt-loops are fed out by the conventional gear-roller feeding mechanism
and also drawn out by the new drawing mechanism on the clamp device.
Supported by these two mechanisms, the folding fork catches "curled" or
"creased" belt-loops every time and supplies them to the head.
● The machine preliminarily detects each splice in the belt-loops and
efficiently disposes them. This means that even when the machine
carries out the splice-disposal procedure, the belt-loop feeding device
can complete its belt-loop supply action and supply the next belt-loop
well before the machine starts to sew. As a result, the operator can
perform rhythmical and efficient sewing work with no delay in cycle time.
● The number of stitches to sew a belt-loop can be switched between; 28-,
36- and 42-stitches, and the bartacking size can be easily changed
through the operating panel. What's more, the user can create his/her
own original sewing patterns in addition to the standard ones using
JUKI's PGM-20 programming software developed for computer-controlled
sewing machines.
MOL-254
Automatic 2-needle Belt-loop Attaching Machine
SPECIFICATIONS
Model name
Machine head
Max. sewing speed
Thread take up
Needle bar stroke
Thread
Needle (at the time of delivery)
Hook
Lift of the presser foot
Number of stitches
Needle gauge
Bartacking length
Bartacking width
Number of pieces of bartacking data
that can be stored in memory
Belt-loop width
Finished length of belt-loop
Machine time
Positioning of the front hook
Bobbin winder
Lubrication
Lubricating oil
Power requirement and power consumption
Compressed air and air consumption
Total weight
Dimensions
Height of the top surface of the throat
plate as from the floor surface
MOL-254
Computer-controlled, 2-needle, lockstitch bartacking machine
2,500rpm
Link type
45.7mm
Spun thread, cotton thread #50〜#30, B33〜B46, Nm=120/3〜60/3
DP×17 (#21) #19〜#21
Horizontal-axis 1.8 fold-capacity shuttle hook
21mm
28, 36, 42 (selectable on the operating panel)
40〜70mm (1-37/64"〜2-3/4")
7〜22mm (9/32"〜55/64")〈adjustable in increments of 0.1mm〉
1〜3.2mm (3/64"〜1/8")〈adjustable in increments of 0.1mm〉
9 (99 patterns if optional ROM is added)
9〜20mm (23/64"〜25/32")
48〜78mm (1-57/64"〜3-5/64")
1.2 sec./belt-loop (28 stitch)
Driven by motor
(the distance between the hook can be established in increments of 0.01mm)
Electric type (provided as standard)
Centralized oil wick lubrication (machine head)
JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Single-/3-phase, 350VA
0.5MPa (5kgf/cm
2
), 32N /min
230kg
1,200mm (W)×800mm (D)×1,350mm (H: in its lowest end)
920〜1,250mm (provided with the adjustable stand capability)
