LS-1340, LS-1341, LS-1342, LS-1342-7 (September, 2003) 1/3
LS-1342-7-0BB/XC-E500
● With its larger needlebar stroke, larger lift of the presser
foot, and newly adopted double-tension mechanism, the
machine sews beautifully with thick threads (low count
thread) and at higher thread tensions. This allows the
machine to sew a broad range of heavy materials.
＊The LS-1340 is provided with a single-tension mechanism.
● The newly developed mode of highly rigid rectangular feed
guarantees outstanding feed performance. In addition,
the ratio between the alternating vertical movements of the
walking foot and presser foot remains unchanged even
when the material thickness changes. With this feature,
the machine sews multi-layered parts of the material
consistently and without stitch gathering.
● The machine is equipped as standard with a mechanism to
correct uneven material feed by making-micro adjustments
to the bottom-feed.
● The slimmed-down throat plate easily responds to the
sewing of small tubular articles with diameters as small as
φ40mm.
This enhances the machine's ability to smoothly sew not
only bags and shoes, but also small articles such as wallets.
● LS-1342, LS-1342-7
The vertical stroke of the presser foot and walking foot
(amount of alternating vertical movement) can be easily
changed with the large dial mounted on the top of the
machine head. The sewing speed is automatically
regulated based on the vertical stroke setting.
This ensures ideal sewing conditions at all times.
● LS-1342-7
The machine is provided as standard with an instantaneous
change-over device for the alternate vertical movement
amount (DL device).
For sewing processes that handle heavy materials
or multi-layered parts of material, the alternating vertical
movements of the walking foot and presser foot can be
quickly set to maximum by pressing the DL switch.
The result is beautiful seams free from gathered stitches.
LS-1340
LS-1341
(with large vertical-axis hook)
LS-1342
(with large vertical-axis hook and gauge for small articles)
LS-1342-7
Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine
with Vertical-axis Hook
(with large vertical-axis hook, gauge for small articles,
and automatic thread trimmer)

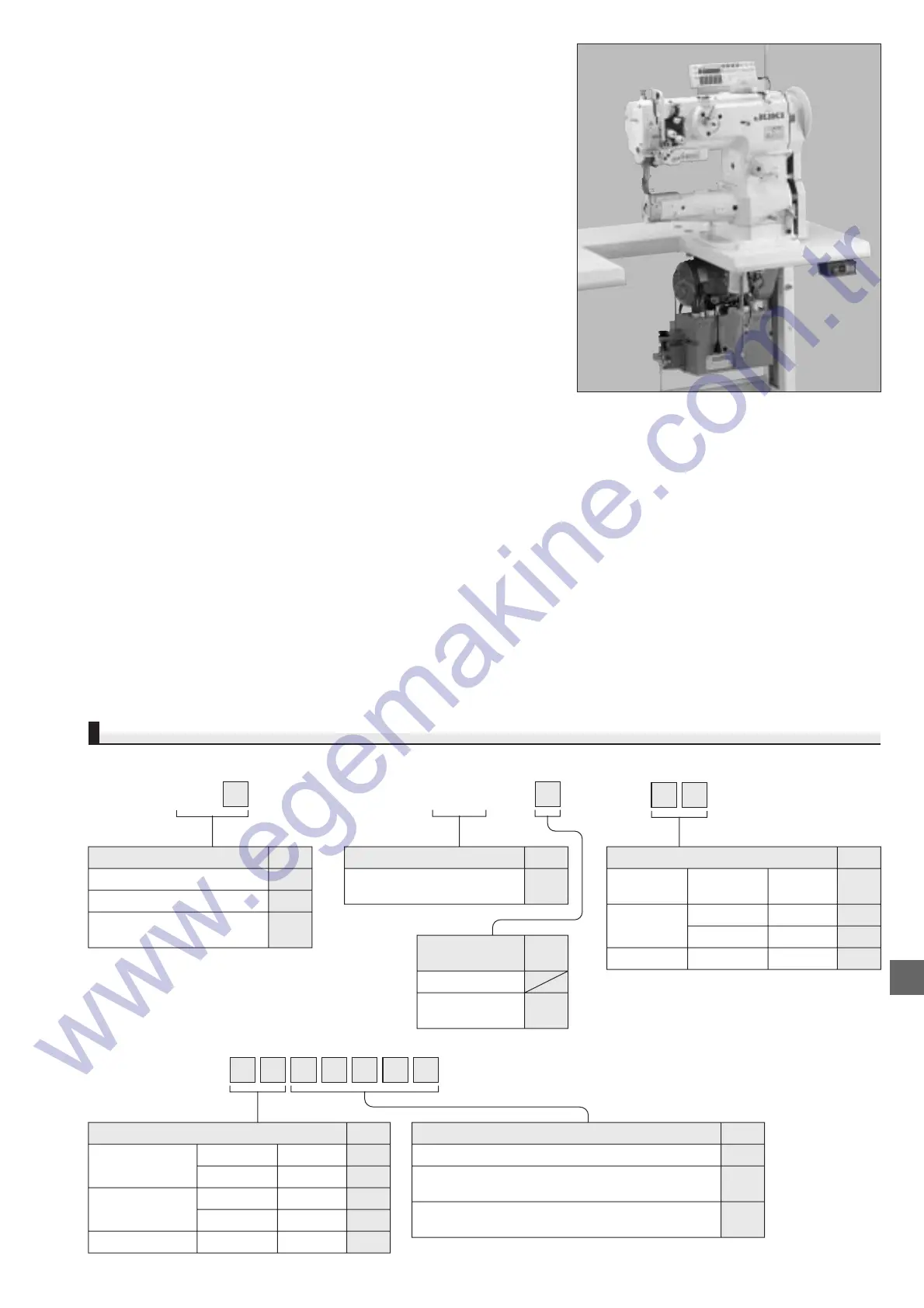

WHEN YOU PLACE ORDERS
LS134 LS134270B
●
Without automatic thread trimmer
●
With automatic thread trimmer
＊For the LS-1342, a servomotor or motor with an
electronic stop mechanism should be used.
(Speed control is required.)
Code
1340
1341
1342
Specification
Vertical-axis standard hook
Vertical-axis 1.6 fold-capacity hook
Vertical-axis 1.6 fold-capacity hook/
Gauge for small articles
＊
Code
B
Pneumatic
auto-lifter
Not provided
Pedal switch type
(AK123C)
Code
1342
Specification
Vertical-axis 1.6 fold-capacity hook/
Gauge for small articles
● PSC box/operation panel for SC
● Motor for SC
SC380
PSC box
220〜240V
200〜220V
110〜120V
220〜240V
220〜240V
Single-phase
3-phase
Single-phase
3-phase
Single-phase
For General Export
For JUS (LA)
＊
For EU (CE)
Operation panel
Not provided
Operation panel display language: English.
Instruction manual comes in three different languages.
Operation panel display language: English.
Instruction manual comes in five different languages.
Code
07
11
37
38
34
Motor
200〜240V
100〜120V
200〜240V
200〜240V
Single-phase
3-phase
Single-phase
3-phase
Single-phase
For General
Export
For JUS (LA)
＊
For EU (CE)
Code
60
61
62
63
Code
00000
E500B
E500C
＊JUS: North America and Central and South America.
M
To Next Page
