NOTE: For SRX320 Services Gateways, which can be mounted on a wall,
the antennas can be mounted as shown in Figure 15 on page 80.

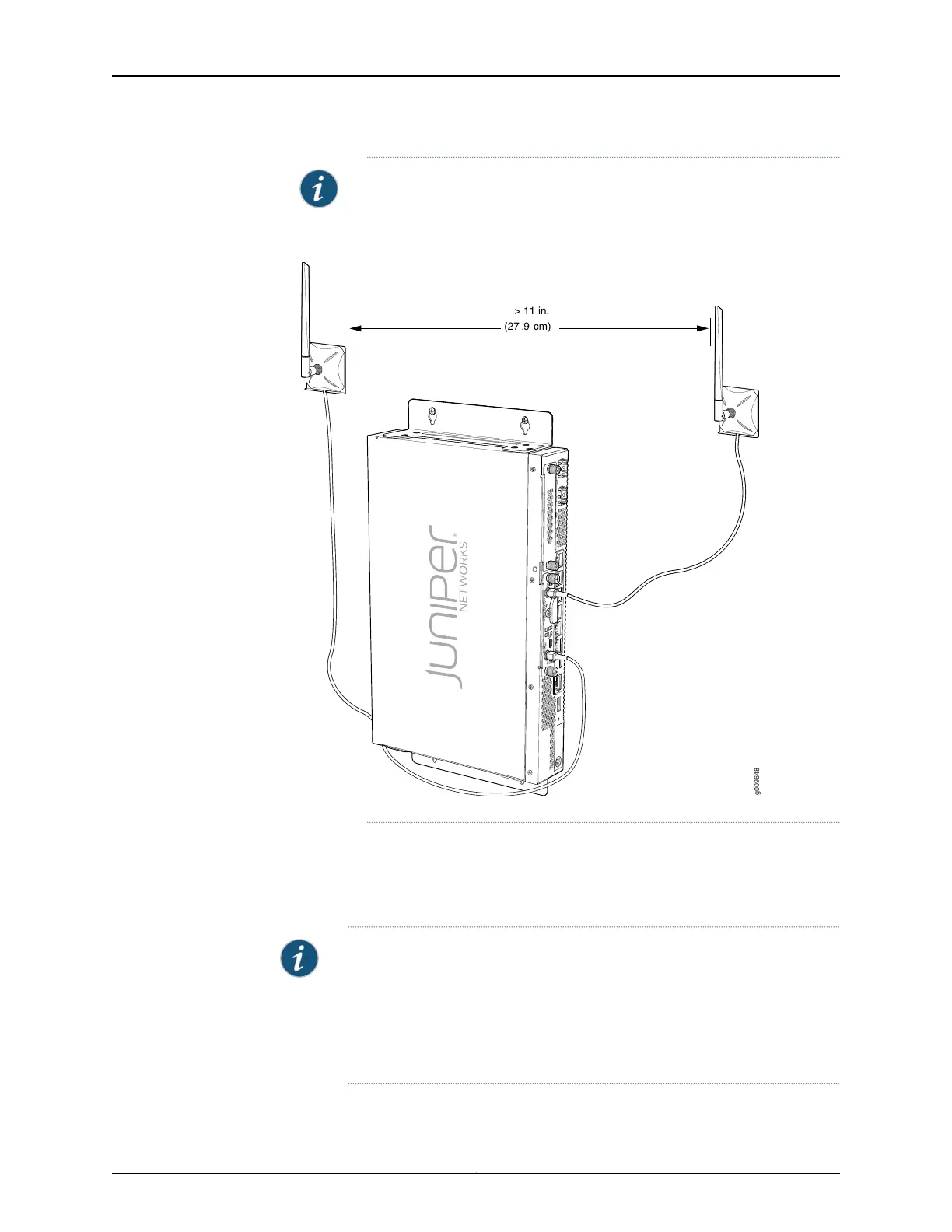

Figure 15: Mounting the Antennas on a Wall
g009648
(27 .9 cm)
> 11 in.
11. Power on the services gateway.
Configuring the LTE Mini-PIM
NOTE: If a services gateway with factory-default settings is powered on with
the LTE Mini-PIM installed in slot 1, the dialer interface is triggered to dial
automatically. This functionality is applicable only if the Mini-PIM is installed
in slot 1. If the Mini-PIM is installed in any other slot, then you will need to
manually configure the cl-slot-number/0/0 interface to be associated with
the dialer interface.
Copyright © 2017, Juniper Networks, Inc.80
SRX300 Series and SRX550 High Memory Gateway Interface Modules Reference

Juniper SRX320 Specifications

General

Firewall throughput	1000 Mbit/s
Number of users	50 user(s)
Quality of Service (QoS) support	Yes
Mobile VPN IPSec	250
IPS/IDS throughput	100 Mbit/s
USB 2.0 ports quantity	1
Connectivity technology	Wired
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	6
Internal memory	4000 MB
Flash memory	8000 MB
Storage media type	Flash
Power consumption (typical)	27 W
Heat dissipation	157 BTU/h
Concurrent connections	64000
Mean time between failures (MTBF)	284700 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, IS-IS, OSPF, RIP-1, RIP-2

Weight and Dimensions

Weight	1510 g
Dimensions (WxDxH)	299.9 x 43.9 x 191 mm
