Front View and Controls
Remove the stand assembly before mounting the TV onto the wall.
• If you are wall mounting your TV you may wish to buy a 90° HDMI adapter. This will help with your cable management.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our Call Centre on (UK) 0344 561 1234 or (Ireland) 1 890 818 575.
Our Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

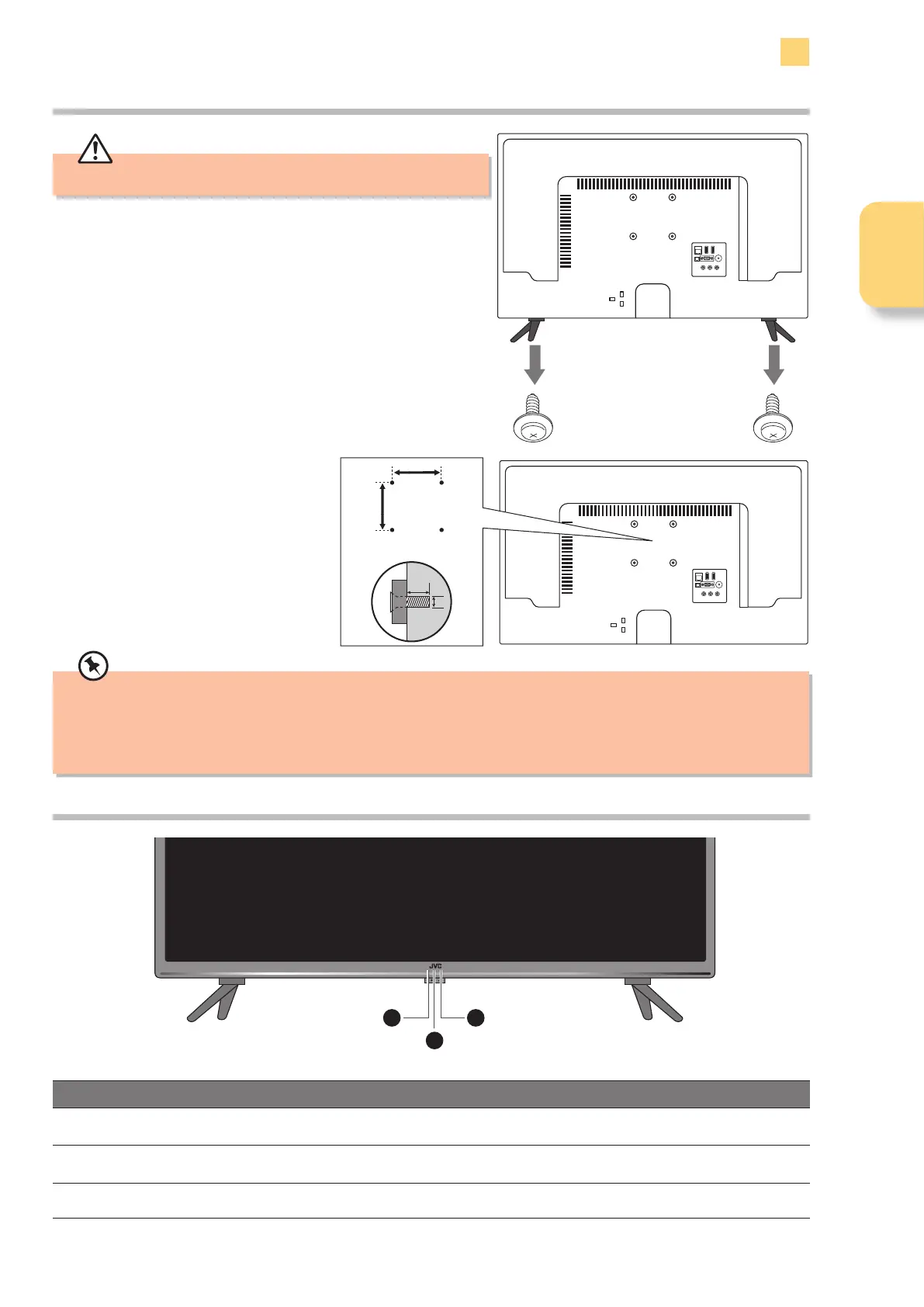

Mounting the TV to a Wall
Preparation
1. Remove the screw from each leg and detach.
2. This TV is designed to be wall-mounted
with a standard 75 mm x 75 mm
mounting kit (sold separately) designed
for flat-panel TVs. Mount this TV
according to the instructions included
in the mounting kit. Due to space
restrictions, we recommend that you
make all connections before mounting
on to the wall.
SPDIF
Optic.OUT
VGA
ANT.
HDMI 2
(ARC)
HDMI 3
LAN
AV IN
SPDIF
Optic.OUT
VGA
ANT.
HDMI 2
(ARC)
HDMI 3
LAN
AV IN
75mm
Four mounting holes
(size M4 screw)
75mm
5-8mm
M4
Item Description
1 POWER LED
Illuminates when the TV is in standby mode. The LED will blink confirming that a timer
recording programme has started in the standby mode.
2 IR (Infrared Receiver)
Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 STANDBY/ON BUTTON Switches the TV into standby and on.
1
3
2
To Next Page
