KARCHER Surface Cleaner 9.802-898.0
105
MACHINE À LAVER À HAUTE PRESSION
MANUEL DE L'UTILISATEUR

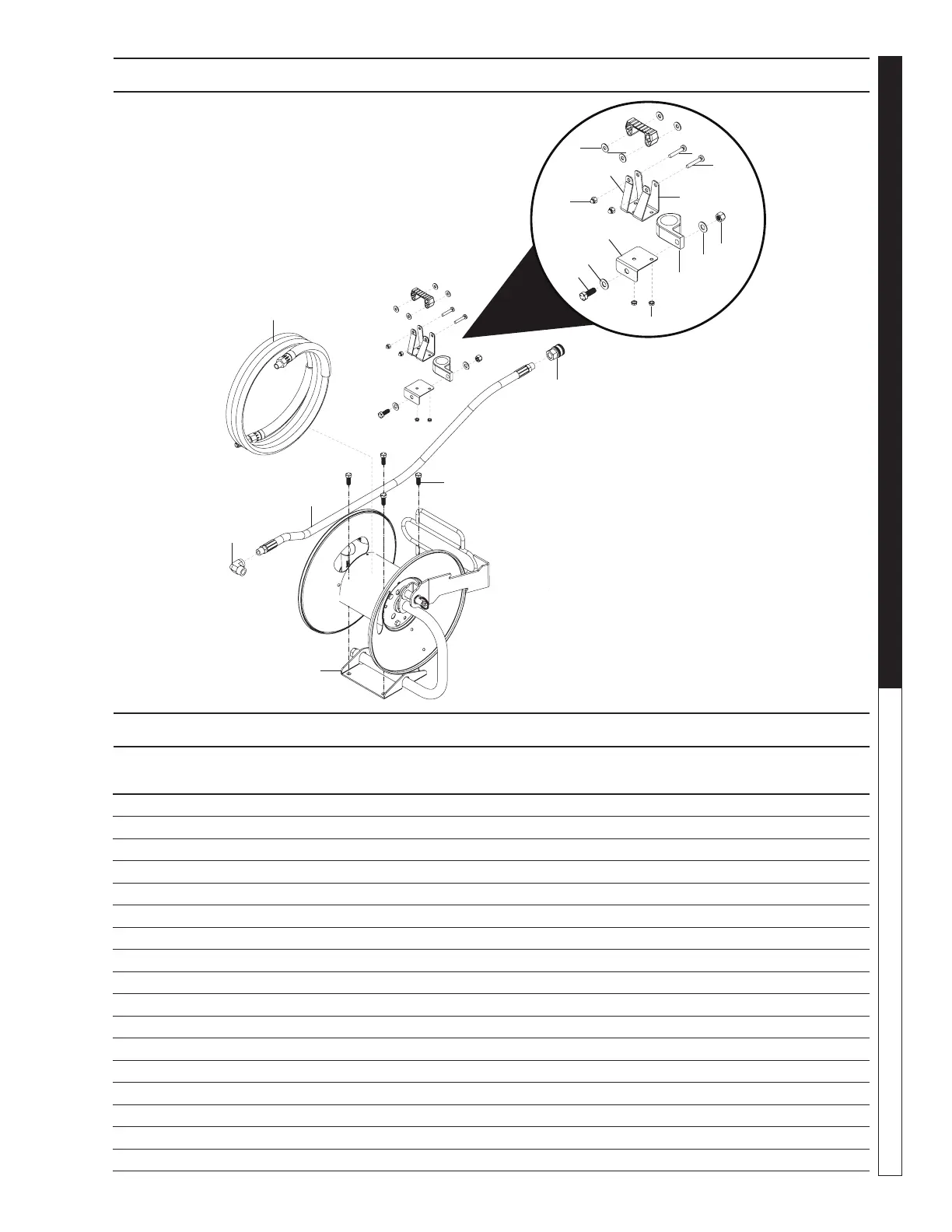

ENROULEUR DE TUYAU (SCW-4.0/40 GL)
ENROULEUR DE TUYAU (SCW-4.0/40 GL)
ARTI
CLE RÉF. DESCRIPTION QTÉ
1 9.802-802.0 Washer, 1/4" Flat Sae Zinc 4
2 9.802-720.0 Bolt, 3/8" X 1", Nc Hh 5
3 9.802-695.0 Nut, 10/32" Keps 2
4 9.802-167.0 Coupler, 3/8" Socket, Female/11,000 Psi 1
5 9.198-004.0 3/8 Uss F/W Zinc 2
6 9.197-003.0 3/8-16 Ne Nylon Insert L/N Zc 5um White 1
7 8.930-761.0 Hose Reel Base100ft Jarvis 2.0 1
8 8.930-006.0 Lance Bracket 1
9 8.929-860.0 Hose 1/4"x40.25" 2Wire 6000PSI 1
10 8.759-577.0 Screw 10-32" X 7/16" Bhsoc Ss 2
11 8.759-540.0 Bar Clamp 1
12 8.757-340.0 Elbow 3/8", Street 90 Deg, Steel, W/Slnt 1
13 7.311-622.0 Cap Nut M 6-A2 Din 986 2
14 7.306-197.0 Screw M6x35 -A2-70 (In6rd) 2
15 5.424-162.0 Fixing Jet Pipe 1
16 5.055-684.0 Holder Jet Pipe Fixing 1
17 8.930-667.0 Hose Assembly 3/8" x 50' 1W 4000PSI Coup 1
12
17
4
1
15
1
13
8
16
5
2
14
16
6
5
11
3
9
2
7
