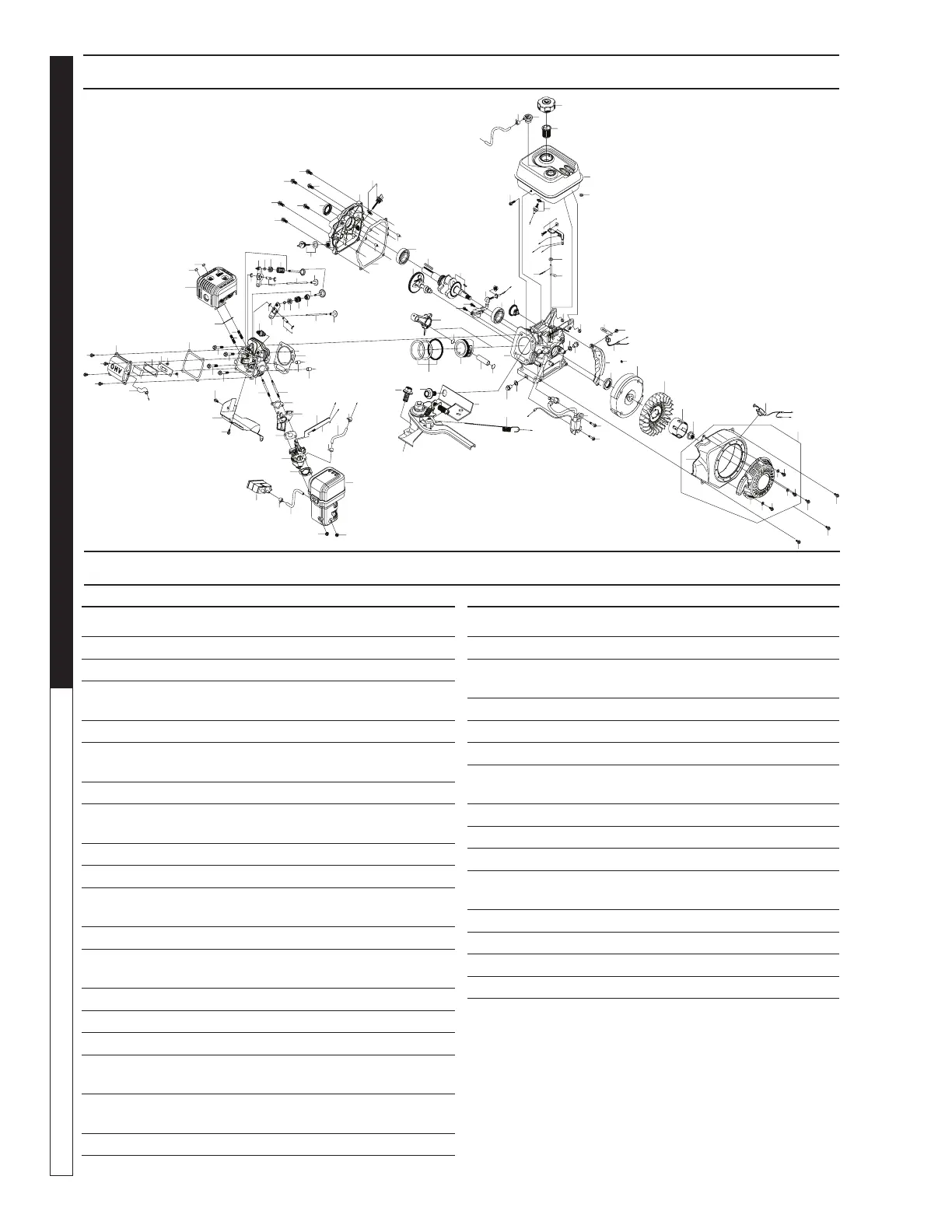

VISTA DETALLADA MOTOR BLACK LONCIN G210FA
LISTA DE PARTES MOTOR BLACK LONCIN G210FA
PZA. PARTE NO. DESCRIPCIÓN CANT
1 8.765-787.0 Spark Plug Loncin 1
28.751-026.0 Cap, Assembly 2
3 9.802-958.0 Key, 0.185 SQR X 1.75' 1
4 8.753-623.0 Recoil Starter
Comp. G200fa 1
5 8.765-789.0 Insulating Flat Gasket G210 1
6 8.753-626.0 Insulator,
Carburetor, G200FA 1
7 8.765-790.0 Carburetor gasket G210 1
8 8.753-627.0 Spacer Comp., Air
Cleaner, G200FA 1
9 8.753-625.0 Carburetor, G200FA 1
10 8.753-638.0 Air Cleaner Assy, G200FA 1
11 8.753-639.0 Element Assy, Air
Cleaner, G200FA 1
12 8.765-778.0 Flanged Hexagon Nut 2
13 8.753-651.0 Carbon Cannister Assy,
G200FA 1
14 8.753-640.0 Mufer Assy, G200FA 1
15 8.765-792.0 Exhaust Mufer Nut 2
16 8.753-641.0 Gasket, Mufer, G200FA 1
17 8.753-642.0 Cap Comp., Fuel Filler,
G200FA 1
18 8.753-643.0 Gas Valve, Fuel Tank,
G200FA 1
19 8.765-793.0 Tank Filter Loncin 1
PZA. PARTE NO. DESCRIPCIÓN CANT
20 8.753-648.0 Tank Comp., Fuel, G200FA 1
21 8.753-618.0 Gasket, Cylinder, G200FA 1
22 8.753-619.0 Packing, Head Cover,
G200FA 1
23 8.753-621.0 Tube, Breather, G200FA 1
24 8.765-794.0 Oil Protection Sensor Loncin 1
25 8.765-795.0 Oil Level Sensor G210 1
26 8.753-622.0 Packing, Case Cover,
G200FA 1
27 8.765-796.0 Rocker Valves G210 2
28 8.765-797.0 Pusher Rod Arm G210 2
29 8.765-798.0 Lifter Valve G210 2
30 8.753-624.0 Switch Assy., Engine Stop,
G200FA 1
31 8.753-630.0 Pulley, Starter, G200FA 1
32 8.765-799.0 Governor Spring G210 1
33 8.765-800.0 Throttle Return Spring G210 1
34 8.765-801.0 Throttle Screw G210 1
2
26
3
25
12
17
19
18
20
24
12
12
31
30
4
2
29
28
27
15
15
14
16
22
23
1
27
28
29
32
21
5
6
34
337
9
8
13
10,11
12
12
