HANDLE ASSEMBLY PARTS LIST (SCW-4.0/40 GL)
13
8

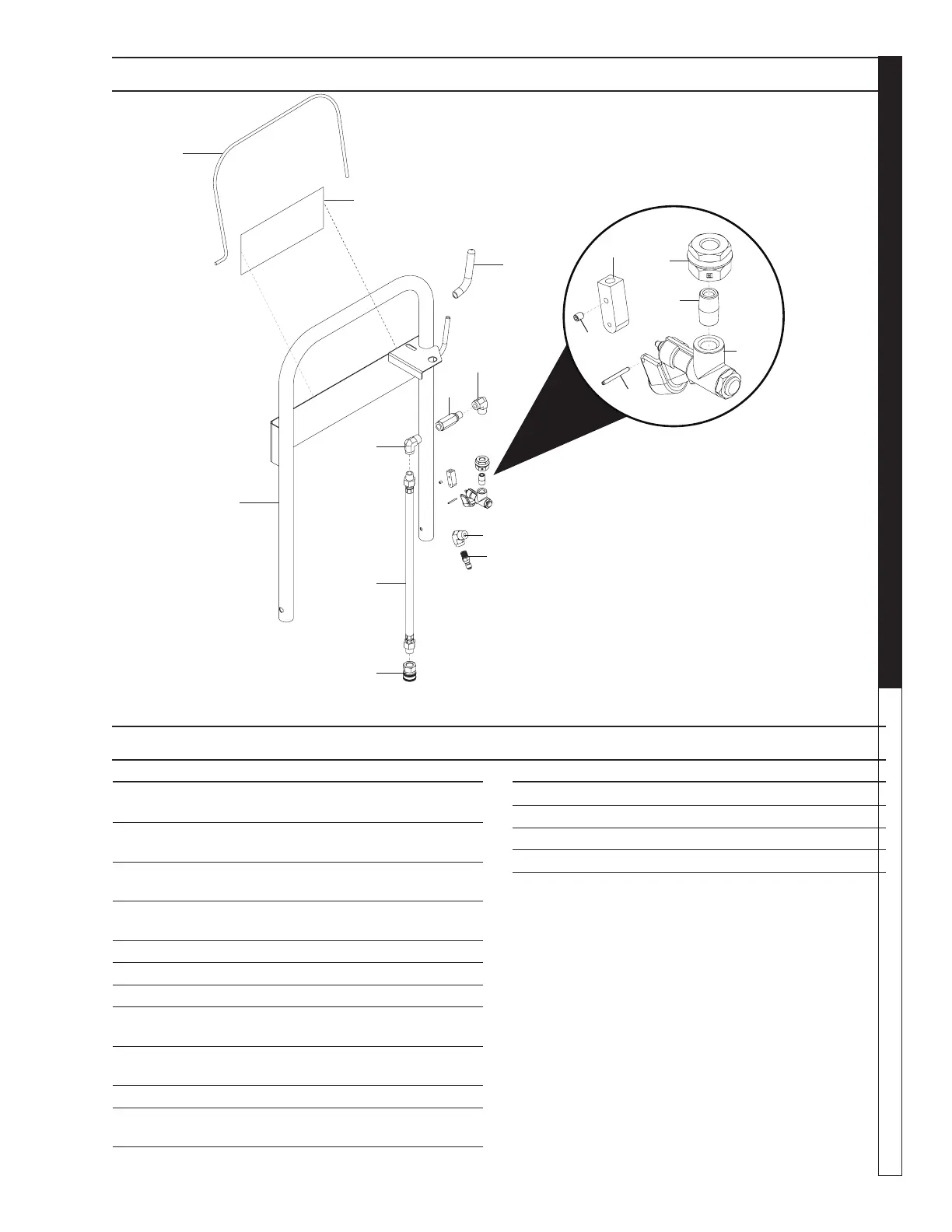

HANDLE ASSEMBLY EXPLODED VIEW (SCW-4.0/40 GL)
ITEM PART NO. DESCRIPTION QTY
1 9.802-166.0 Coupler, 3/8"Socket,
Female, Brass 1
2 8.930-005.0 Trigger Bar Yellow
Jarvis 2.0 Painted 1
3 8.929-858.0 Hose 1/4"X15.250"
2wire 6000psi 1
4 8.929-832.0 Handle Surface Cleaner
2.0 Painted 1
5 8.759-559.0 Spring Pin 3/32" X 1.0" 1
6 8.759-557.0 Bulkhead Connector Steel 1/4" 1
7 8.757-776.0 Hose Hanger Cap 3/8"X 5 1/2" 1
8 8.757-339.0 Elbow, 1/4" Street 90 Deg,
Steel W/Slnt 3
9 8.757-337.0 Nipple, 1/4" Close Sch
80 Steel, W/Slnt 1
10 8.719-966.0 Adapter, Valve, Trigger Bar 1
11 8.718-951.0 Screw, 10-32" X 1/4",
Soc Set, Ss 1
ITEM PART NO. DESCRIPTION QTY
12 8.718-244.0 Valve, Actuator Assembly 1
13 8.709-175.0 Filter, High Pressure 1
14 8.707-140.0 Nipple, 1/4", Male, Ssteel 1
15 8.757-390.0 Label logo Professional Kärcher 1
4
1
3
8
6
10
9
12
11
5
14
7
18
8
2
