KARCHER Surface Cleaner 9.802-898.0
MANUEL DE L'UTILISATEUR
MACHINE À LAVER À HAUTE PRESSION
114
POMPE K2535G
8.929-258.0 K2535G

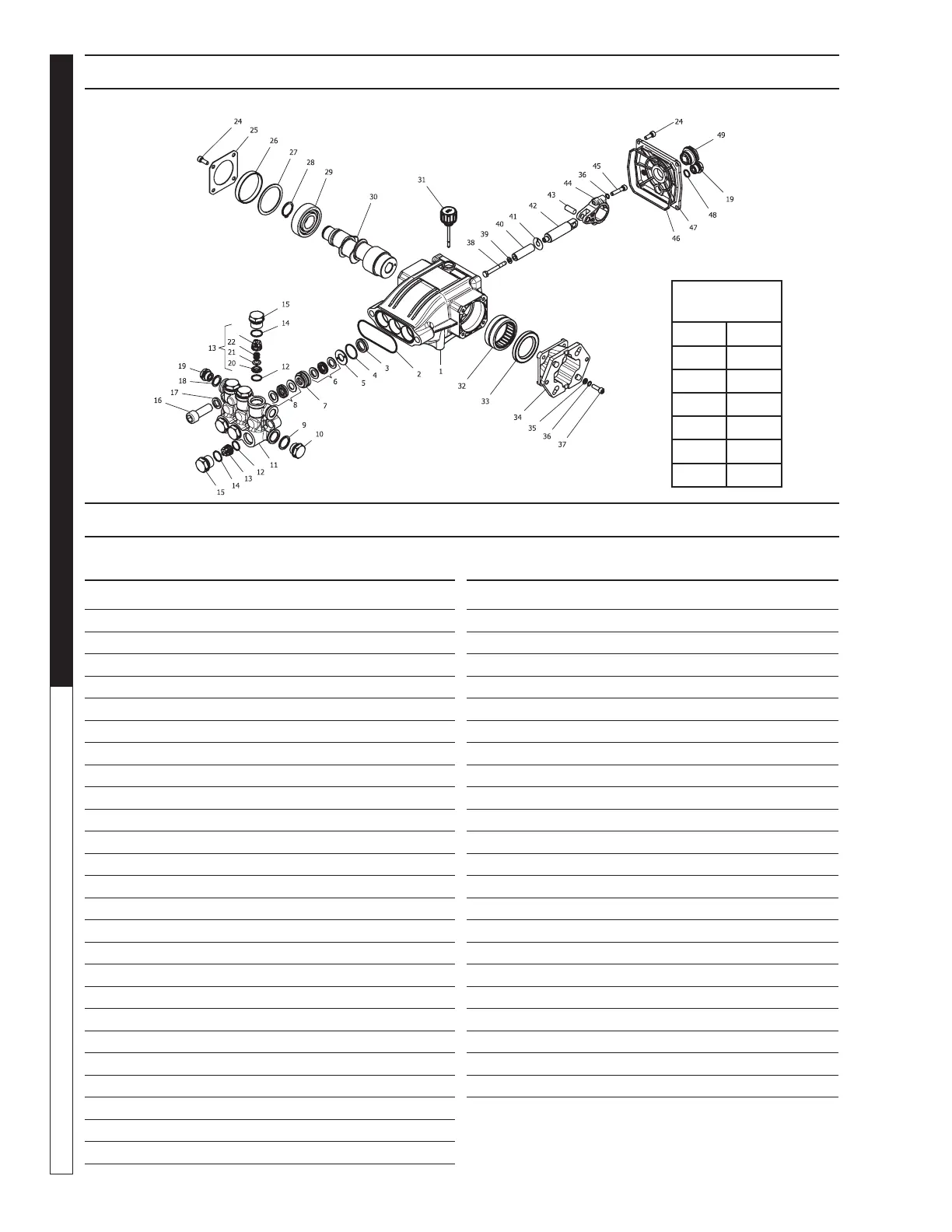

POMPE LP 3035G ET LISTE DES PIÈCES
TORQUE
SPECS
Art. # Ft.-lbs
15 65
16 55
24 8
37 10
38 10
45 10
ARTI
CLE RÉF. DESCRIPTION QTÉ
1 8.751-216.0 Crankcase 1
2 8.754-846.0 O-ring Ø1.78 X 72.75 3
3* See Kits Below Plunger Oil Seal 3
4* See Kits Below O-ring Ø1.78 X 26.7 3
5* See Kits Below Washer, Pressure Ring 3
6* See Kits Below U-Seal, 14mm 3
7* See Kits Below Pressure Ring, 14 mm 3
8 See Kits Below U-Seal, 14mm 1
9 9.803-199.0 Washer, Copper G1/2 1
10 9.802-926.0 Plug, Brass G1/2 1
11 8.754-853.0 Manifold 1
12* 8.717-233.0 O-ring Ø1.78 X 15.6 6
13* See Kits Below Valvel Assembly 6
14* 9.803-948.0 O-ring Ø1.78 X 18.77 6
15 9.803-949.0 Valve Plug 6
16 8.754-854.0 Bolt, Manifold M14 x 40 2
17 8.754-850.0 Washer, Lock 2
18 9.803-198.0 Washer, Copper G3/8 1
19 8.707-262.0 Plug, Brass G3/8 1
20* See Kits Below Valve Seat 6
21* See Kits Below Valve Plate 6
22* See Kits Below Valve Spring 6
23* See Kits Below Valve cage 6
24 9.802-939.0 Screw, M6 X 16 12
25 8.717-137.0 Bearing Cover 2
26 9.803-954.0 Bearing Seal 1
ARTI
CLE RÉF. DESCRIPTION QTÉ
27 8.754-843.0 Seal Spacer, Crankshaft 1
28 9.802-914.0 Snap Ring, 25 mm 1
29 9.803-955.0 Bearing, Ball 1
30 8.754-834.0 Shaft, 3/4" Hollow (3035G) 1
31 8.754-219.0 Oil Dipstick 1
32 8.754-840.0 Bearing Needle 1
33 8.754-826.0 Seal, Crankshaft 1
34 8.754-863.0 Flange, Engine 1
35 9.803-210.0 Washer 4
36 9.803-218.0 Washer 6mm 10
37 8.752-824.0 Screw, M6 x 20 4
38* 8.754-855.0 Bolt, Plunger 3
39* 8.754-092.0 Spacer, Copper 3
40* 8.754-849.0 Plunger, 14 mm 3
41* 9.803-962.0 Spacer, Copper 3
42 8.754-827.0 Plunger Rod 3
43 9.803-965.0 Connecting Rod Pin 3
44 9.803-965.0 Connecting Rod 3
45 8.933-020.0 Screw, Connecting Rod 6
46 8.754-847.0 O-ring Ø2.62 X 111.62 1
47 8.754-842.0 Cover, Crankcase 1
48 9.803-906.0 O-ring Ø1.78 X 14 1
49 9.803-202.0 Sight Glass, G3/4 1
