KARCHER Surface Cleaner 9.802-898.0
OPERATOR’S MANUAL
PRESSURE WASHER
26

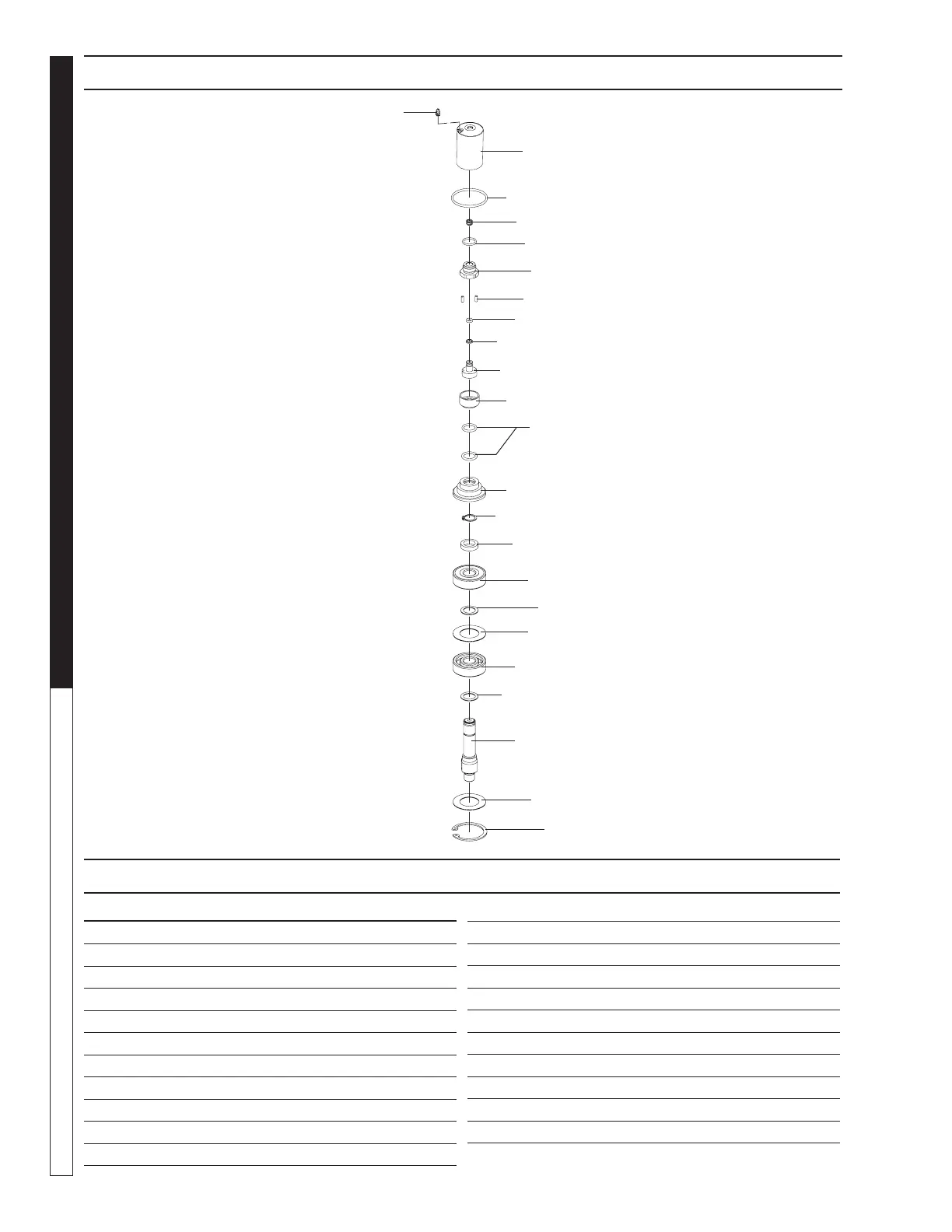

SWIVEL ASSEMBLY EXPLODED
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
17
20
18
21
1
SWIVEL ASSEMBLY PARTS LIST
* Kit, Swivel Seals, A+SC21
8.921-833.0
ITEM DESCRIPTION QTY
1 Grease Nipple 1
2 Swivel Housing 1
3 O-Ring* 1
4 Compression Spring 1
5 O-Ring 1
6 Bolt 1
7 Pin 1
8 O-Ring* 1
9 Back up Ring* 1
10 Stem 1
11 Bearing Retainer, Small 1
ITEM DESCRIPTION QTY
12 O-Ring* 1
13 Bearing Retainer 1
14 Snap Ring 1
15 Bearing Back-up Ring 1
16 Upper Bearing 1
17 Bearing Spacer 1
18 Washer 1
19 Lower Bearing 1
20 Rotor Shaft 1
21 Snap Ring 1
To Next Page
