Kärcher 1.107-380.0 User Manual

KARCHER Surface Cleaner 9.802-898.0
63
LIMPIADOR DE ALTA PRESIÓN
MANUAL DEL OPERADOR

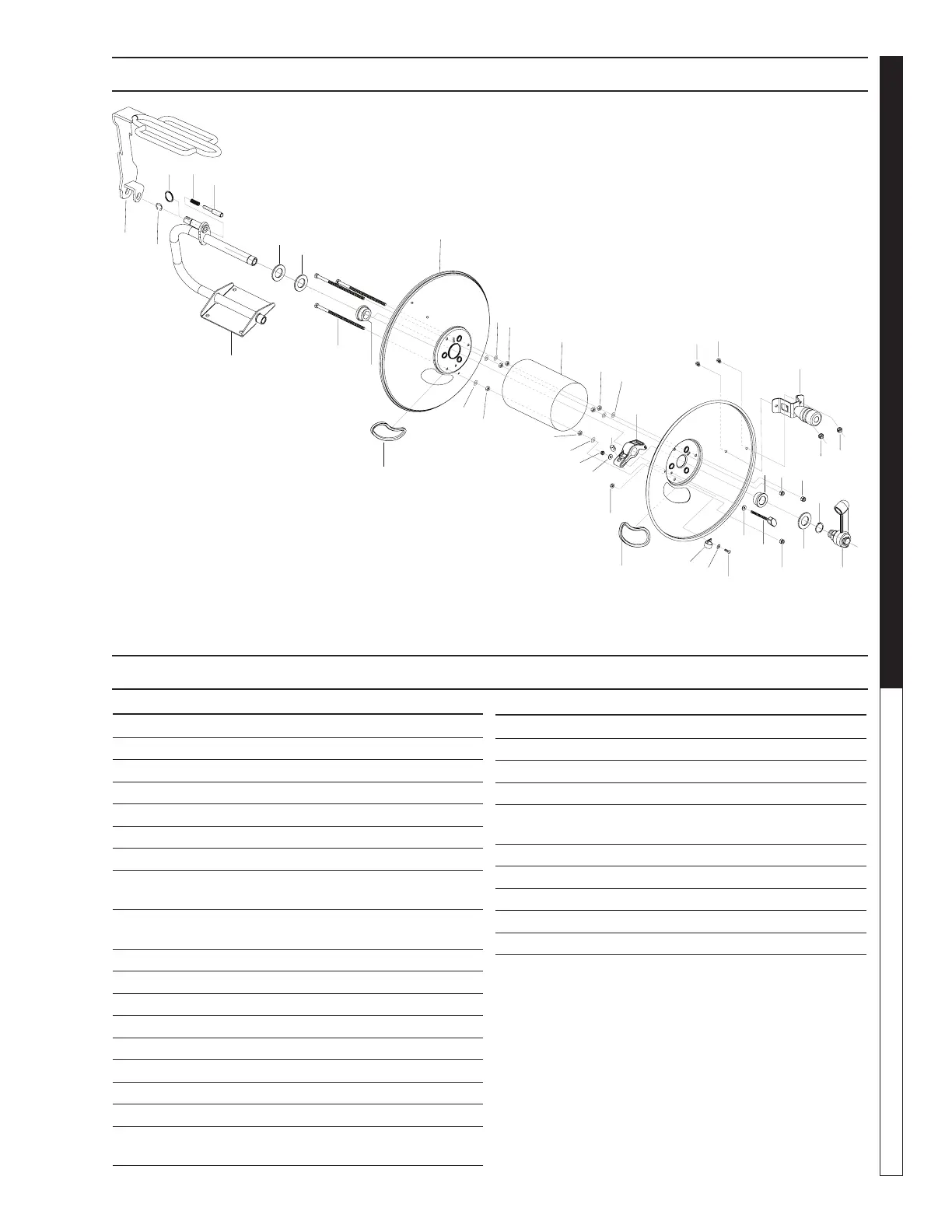

ENSAMBLE CARRETE DE MANGUERA
CARRETE DE MANGUERA LISTA DE PARTE
PZA. PARTE NO. DESCRIPCIÓN KIT CANT
1 9.116-009.0 Fixed base 100 ft 1
2 Spring A 1
3 Ring A 1
4 Pin A 1
9.139-374.0 Kit A - Lock Pin Spare Part Kit HR
5 9.198-017.0 Flat Washer 1.0 ID X 2.00 OD 3
6 9.182-005.0 Retaining Ring 1.0 Shaft 1
7 8.776-010.0 Extended Swivel Assembly
(see next page) 1
8 9.196-059.0 Button Head Screw, SS
1/4"-20x1/2" 3
9 9.121-043.0 Handle Assembly 1
10 9.197-010.0 Nylock Flange Nut 1/4"-20 4
11 9.182-007.0 "E" Clip retaining ring 1
12 9.134-141.0 Drum Bushing 1.0 ID 2
13 9.134-139.0 Plastic Tension Adjuster 1
14 9.152-021.0 Threaded Barrel 1
15 9.802-802.0 Washer Flat 1/4" 3
16 9.134-140.0 Tension Adjuster Knob 1
17 9.196-056.0 Screw 5/16" x 6.0",
Hex Head, Zinc Plated (100 Ft) 3
PZA. PARTE NO. DESCRIPCIÓN CANT
18 9.802-776.0 Nylock nut 5/16" 6
19 8.706-577.0 Trim, Edge Guard, Black 2
20 8.718-980.0 Washer 5/16" Flat 3
21 9.802-813.0 Washer 5/16" Split Ring
Lock, Zinc 3
22 9.802-786.0 Nut 5/16", Hex, NC 3
23 9.116-010.0 Hose Guide 100 ft 1
24 9.116-013.0 Plate 100 ft 2
25 9.116-011.0 Drum 100 ft 1
26 8.750-776.0 Clip, 1.000 ID RND 1
1
2
3
4
13
15
18
16
10
20
15
17
18
12
12
19
18
18
8
15
26
10
19
14
5
5
9
8
5
6
7
8
24
25
21
22
21
22
18
20
23
10
10
11
