PRESSURE WASHER
OPERATOR’S MANUAL

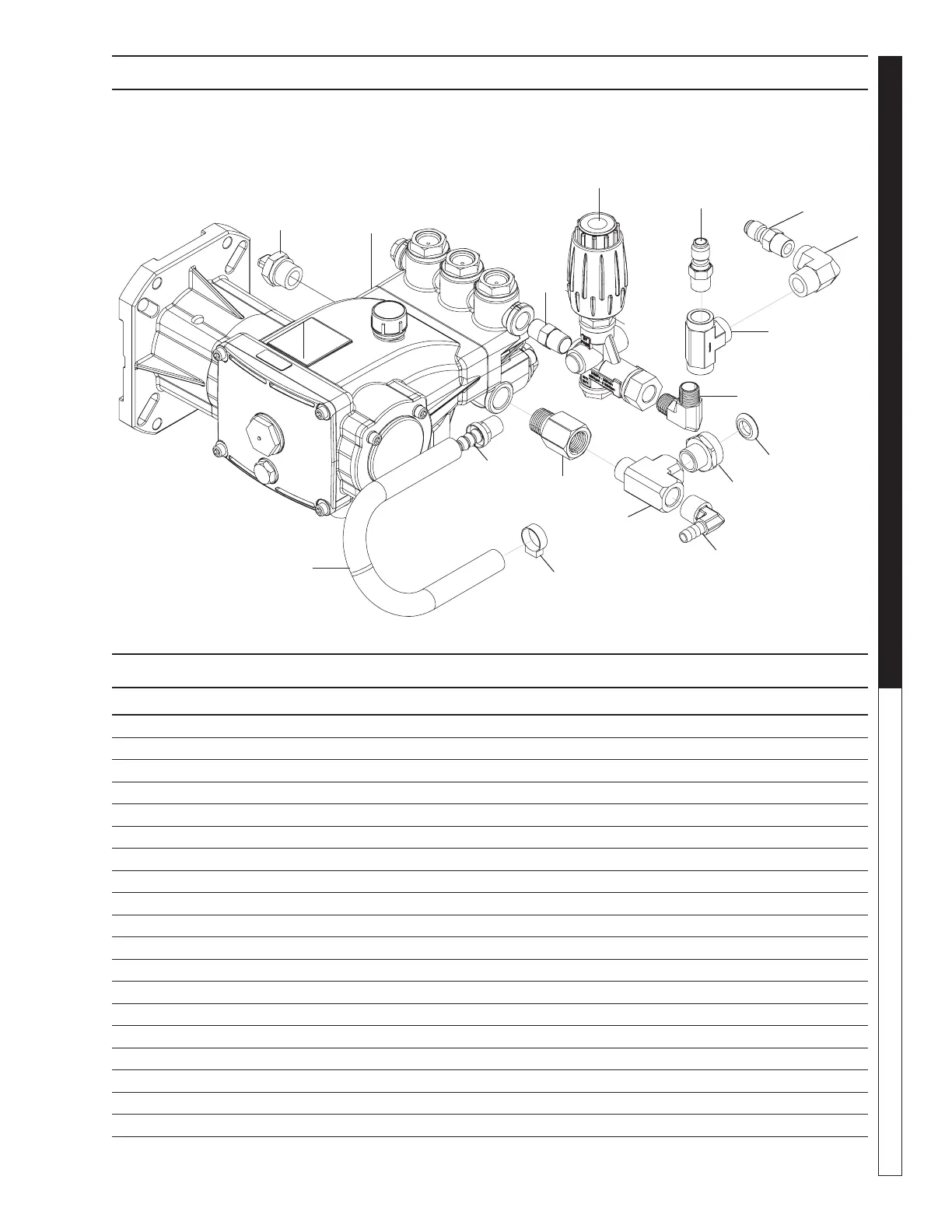

PUMP ASSEMBLY (SCW-4.0/40 GL)
PUMP ASSEMBLY PARTS LIST (SCW-4.0/40 GL)
16
9
10
6
15
8
2
11
18
4
12
5
14
17
7
13
16
8
5
6
ITEM PART NO. DESCRIPTION QTY
1 8.918-818.0 Label, Karcher Ks4040g.3 Pump 1
2 9.804-016.0 Filter Screen Washer, Garden Hose/30mesh 1
3 ▲ 9.378-010.0 Loctite 545 0.500
4 8.758-204.0 Hose Barb 3/8"X3/8" Ml Pipe W/Slnt 1
5 8.758-199.0 Hose Barb Elbow 3/8"X1/2" 90 Deg W/Slnt 1
6 8.757-944.0 Tee Steel 3/8 Nptf (F) 1
7 8.757-549.0 Pump Protector 1/2 140 1
8 8.757-511.0 Elbow, 3/8", Steel 1
9 8.757-340.0 Elbow 3/8", Street 90 Deg, Steel, W/Slnt 1
10 8.757-257.0 Tee, Street 1/2" 1
11 8.757-203.0 Swivel, 1/2" M-Nptf X 3/4" Ghf 1
12 8.757-193.0 Adapter, 1/2" F-Nptf X 1/2" M-Nptf, Brass 1
13 8.751-195.0 Pump, Karcher Ks4040g3, 4@4000 3400 Rpm 1
14 8.750-300.0 Unloader, Vrt3, 8gpm@4500psi W/Ez Start 1
15 8.711-785.0 Hose, 3/8" Push On, Per Ft 16"
16 8.707-152.0 Nipple, 3/8", Male, Ssteel 2
17 8.705-974.0 Nipple, 3/8" Hex Steel-P/N-C3069x6 1
18 8.623-315.0 Clamp, 3/8 Hose (D-Slot) 1
19 6.869-002.0 ▲ Metal Bonding Agent 0.002
▲ Not Shown
