KARCHER Surface Cleaner 9.802-898.0
OPERATOR’S MANUAL
PRESSURE WASHER
16
HANDLE ASSEMBLY PARTS LIST
2
18
11
10
5
3
7
9
13
5
12
8
15
27
25,26
20
21
22
16
17
1
14
19
16
21
20
14

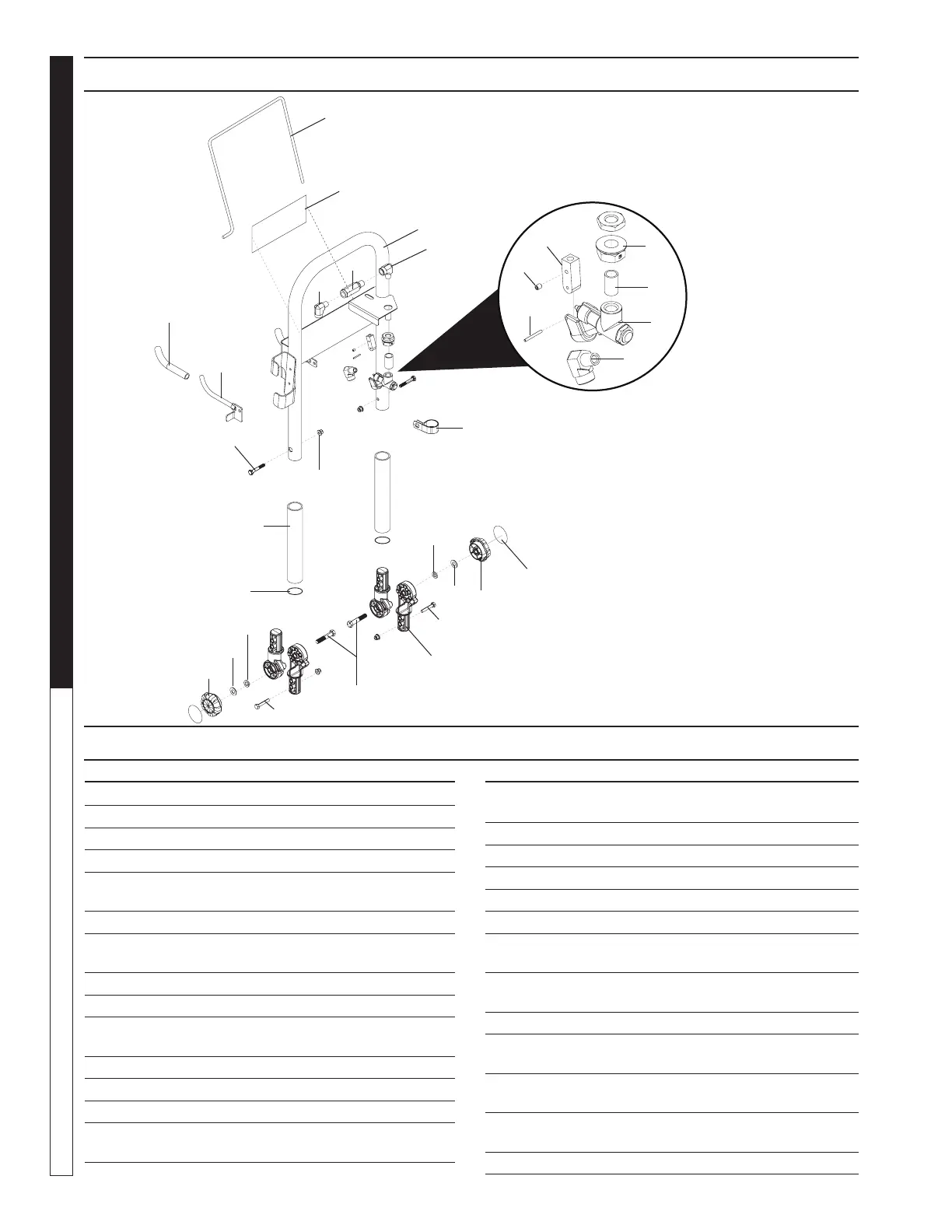

HANDLE ASSEMBLY EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
1 9.135-007.0 Rotary Tube-Joint 4
2 8.931-483.0 Bar, Trigger, Yellow 1
3 8.759-557.0 Bulkhead connector steel 1/4" 1
4 9.802-510.0 Cable, Tie, 4" Black 2
5 8.706-200.0 Elbow, 1/4"""", Street- 3
P/N-TF3409X4
6 9.802-031.0 Elbow, Street, 1/4", 45 Degree 1
7 8.705-969.0 Nipple, 1/4" Close 1
SCH 80 Steel
8 8.718-244.0 Valve, Actuator Assembly 1
9 8.719-966.0 Adapter, Valve, Trigger Bar 1
10 8.709-175.0 Filter,High Pressure 1
1/4'NPT-Fx1/4'NP
11 8.925-422.0 Handle, Surface Cleaner 1
12 8.718-951.0 Screw, 10/32" x 1/4" SS 1
13 8.759-559.0 Spring Pin 3/32" x 1.0" 1
14 9.196-307.0 1/4-20 x 1-1/2 GR 2 2
Hex Bolt Zinc
ITEM PART NO. DESCRIPTION QTY
15 9.197-010.0 1/4-20" Nylon Insert 4
Lock Nut With Flange
16 9.136-502.0 Knob 2
17 9.802-728.0 Bolt, 3/8-16 x 2", HH Zinc 2
18 8.757-390.0 Label logo Professional Kärcher 1
19 8.757-421.0 Label, Circle Yellow, Knob 2
20 9.198-004.0 3/8 USS F/W Zinc 2
21 9.802-814.0 Washer, 3/8" 2
Split Ring Lock,Zinc
22 8.751-805.0 1/4-20 x 1-3/4 GR 5 2
Hex Bolt Zinc
23 8.757-802.0 Grip 1.25"x 7" Vynil 2
24 8.623-341.0 Clamp, 3/4 DIA 1
Cushion .406 DIA
25 8.929-116.0 Hose hook left paint
Surface Cleaner 1
26 8.929-721.0 Hose hook right paint
Surface Cleaner 1
27 8.757-776.0 Hose Hanger Cap 3/8"x 5 1/2" 2
23
4
24
5
To Next Page
