KARCHER Surface Cleaner 9.802-898.0
7
PRESSURE WASHER
OPERATOR’S MANUAL

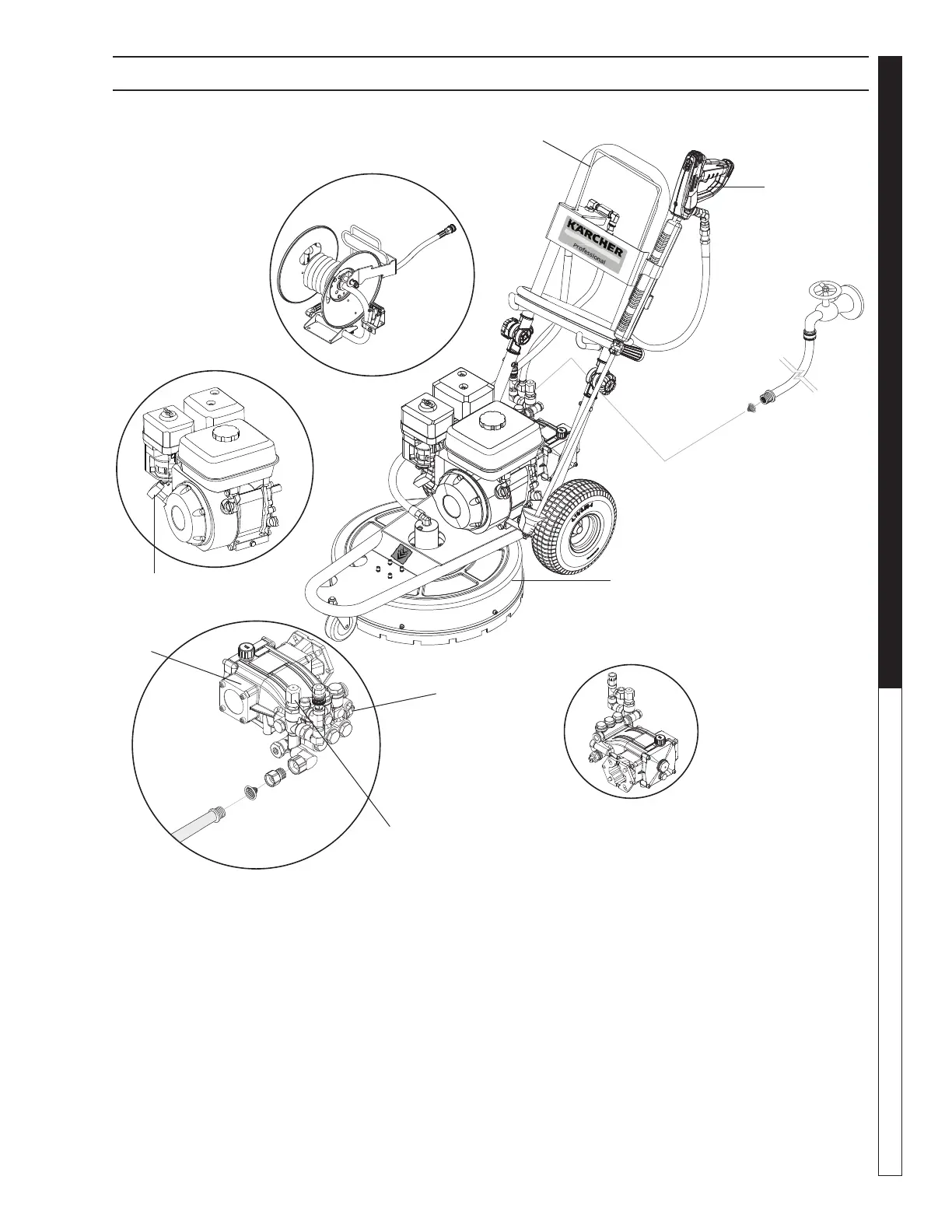

COMPONENT IDENTIFICATION
Pump — Develops high pressure.
Starter Grip — Used for starting the engine manually.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Unloader Valve — Safety device which allows pres-
sure tu be released when spray gun is closed
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray gun.
On SCW-4.0/40 GL connect one end to hose reel
swivel and the other one to spray gun
Pump Protector — Cycles fresh cool water through
pump when recirculating water reaches 140°F.
Trigger Bar — Controls the application of water in
surface cleaner.
Rotative Surface Cleaner — Used to application of
water onto cleaning surface with trigger bar device.
Hose Kink Protector — Must be connected between
feed hose and pump, protects to kink in feed hose,
reinforced with coil spring, maintains even water ow.
Note: If trigger on spray gun is released for more
than 1-2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto
oor. This system prevents internal pump damage.
Starter Grip
Unloader
ENGINE
HOSE REEL
PUMP
Surface
Cleaner
Pump
Pump
protector
Spray
Gun
Trigger Bar
