73
LIMPIADOR DE ALTA PRESIÓN
MANUAL DEL OPERADOR
KARCHER Surface Cleaner 9.802-898.0

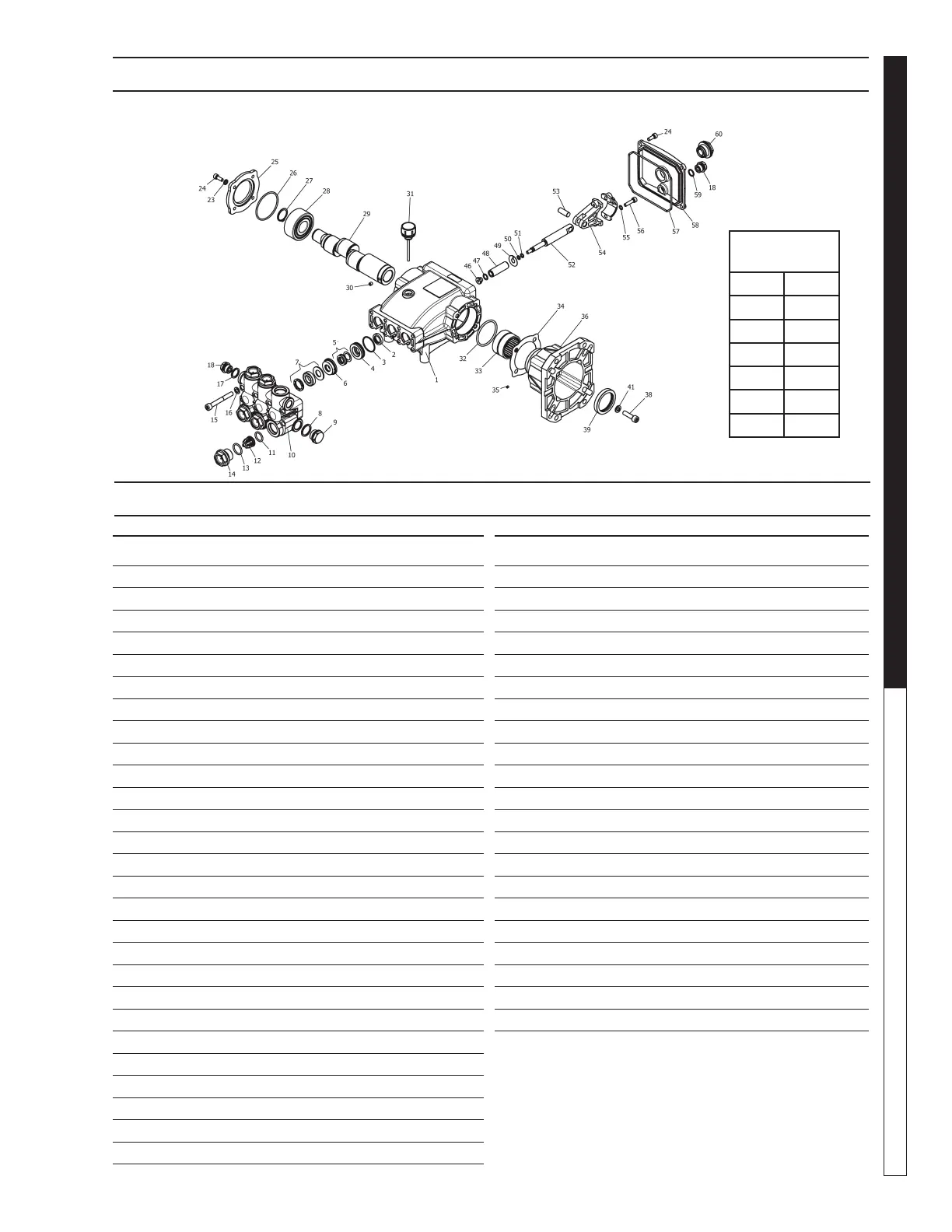

VISTA DETALLADA DE LA BOMBA LS 4040G
8.750-753.0 LS4040G
LISTA DE PARTES DE LA BOMBA LS 4040G
PZA. PARTE NO. DESCRIPCIÓN CANT
1 8.751-217.0 Crankcase 1
2 See Kit Below Plunger Oil Seal 3
3 See Kit Below O-Ring 1.78 x 31.47 3
4 See Kit Below Pressure Ring 3
5 See Kit Below U-Seal, 15mm 3
6 See Kit Below Intermed, Ring 15mm 3
7 See Kit Below U-seal, 15mm 3
8 9.803-199.0 Copper Washer 1/2'' 1
9 9.802-926.0 Brass Plug, 1/2'' 1
10 8.751-218.0 Manifold Housing 1
11 9.803-191.0 O-Ring 2.62 x 17.13 1
12 See Kit Below Valve Assembly 6
13 9.803-193.0 O-Ring 2.62 x 20.29 6
14 9.802-928.0 Valve Plug 6
15 9.802-938.0 Manifold Stud Bolt 8
16 9.802-884.0 Washer 8
17 9.803-198.0 Copper Washer 3/8'' 1
18 9.802-925.0 Brass Plug 3/8'' 2
23 9.803-210.0 Washer, M6 x 16 4
24 9.802-939.0 Hexagonal Screw 9
25 9.803-184.0 Closed Bearing Housing 1
26 8.717-225.0 O-Ring 2.62 x 61.6 1
27 9.802-914.0 Snap Ring 1
28 9.803-168.0 Double Row Ball Bearing 1
29 9.803-152.0 Crankshaft 1
30 9.802-945.0 Set Screw 1
31 9.802-921.0 Oil Dip Stick 1
32 9.804-581.0 O-Ring 3.53 x 55.56 1
PZA. PARTE NO. DESCRIPCIÓN CANT
33 9.803-161.0 Needle Roller Bearing 1
34 8.751-230.0 Gasket 1
35 8.717-544.0 Screw, Set 1
36 9.803-183.0 Engine Flange 1
38 9.803-240.0 Flange Screw 4
39 9.803-142.0 Crankshaft Seal 1
41 9.803-221.0 Sprong Washer 4
46 See Below Plunger Nut, M6 3
47 See Below Washer, coper, 9.2 x 13.5 3
48 See Below Plunger, 15mm 3
49 See Below Copper Spacer 3
50 See Below O-Ring 0.78 X 5.28 3
51 See Below Teon Ring 3
52 8.751-225.0 Plunger Rod 3
53 8.751-228.0 Connecting Rod Pin 3
54 9.803-158.0 Connecting Rod 3
55 5.803-218.0 Spring Washer 6
56 9.803-238.0 Connecting Rod Screw 6
57 8.933-016.0 O-Ring 2.62 x 126.67 1
58 8.751-229.0 Crankcase Cover 1
59 9.803-197.0 O-Ring, 1.78 X 14 1
60 9.803-202.0 Sight Glass, G 3/4 1
ESPECIF. DE
TORQUE
Elem # Ft.-lbs
14 75
15 30
24 7.6
38 10
46 7
56 13
* Disponible en Kit
