OPERATOR’S MANUAL
PRESSURE WASHER
28

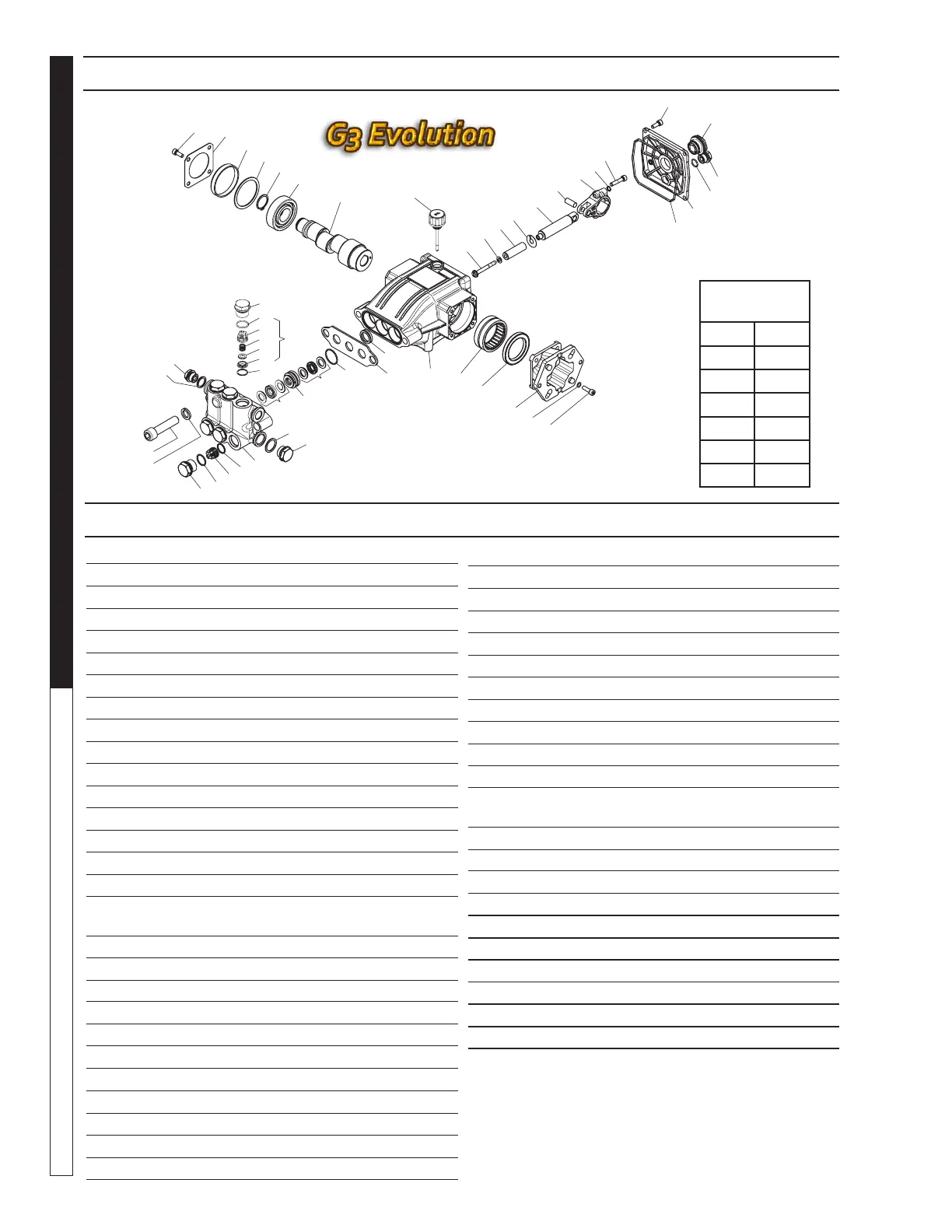

KPP2535 PUMP EXPLODED VIEW
8.929-258.0 KPP2535G
LPP2535G PUMP PARTS LIST
23
24
25
26
27
28
29
30
36*
35
34
33
32
31
1
2*
3
4*
5*
6*
7*
8
9
10
11*
12*
13*
16
14
15
17
18
14
13*
22*
21*
20*
19*
11*
12*
37*
38*
39*
40
41
42
35
43
23
47
18
46
45
44
TORQUE
SPECS
Item # Ft.-lbs
14 66
16 66
23 8
35 8
36 9.5
45 12.5
ITEM PART NO. DESCRIPTION QTY
1 8.754-841.0 Crankcase 1
2* See Kits Below Plunger Oil Seal 3
3 8.758-216.0 Spacer 1
4* See Kits Below "O" Ring Ø1.78X26.7 3
5* See Kits Below "U" Seal, DIA. 14 MM 3
6* See Kits Below Pressure Ring Dia. 14 mm 3
7* See Kits Below "U" Seal, Dia. 14 mm 3
8 9.803-199.0 Copper Washer g1/2 1
9 9.802-926.0 Brass Plug g1/2 1
10 8.759-027.0 Manifold Housing 1
11* 8.717-233.0 "O" Ring ø1.78x15.6 6
12* See Kits Below Valve Assembly 6
13* 9.803-948.0 "O" Ring ø1,78x18.77 6
14 9.803-949.0 Valve Plug 6
15 8.754-850.0 Lock-Washer 2
16 8.758-217.0 Manifold Stud 2
Bolt M14X60
17 9.803-198.0 Copper Washer g3/8 1
18 8.707-262.0 Brass Plug g 3/8 2
19* See Kits Below Valve Seat 6
20* See Kits Below Valve Seat 6
21* See Kits Below Valve Plate 6
22* See Kits Below Valve Spring 6
23 9.802-939.0 Screw M6X16 8
24 8.717-137.0 Bearing Cover 2
25 9.803-954.0 Bearing Seal 1
26 8.754-843.0 Crankshaft Seal Spacer 1
27 9.802-914.0 Snap Ring Dia. 25 mm 1
ITEM PART NO. DESCRIPTION QTY
28 9.803-955.0 Ball Bearing 1
29 8.754-831.0 Hollow Shaft 2535G 1
8.754-834.0 Hollow Shaft 3035G 1
30 8.754-219.0 Oil Dip Stick 1
31 8.754-840.0 Needel Roller Bearing 1
32 8.754-826.0 Crankshaft Seal 1
33 8.754-863.0 Motor Flange 1
34 9.803-218.0 Spring Washer Dia. 6 mm 10
35 8.752-824.0 Screw m6x20 4
36* 8.754-855.0 Plunger bolt 3
37* 8.754-092.0 Bonded Seal - 3
ø6,7x11x1 AISI 304
38* 8.754-849.0 Plunger Dia. 14 mm 3
39* 9.803-962.0 Copper Spacer 3
40 8.759-032.0 Plunger Rod 3
41 9.803-965.0 Connecting Rod Pin 3
42 9.803-966.0 Connecting Rod 3
43 8.933-020.0 Connecting Rod Screw 6
44 8.754-847.0 "O" Ring ø2.62X111.62 1
45 8.754-842.0 Crankcase Cover 1
46 9.803-906.0 "O" Ring ø1.78X14 1
47 9.803-202.0 Sight Glass G3/4 1
* Available in kit (See below)
