KARCHER Surface Cleaner 9.802-898.0
OPERATOR’S MANUAL
PRESSURE WASHER
18

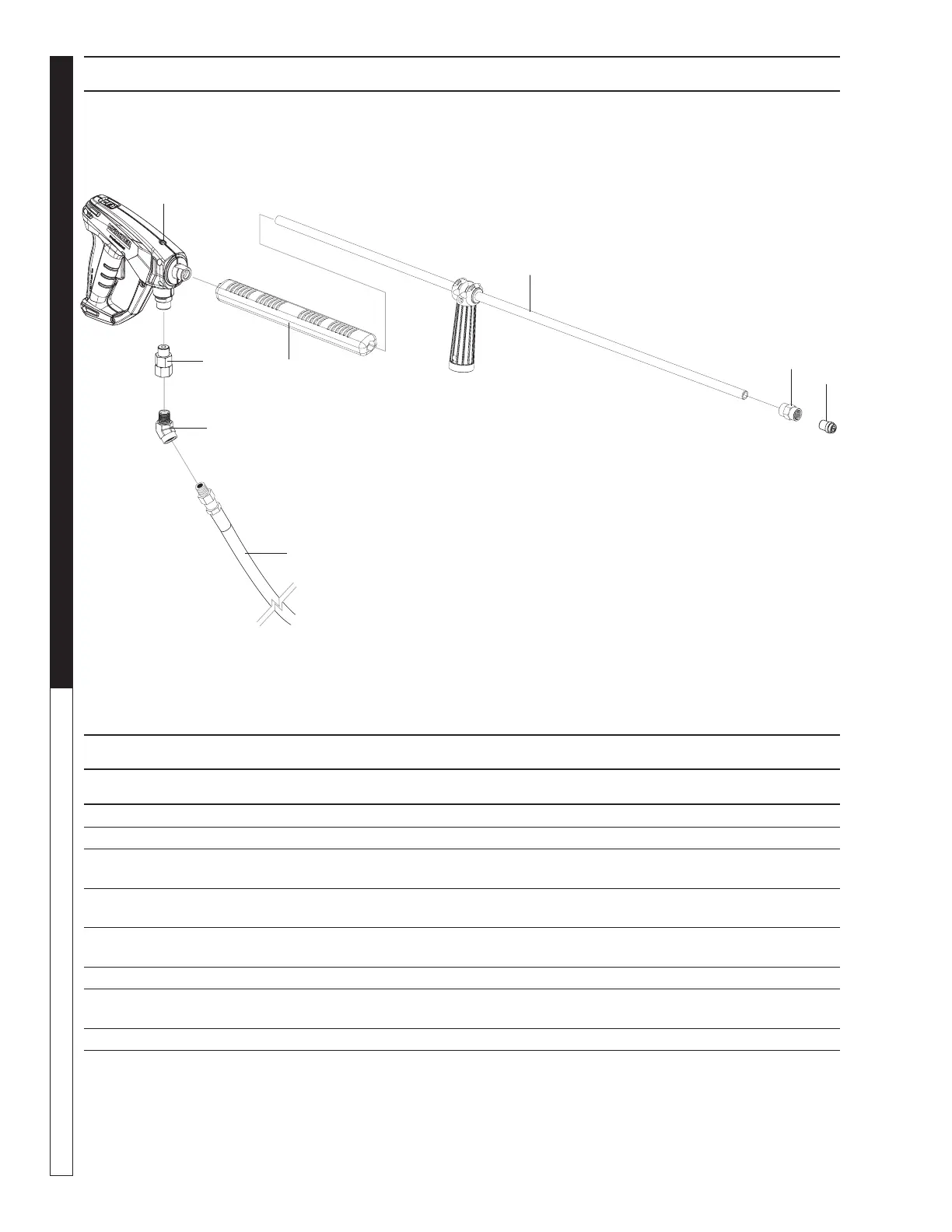

HOSE AND SPRAY GUN ASSEMBLY
HOSE AND SPRAY GUN ASSEMBLY PARTS LIST
7
3
2
4
8
1
5
6
ITEM PART NO. DESCRIPTION QTY
1 4.775-054.0 EASY Force Advanced KNA 1
2 8.705-364.0 Hex Coupling, 1/4" x 1/4" FPT/ 6000PSI 1
3 8.711-370.0 Nozzle Only, SA 1/4, MEG-1503 1
8.708-582.0 NOZZLE SS 1/4' #4.0X25 M-STYLE (Only SCW-4.0/40 GL) 1
4 9.802-214.0 Wand,ADJ Side Grip,35.5',HTSY DD(93670 1
8.759-393.0 Lance 44" (Only SCW-4.0/40 GL) 1
5 8.712-446.0 Swivel 3/8' MPTxFPT Stainless 1
8.758-198.0 Coupler 3/8" Socket, Male, Brass w/slnt (Only SCW-4.0/40 GL) 1
6 9.802-041.0 Elbow, 3/8" Street, 45° DGR, Steel (Only SCW 2.4/25 G) 1
7 8.925-467.0 Hose, 1/4" x 60", R2, Pressure LO 1
8.930-667.0 HOSE, 3/8" X 50' 1W 4000PSI SW X SO_Coupler Fem (Only SCW-4.0/40 GL) 1
8 8.710-717.0 Lance Grip Vented (SCW 2.4/25 G, SCW 2.4/25 GL) 1
