KARCHER Surface Cleaner 9.802-898.0
9
PRESSURE WASHER
OPERATOR’S MANUAL

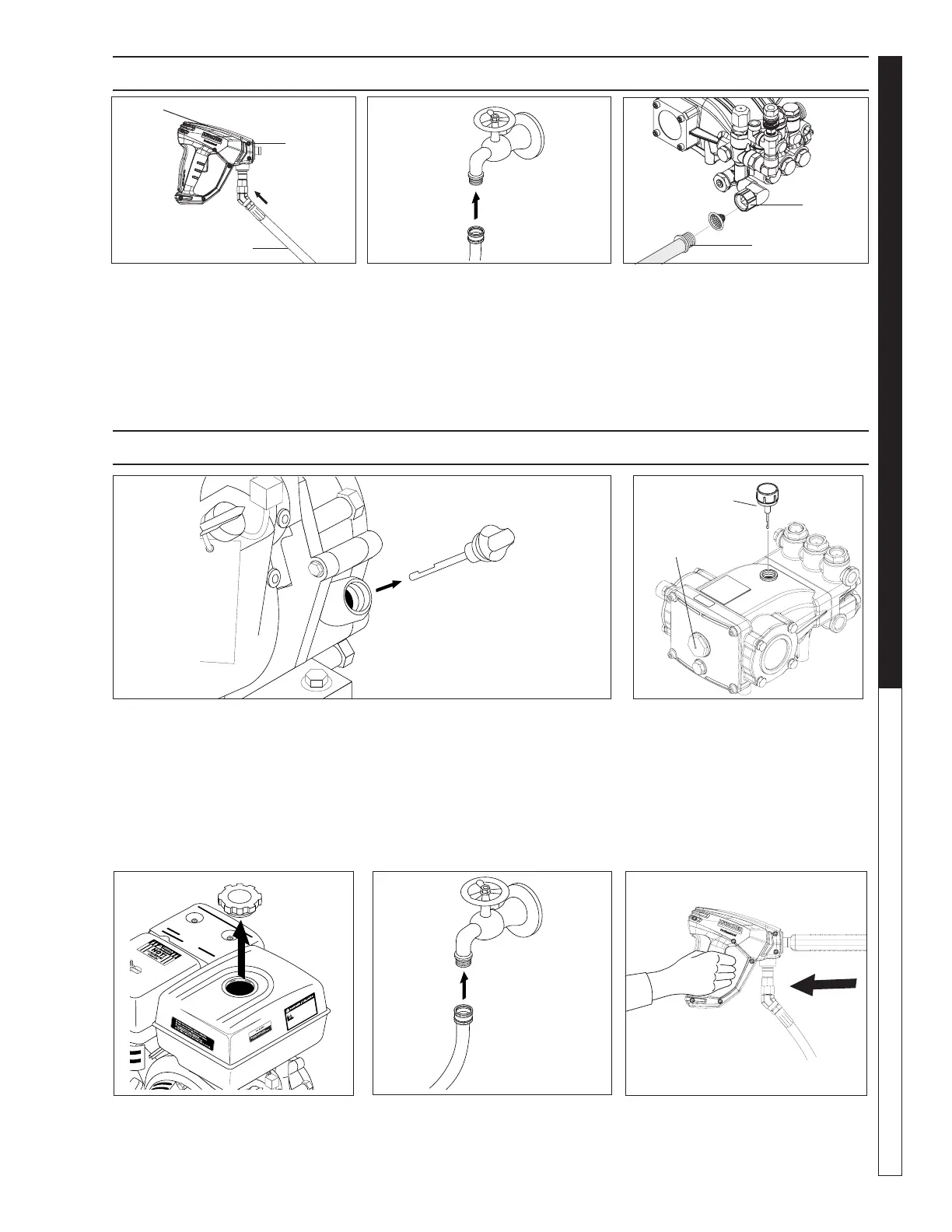

STEP 1: Attach the high pressure
hose to the spray gun using teon
tape on hose threads.
STEP 2: Connect garden hose to
the cold water source.
ASSEMBLY INSTRUCTIONS
STEP 3: Check inlets lters, remove
debris, then connect the garden hose
to pump water inlet. CAUTION: Do
not run the pump without water or
pump damage will result.
Safety
Latch
Spray
Gun
High
Pressure Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
STEP 1: Check engine oil level. Oil level should be level with the bottom
of the oil ller neck. Be sure the machine is level when checking the oil
level. (Refer to the engine's operating manual included with machine).
We recommend that the oil be changed after the rst month or 20 hours
of use, then once every 100 hours or every 6 months after rst month.
Note: Improper oil levels will cause low oil sensor to shut off engine. IM-
PORTANT! Do not run engine with high or low oil levels as this will
cause engine damage.
STEP 2: Remove shipping cap
and install oil dipstick. Check
pump oil level by using dipstick or
observe oil level in oil window (if
equipped). Use SAE 10W-40 non
detergent oil.
OPERATING INSTRUCTIONS
Oil Dipstick
Dipstick
Oil Window
STEP 4: Connect garden hose
to the cold water source and turn
water on completely. Never use
hot water.
STEP 5: Trigger the spray gun to
eliminate trapped air then wait for
a steady ow of water to emerge
from the spray nozzle.
STEP 3: Fill gas tank with unleaded
gasoline. Do not use leaded gaso-
line.
Gas
Tank
Cold
Water
Source
Garden
Hose
To Next Page
