Maintenance Light bulbs
Pull the bulb out of the socket.
9. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
10.Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
11.Install the rear combination lamp
assembly to the body of the vehicle.
12.Install the service cover.
Replacing rear turn signal lamp,
stop and tail lamp (LED type)

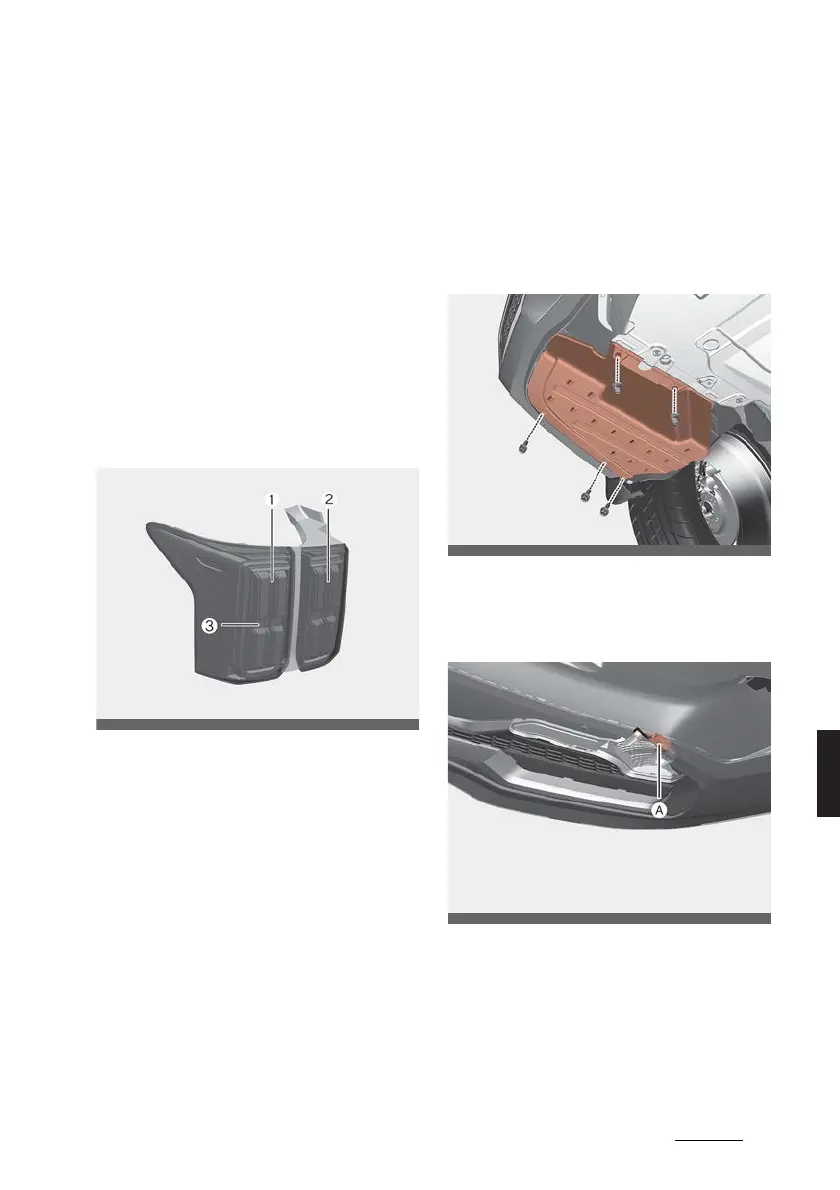

If the rear turn signal lamp (2), stop and
tail lamp (1), and tail lamp (3) do not
operate, have your vehicle checked by a
professional workshop. Kia recommends
to visit an authorised Kia dealer/service
partner.
The LED lamp cannot be replaced as a
single unit because it is an integrated
unit. The LED lamp has to be replaced
with the unit.
A skilled technician should check or
repair the stop and tail lamp (LED), for it
may damage related parts of the vehicle.
Replacing reversing lamp (bulb
type)
1. Turn off vehicle and disconnect the (-)
battery terminal from the battery.
2. Remove the plastic tabs with a flat-tip
screw driver.
3. Loosen the plastic retaining screws
and remove the under panel cover.
4. Disconnect the rear back up lamp
connector (A).
5. Remove the socket (A) from the
assembly by turning the socket coun
-
terclockwise until the tabs on the
socket align with the slots on the
assembly.
