INSTRUMENT PANEL AND CONTROLS 4-3

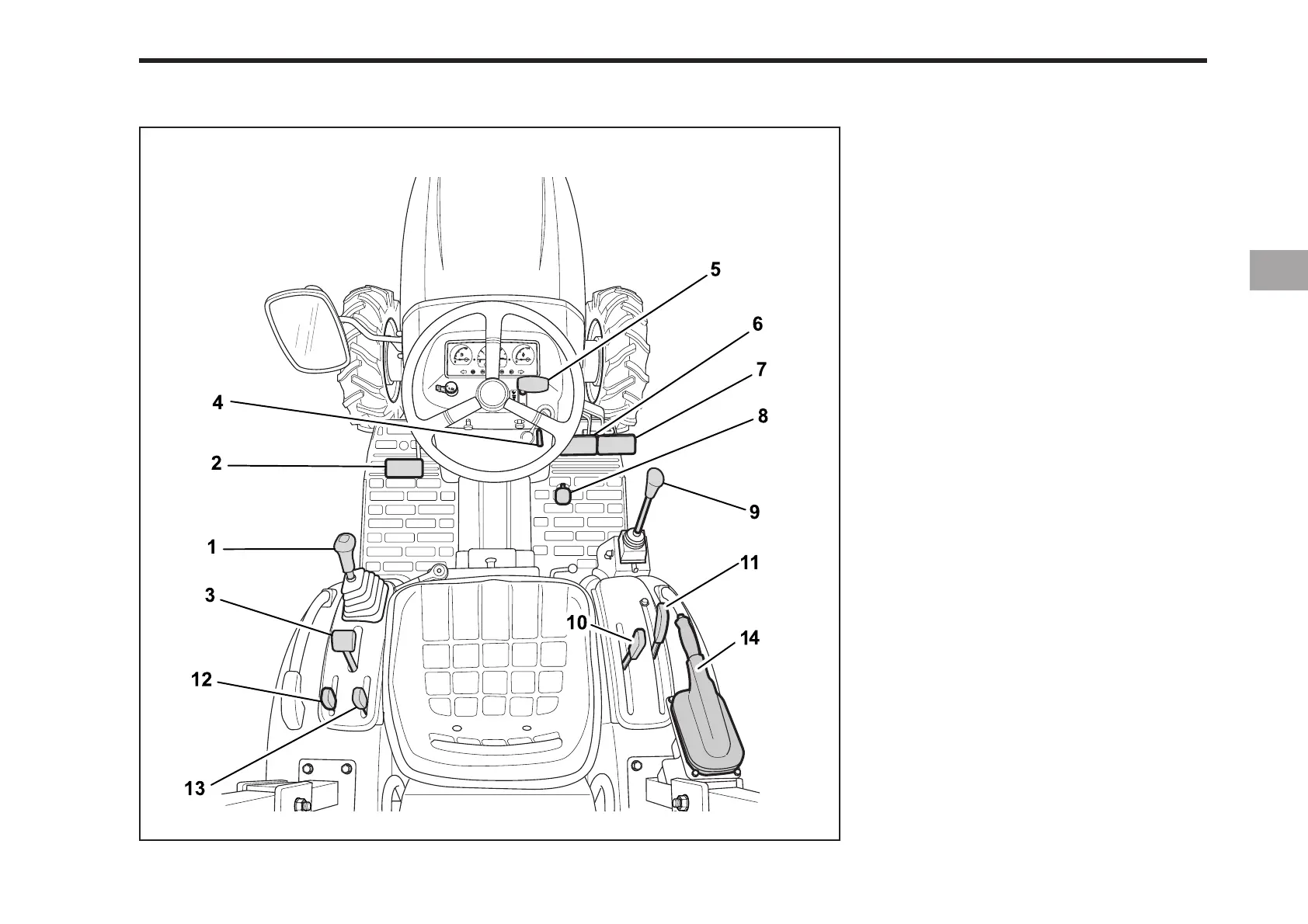

FOOT AND HAND CONTROLS
196O404B
CK20
(1) Shuttle Shift Lever
(2) Clutch Pedal
(3) Hi-Lo Shift Lever
(4) Parking Brake Lock Lever
(5) Hand Throttle
(6) Brake Pedal (L)
(7) Brake Pedal (R)
(8) Foot Throttle (M)
(9) Joystick Lever
(10) Double Acting Lever (A, B)
(11) Hydraulic Control Lever
(12) Mid P.T.O Shaft Lever
(13) Rear P.T.O Shaft Lever
(14) Handbrake(only EU)
NOTE : The rearview mirror and the seat
are only for the EU spec.

Kioti CK20 Specifications

General

Engine Type	Diesel
Transmission	Hydrostatic
Drive	4WD
Hydraulic Remotes	1
3-Point Hitch	Category 1
Fuel Capacity	6.6 gal
